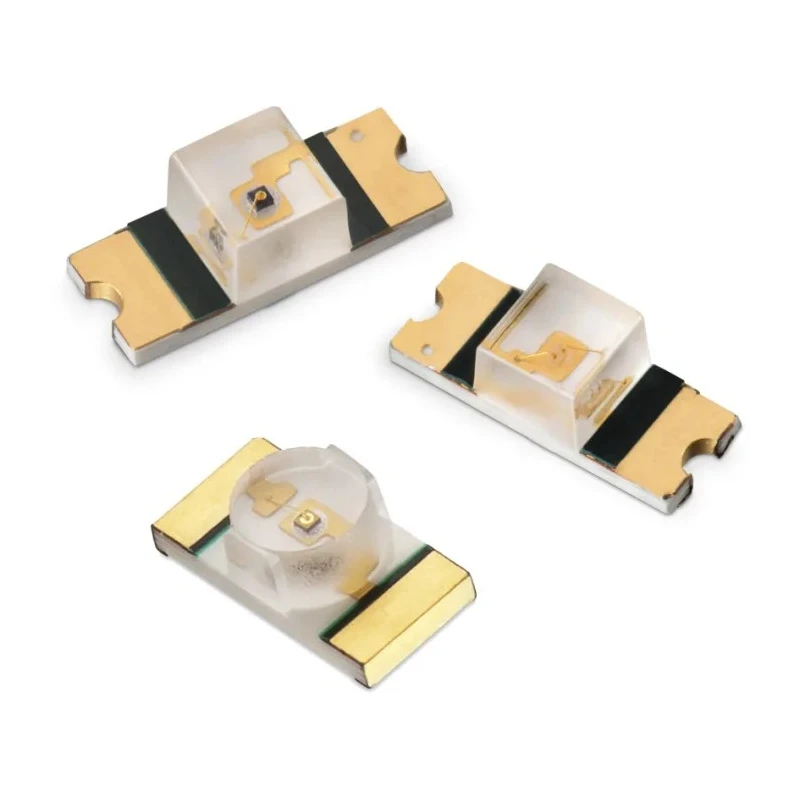

Wurth Elektronik 2.4 V Green LED 3216 Surface Mount Dome Lens WL-SMRW 156120VS82500

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik 2.4 V Green LED 3216 Surface Mount Dome Lens WL-SMRW 156120VS82500

Name: Wurth Elektronik 2.4 V Green LED 3216 Surface Mount Dome Lens WL-SMRW 156120VS82500
Brand: Wurth Elektronik
SKU: 153035
Price: 0.34 USD
Availability: InStock



Category LED - Light Emitting Diodes Brand Wurth Elektronik Condition New

Specifications

Country of Origin	Taiwan
Brand	Wurth Elektronik
Model	156120VS82500
Packaging	Tape & Reel
Mount Type	Surface
Series	WL-SMRW
Maximum forward current	40mA
Viewing angle	20 °
Package Type	3216
Standards/Approvals	RoHS
LED Colour	Green
Dominant Wavelength	573nm
Forward Voltage	2.4V
Number of Pins	2
LED Luminosity	1050 mcd
Maximum Power Dissipation	48mW
Lens Dimensions	3.2 x 1.6 x 1.85 mm
Lens Shape	Dome

Key Features

Maximum forward current of 40 mA ensures reliable performance.
High brightness with LED luminosity of 1050 mcd.
Compact dome lens with dimensions 3.2 x 1.6 x 1.85 mm.
Narrow viewing angle of 20 degrees for focused light emission.
Low power dissipation at 48 mW for energy efficiency.
Clear lens finish to provide bright and uniform light output.
Surface mount package compatible with automated assembly processes.
RoHS compliant for environmentally safe operation.

Product Description

Wurth Elektronik 156120VS82500 is a high-performance green LED designed with a 3216 surface mount package and dome-shaped clear lens. It operates with a forward voltage of 2.4 V and supports a maximum forward current of 40 mA, offering a luminous intensity of 1050 mcd. The compact dimensions of 3.2 x 1.6 x 1.85 mm and a narrow 20° viewing angle make it ideal for space-constrained electronic designs requiring concentrated light output.

This LED features low power dissipation of only 48 mW, contributing to energy efficiency in various industrial and commercial applications. The clear lens finish ensures crisp and uniform illumination, suitable for indication lights and backlighting. It is manufactured to RoHS standards, guaranteeing reduced hazardous substances in electronic products.

Applications include front panel indicators, LCD backlighting, backlighting for keypads, symbols and switch buttons, messenger boards, networking and telecommunications devices, mobile devices, instrumentation, fitness wearables, audio-video equipment, and medical healthcare instruments.

The surface mount design facilitates automated mounting for high-volume production, improving assembly efficiency and product consistency. Maximum forward current rating of 40 mA. High luminous intensity of 1050 mcd. Compact package size of 3216 with dome lens shape.

Narrow 20° viewing angle for focused light. Low power dissipation of 48 mW. Clear lens finish for bright light emission. RoHS compliant production standards. Dominant wavelength at 573 nm optimized for green light. Surface mount package suitable for automated placement machinery.

This green LED from Wurth Elektronik with model 156120VS82500 is ideal for manufacturers and engineers in the electronics industry seeking a reliable indicator light component compatible with automated assembly and requiring low power consumption with high brightness. Browse more electronic components and LEDs on EnvMart for your project needs.

Explore more products in our LED - Light Emitting Diodes category.
