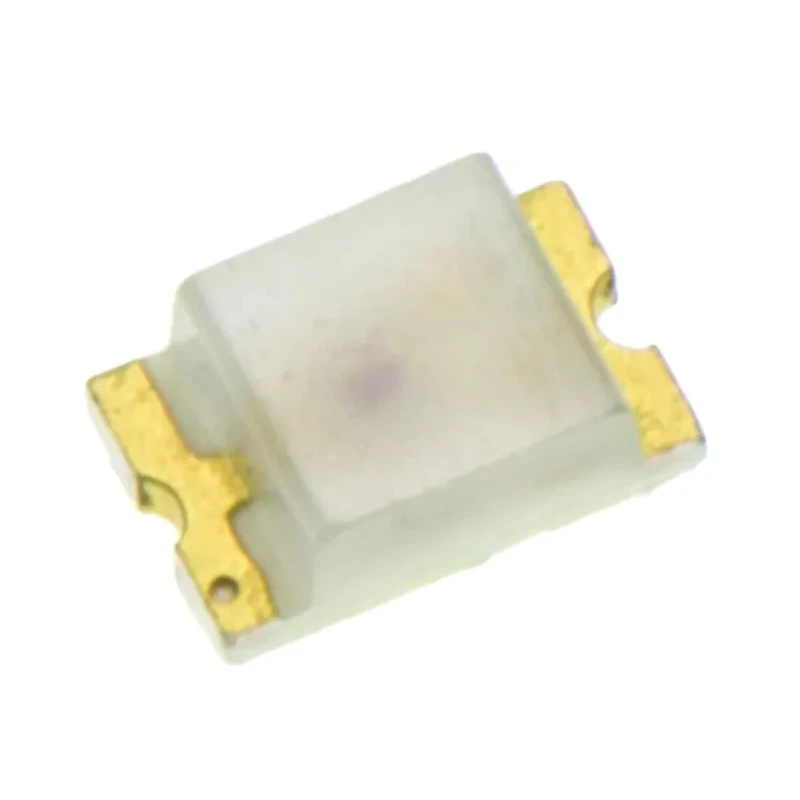

Broadcom 2.2 V Orange LED 0805 Surface Chip LED HSMD-C170

Name: Broadcom 2.2 V Orange LED 0805 Surface Chip LED HSMD-C170
Brand: Broadcom
SKU: 121858
Price: 0.11 USD
Availability: InStock



Category LED - Light Emitting Diodes Brand Broadcom Condition New

Specifications

Country of Origin	India
Brand	Broadcom
Model	HSMD-C170
Packaging	Tape & Reel
Mount Type	Surface
Series	Chip LED
Maximum forward current	20mA
Viewing angle	170 °
Package Type	0805
Standards/Approvals	RoHS
LED Colour	Orange
Dominant Wavelength	604nm
Forward Voltage	2.2V
Number of Pins	2
LED Luminosity	8 mcd
Maximum Power Dissipation	52mW
Lens Dimensions	2 x 1.25 x 0.8 mm
Lens Shape	Rectangular
Lens Finish	Diffused

Key Features

The 0805 package size ensures compatibility with standard surface mount technology.
Operating forward current up to 20 mA delivers efficient power usage.
Features a forward voltage of 2.2 V suitable for low voltage circuits.
Offers an 8 millicandela luminous intensity with orange color emission.
Lens dimensions are 2 x 1.25 x 0.8 mm with a rectangular shape and diffused finish.
Viewing angle of 170 degrees enhances visibility across applications.
RoHS compliant with operating temperature range from -40°C to +85°C.
Ideal for keypad backlighting, push button illumination, LCD backlighting, symbol indicators, and front panel status lights.

Product Description

Broadcom HSMD-C170 2.2 V Orange LED 0805 Surface Chip LED is a surface mount device designed for efficient lighting applications requiring compact footprint and bright, uniform illumination. This LED chip features industry-standard 0805 size with a profile height of 0.8 mm, allowing it to fit easily in space-constrained electronic assemblies.

It operates with a forward current maximum of 20 mA and forward voltage of 2.2 V, delivering reliable performance and energy efficiency. The LED emits an orange light with a luminous intensity of 8 mcd and a dominant wavelength of 604 nm, providing visually appealing indication with excellent brightness.

The rectangular-shaped lens has dimensions of 2 x 1.25 x 0.8 mm and features a diffused finish that helps reduce glare and produces a soft light output. With a wide 170° viewing angle, it ensures visibility from multiple directions, making it suitable for user interfaces and indicator applications.

The HSMD-C170 is RoHS compliant and maintains stable operation within an ambient temperature range of -40°C to +85°C, ensuring durability in various industrial and commercial environments.

Compact and industry-standard 0805 package size. Forward current rating of 20 mA and forward voltage of 2.2 V. Orange LED color with 8 mcd luminous intensity and 604 nm wavelength. Rectangular diffused lens dimensioned 2 x 1.25 x 0.8 mm with a 170° viewing angle.

RoHS compliant and wide operating temperature range (-40°C to +85°C). Suitable for keypad, push button, LCD backlighting, and front panel indicators.

This product is an ideal choice for electronic design engineers requiring high-quality, reliable LED indication and backlighting components in electronic devices, display panels, and control interfaces. Leveraging Broadcom's advanced semiconductor technologies, the HSMD-C170 offers high luminous efficiency, excellent optical performance, and robust reliability for industrial, commercial, and consumer electronics applications.
