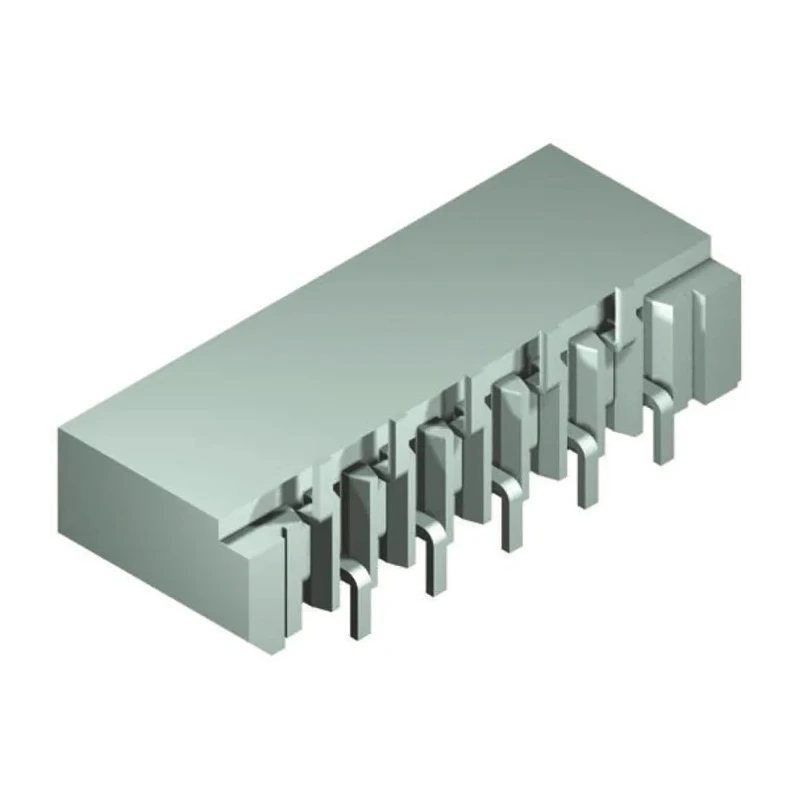

Molex 1 mm Pitch 10 Way Straight Female FPC Connector Solder 52808-1070

Molex 52808-1070 is a 10 Way Straight Female FPC Connector with a pitch of 1 mm, designed for surface mount technology (SMT) applications. Featuring phosphor bronze contacts plated with tin bismuth over nickel, this connector offers robust electrical performance with current rating of 500 mA and voltage rating of 125 V ac.

The connector housing is constructed from polysulfone, providing durability and allowing chamfered housings for correct orientation during assembly. The non-ZIF insertion force design allows for secure contact retention while enabling easy insertion and removal of FPC cables.

This FPC connector includes a locking mechanism for secure interface and has a single row layout with 10 contacts, arranged straight to facilitate straightforward soldering to PCBs. The staggered contact design enhances soldering ease and electrical reliability.

It is ideally suited for a variety of industrial and commercial applications including automotive navigation systems, consumer electronics like digital cameras, medical equipment such as patient monitors, communication devices including smartphones, tablets, and GPS units.

Non-ZIF insertion force design provides secure, reliable contact retention. Phosphor bronze contacts with tin bismuth plating ensure excellent conductivity and corrosion resistance. Durable polysulfone housing with chamfered corners for proper orientation.

Rated for 125 V ac voltage and 500 mA current, supporting various signal and data applications. Locking mechanism enhances connector stability during device operation. Wide operating temperature range from -20°C to 80°C suitable for diverse environments.

Compact single-row, 10 contact straight configuration eases PCB integration and assembly.

This connector series from Molex is widely used in electronics manufacturing for creating compact, high-density, and reliable cable connections. It supports compact wiring harnesses essential in modern automotive and consumer device designs.
