Molex 1 mm Pitch 12 Way Straight Female FPC Connector, Solder 52808-1270

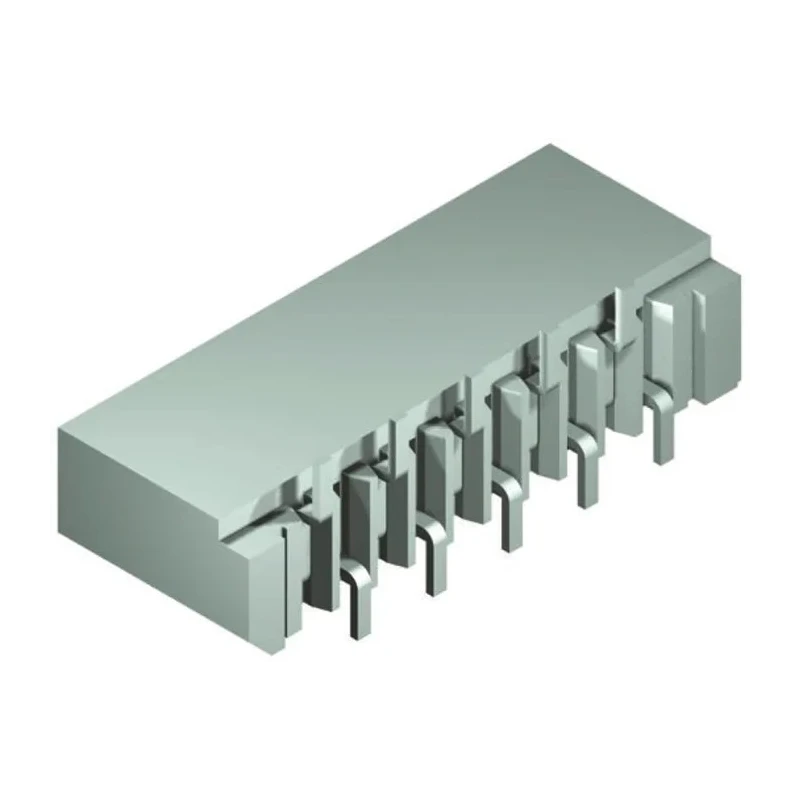

Molex 52808-1270 is a 1 mm pitch 12 way straight female FPC connector designed for surface mount technology (SMT) with solder termination.

The contacts are made of phosphor bronze with tin bismuth over nickel plating to ensure excellent conductivity and resistance to corrosion. The polysulfone housing is chamfered to guarantee the correct orientation of FPC cables, enhancing ease of installation and secure locking during operation.

Rated for a current capacity of 500mA and voltage up to 125V AC, this connector performs reliably within the temperature range of -20°C to 80°C. Its staggered contact design simplifies soldering on PCB and maintains secure contact retention even when cables are pulled or moved.

Ideal for industrial, automotive navigation and audio systems, consumer electronics, datacommunications, medical instruments, mobile phones, GPS devices, tablets, and notebooks, this connector supports high-density flat flexible cable interconnections in demanding environments.

Features include a space-saving design, movable contacts for secure retention, and a locking mechanism for cable stability. This product does not hold specific certifications but complies with industrial standards for electronic connectors.

The connector offers a compact 1 mm pitch with 12 contacts for precision connections. Phosphor bronze contact material with tin bismuth over nickel plating for durability. Non-ZIF insertion force and locking mechanism for secure connectivity.

Polysulfone housing with chamfered corners to ensure correct cable orientation. Supports operation between -20°C and 80°C in various industrial and commercial applications.

This Molex 52808-1270 FPC Connector is a reliable choice for manufacturers and engineers requiring robust, space-efficient, and easy-to-install connectors for a range of signal and data applications. Browse EnvMart for more Molex connectors and related electronic components.
