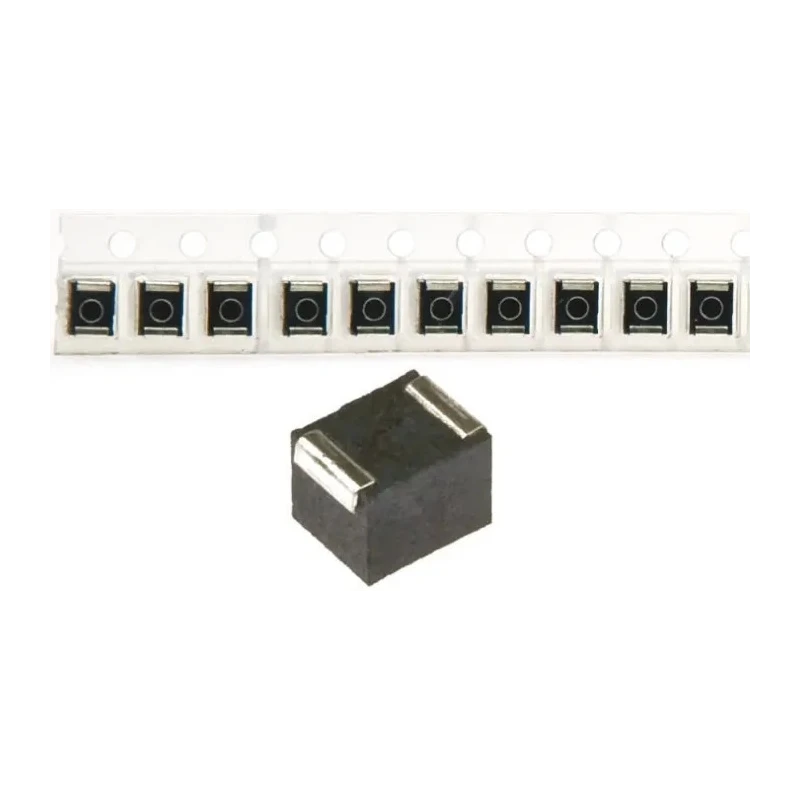

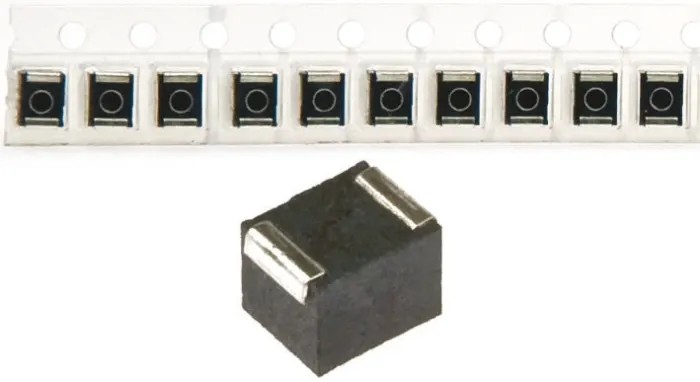

TDK 1210 Shielded Wirewound Surface Mount Inductor with Ferrite Core 330 μH ±5% 40 mA Idc Q:20 NLV32T-331J-PF
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | TDK |
| Height | 2.2mm |
| Length | 3.2mm |
| Model | NLV32T-331J-PF |
| Depth | 2.5mm |
| Series | NLV-PF |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 330μH |
| Standards/Approvals | RoHS |
| Package/Case | 1210 |
| Maximum DC Current | 40mA |
| Pin Count | 2 |
| Maximum DC Resistance | 34Ω |
| Inductance Tolerance | ±5 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 5MHz |
| Minimum Quality Factor | 20 |
| Inductor Construction | Wirewound |
| Applications include | TVs, VCRs, digital cameras, xDSL, car audio, ECU systems, HDDs, etc |
Key Features
- Features a ferrite core for enhanced magnetic properties.
- Constructed as a wirewound inductor with a shielded design to reduce electromagnetic interference.

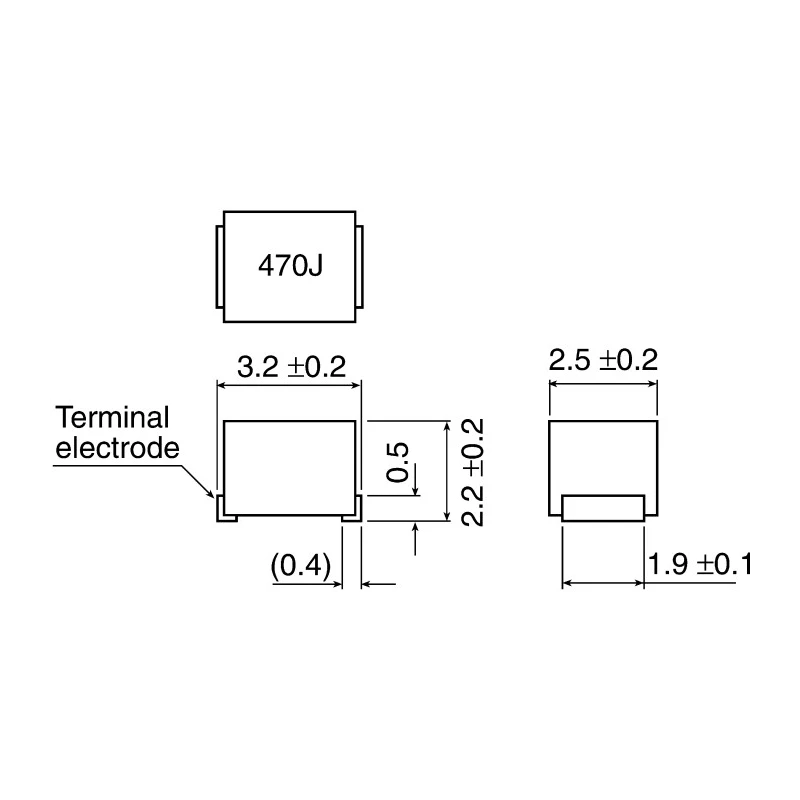

- Compact 1210 package size with dimensions 3.2 mm by 2.5 mm by 2.2 mm.
- High quality factor (Q) of 20 ensures efficient frequency response.
- Operates reliably between -40°C and 105°C, suitable for harsh environments.
- Maximum DC resistance is 34 Ω, maintaining low power loss during operation.
- Surface mount termination style suitable for automated PCB assembly.
- RoHS compliant and molded construction for durability.
Product Description
TDK NLV32T-331J-PF is a 1210 size shielded wirewound Surface Mount Inductor with a ferrite core, offering an inductance value of 330 μH with a ±5% tolerance. Designed for high-performance electronic applications, it supports a maximum DC current of 40 mA and features a high quality factor of 20 which ensures sharp frequency response and efficient signal processing.
This inductor is constructed with a wirewound design and a shielded package to minimize electromagnetic interference, enhancing circuit stability and function. The compact physical dimensions of 3.2 mm length, 2.5 mm depth, and 2.2 mm height allow easy integration on compact PCBs.
It operates across a wide temperature range from -40°C to +105°C, making it suitable for industrial and consumer electronics exposed to varying environmental conditions. The inductor exhibits a maximum DC resistance of 34 Ω, indicating excellent energy efficiency during operation.
The surface mount termination style facilitates automated assembly processes, optimizing production efficiency. This product complies with RoHS standards, ensuring it meets environmental safety requirements, and includes molded protection for durability.
Typical applications for this inductor include televisions, VCRs, digital cameras, xDSL modems, car audio systems, engine control units (ECU), and hard disk drives (HDD). Its versatile performance characteristics make it suitable for many precision electronic designs requiring stable inductance and low noise.
Features a ferrite core for enhanced magnetic properties. Constructed as a wirewound inductor with shielded design to reduce EMI. Compact 1210 package size with dimensions 3.2mm by 2.5mm by 2.2mm. High quality factor (Q) of 20 ensures efficient frequency response.
Wide operating temperature range from -40°C to 105°C. Low maximum DC resistance of 34 Ω for energy efficiency. Surface mount style termination for automated PCB assembly. RoHS compliant and molded construction for robustness.
Applications in TVs, VCRs, digital cameras, xDSL, car audio, ECU systems, and HDDs. Explore our Electronics Components category for more reliable TDK inductors and passive electronic components tailored for various industrial and consumer applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 330 μH with a tolerance of ±5%.
It supports a maximum DC current of 40 mA.
The dimensions are 3.2 mm in length, 2.5 mm in depth, and 2.2 mm in height.
It operates reliably between -40°C and 105°C.
The maximum DC resistance is 34 Ω.
The inductor has a minimum quality factor of 20.
It features a ferrite core, which enhances its magnetic properties.
This model uses a surface mount termination style, suitable for automated PCB assembly.
Typical applications include TVs, VCRs, digital cameras, xDSL modems, car audio systems, engine control units (ECU), and hard disk drives (HDD).
The maximum self-resonant frequency is 5 MHz.
Yes, this inductor is RoHS compliant, ensuring it meets environmental safety requirements.
It is constructed as a wirewound inductor with a shielded design to reduce electromagnetic interference.
