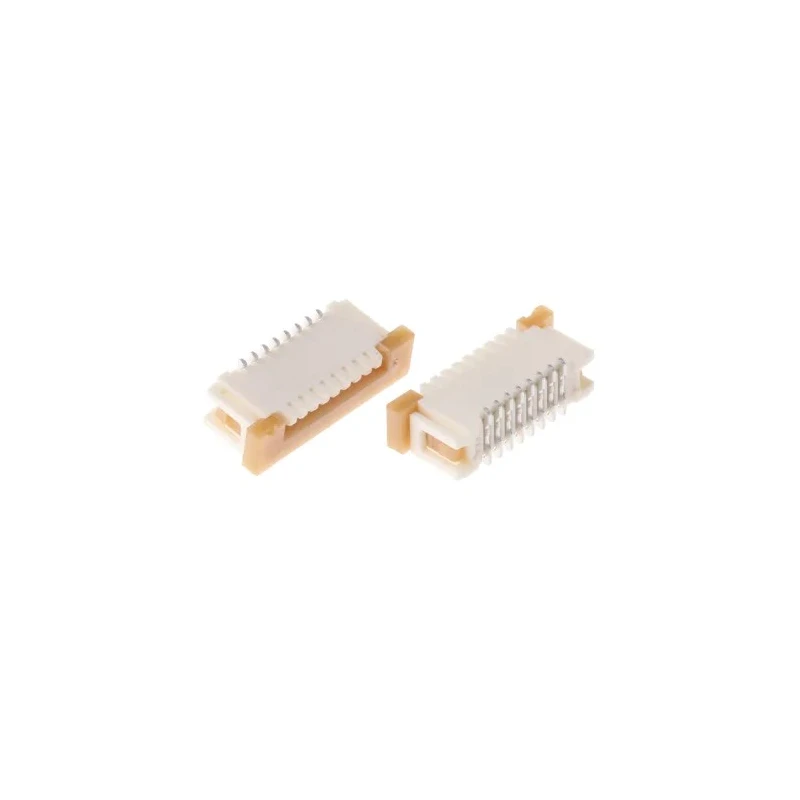

Molex 1 mm Pitch 8 Way Straight Female FPC Connector Solder 52610-0872
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125, 125V ac |
| Brand | Molex |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | 52610 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 8 |
| Contact Gender | Female |
| Connector Gender | Female |
| Contact Position | Vertical |
Key Features
- Features 8 contacts with a 1 mm pitch suitable for compact electronic designs.
- Utilizes Easy-On FFC/FPC connector type with phosphor bronze contact material.
- Supports a current rating of 1A and an operating voltage up to 125 V AC.
- Equipped with a slide type locking mechanism for secure FPC retention and easy insertion.
- Constructed with a nylon housing and gold over nickel plated contacts for durability.
- Vertical contact position and straight orientation with one row of contacts.
- Designed for operating temperatures ranging from -40°C to 85°C.
- Ideal for automotive, consumer electronics, medical devices, and datacommunications applications.
Product Description
Molex 52610-0872 is a 1 mm pitch, 8 way straight female FPC connector designed for reliable surface mount connections with solder termination. This Easy-On ZIF (Zero Insertion Force) type connector features a slide type actuator ensuring easy insertion and secure FPC connection. The vertical contact position and straight orientation facilitate compact layouts in tight packaging environments while maintaining strong electrical contacts.
Constructed with phosphor bronze contacts plated in gold over nickel and housed in durable nylon, this connector supports a current of 1A and an operating voltage of up to 125 V AC, suitable for a wide range of electronic applications. It operates reliably within a temperature range from -40°C to 85°C, making it ideal for use in automotive, consumer electronics, datacommunications, medical instrumentation, and mobile devices.
The connector employs a locking mechanism to maintain secure contact retention between the FPC and connector terminals. Its design ensures minimal wear during multiple insertion cycles, enhancing long-term reliability and performance. The solder tabs provide secure retention on PCBs and strain relief for solder tail joints, especially in right angle variants.
Features 8 contacts with 1 mm pitch for compact applications. Utilizes a slide actuator for easy and secure FPC connection. Contacts made of phosphor bronze with gold over nickel plating for corrosion resistance. Nylon housing ensures durability and insulation.
Rated for 1A current and 125 V AC voltage. Operating temperature range from -40°C to 85°C for diverse environments. Surface mount with solder termination suitable for PCB assembly. Ideal for automotive, consumer electronics, medical devices, and datacommunications.
For engineers and manufacturers seeking a reliable and space-efficient FPC Connector, the Molex 52610-0872 series provides proven performance and ease of assembly. Explore more Molex connectors and related components in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Molex 1 mm Pitch 8 Way Straight Female FPC Connector supports a current rating of 1A.
This connector is rated for an operating voltage of up to 125 V AC.
It features a nylon housing and phosphor bronze contacts that are plated with gold over nickel for corrosion resistance.
The contacts have a pitch size of 1 mm, suitable for compact electronic designs.
This connector operates reliably within a temperature range of -40°C to 85°C.
It has a total of 8 contacts arranged in a single row.
The connector utilizes solder termination for secure connections on PCBs.
The contacts are in a vertical position with a straight orientation.
It features a slide type locking mechanism that ensures secure FPC retention and easy insertion.
It is ideal for use in automotive, consumer electronics, medical devices, and datacommunications applications.
The connector gender is female, designed to connect with a corresponding male connector.
The country of origin for this connector is India.
