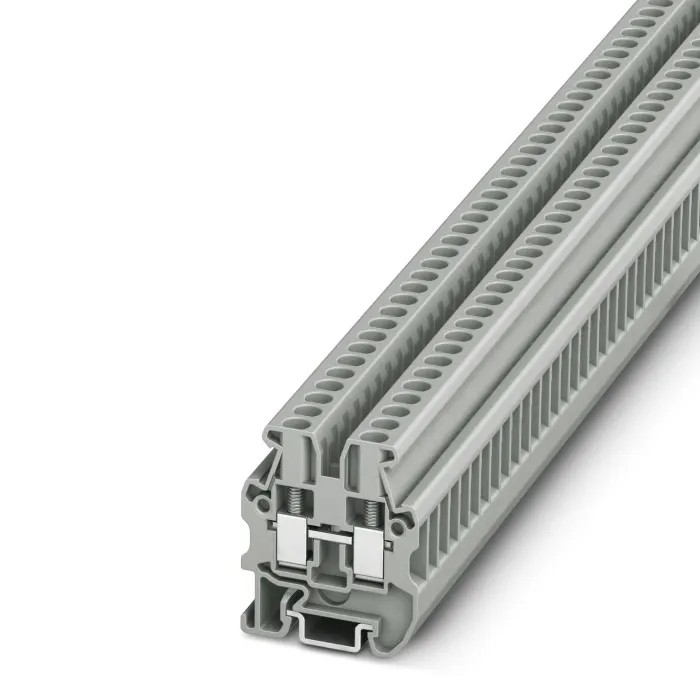

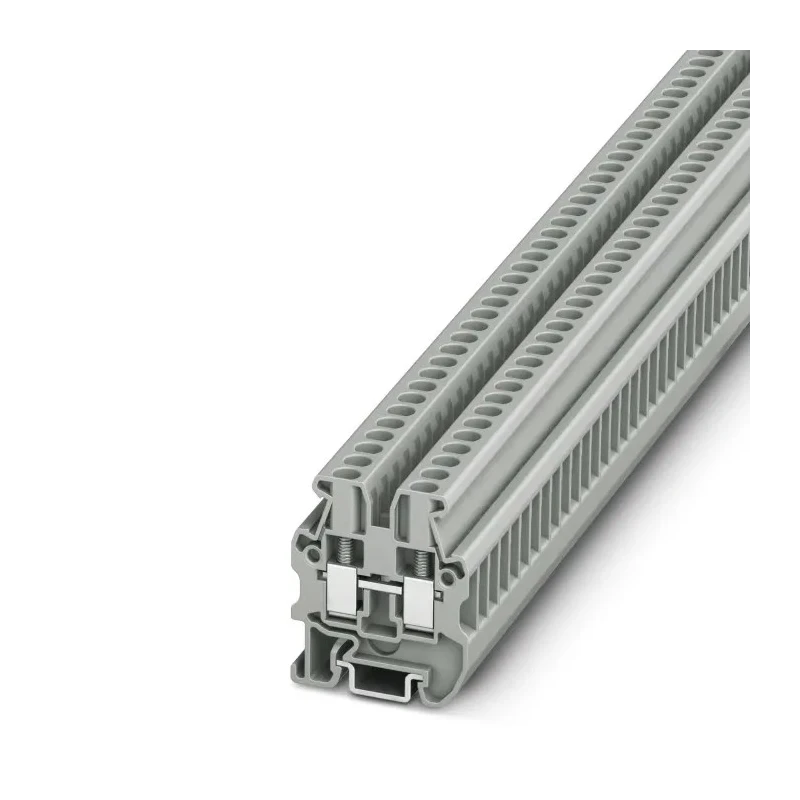

Phoenix Contact MUT 2.5 Series Feed Through Terminal Block 2.5mm², 1-Level, Screw Termination, IECEx/ATEX, Grey 3248030
Specifications
| Country of Origin | Turkey |
|---|---|
| Voltage | 500V |
| Brand | Phoenix Contact |
| Colour | Grey |
| Model | 3248030 |
| Series | MUT 2.5 |
| Termination Type | Screw |
| Maximum Operating Temperature | 110°C |
| Number of Levels | 1 |
| Minimum Operating Temperature | -60°C |
| Hazardous Area Certification | IECEx/ATEX |
| Standards/Approvals | IEC |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 12AWG |
| Cable CSA | 2.5mm² |
| Terminal Block Current | 24A |
| Phoenix Contact 1413010 MBK 3 Series Grey, Single-Level, Screw TerminationBrand | Phoenix Contact |
Key Features
- Compact grey polyamide housing ensuring electrical insulation and safety.
- Supports conductor cross-sectional areas from 0.2mm² to 4mm² for versatility.
- Rated for 24A current carrying capacity suitable for demanding electrical loads.
- Operates reliably within a temperature range of -60°C to 110°C for diverse environments.
- Compliant with IECEx/ATEX hazardous area certifications enhancing safety in explosive atmospheres.
- Fits a 15mm DIN rail and has a narrow width of 5.2mm for space optimization.
- Screw termination enables secure, serviceable wire connections.
- Accepts both stranded and solid conductors with effective conductor strips.
Product Description
Phoenix Contact 3248030 MUT 2.5 Series Feed Through Terminal Block is a grey, 1-level feed-through terminal block engineered for DIN rail mounting in industrial, electrical, and hazardous environment applications. Its polyamide housing provides excellent insulation to protect against overcurrents and short circuits.
With a rated voltage of 500V and a current rating of 24A, it supports wiring with conductor cross-sectional areas from 0.2mm² up to 4mm², accommodating a range of wire sizes between 24AWG and 12AWG as per industrial standards.
The narrow 5.2mm width maximizes space utilization on a 15mm DIN rail, making it ideal for compact control cabinets. Screw termination technology ensures secure and reliable electrical connections that can be easily released for maintenance or reconfiguration.
Designed with versatility in mind, this terminal block accepts both stranded and solid conductor cores via conductor strips, increasing compatibility with common wiring practices in industrial, laboratory, HVAC, manufacturing, and water treatment facilities.
Certified for use in hazardous environments with IECEx and ATEX approvals, it meets stringent safety standards. The device has passed shock tests according to EN 50155 to ensure continuous reliable operation in vibration-prone applications.
Compact, insulated polyamide housing enhances safety and durability. High current rating and broad wire range ensure flexibility in electrical installations. IECEx/ATEX certification provides suitability for explosive atmospheres.
Shock tested to EN 50155 standard for system reliability. Screw termination allows fast and secure servicing and wiring changes. Optimized for small footprint mounting on 15mm DIN rails. Accommodates stranded and solid conductors for adaptable wiring.
Operates within -60°C to 110°C temperature range ensuring versatile deployment.
This Phoenix Contact MUT 2.5 terminal block is ideal for industrial automation, control systems, and electrical distribution in diverse sectors ranging from manufacturing to water treatment plants. Its reliable electrical characteristics and hazardous area certifications support safe and efficient system integration.
Explore EnvMart's extensive catalog for compatible DIN Rail Terminal Blocks and industrial electrical components designed to optimize your control cabinet infrastructure.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block has a rated current carrying capacity of 24A, making it suitable for demanding electrical loads.
It operates reliably within a temperature range of -60°C to 110°C, allowing for diverse environmental applications.
This model supports conductor cross-sectional areas from 0.2mm² to 4mm², accommodating wire sizes between 24AWG and 12AWG.
It utilizes screw termination, ensuring secure and serviceable wire connections for both stranded and solid conductors.
Yes, it is certified for use in hazardous environments with IECEx and ATEX approvals, enhancing safety in explosive atmospheres.
The terminal block has a rated voltage of 500V, making it suitable for various electrical applications.
It has a narrow width of 5.2mm, which optimizes space utilization on a 15mm DIN rail.
The terminal block features a compact grey polyamide housing that provides excellent electrical insulation and safety.
This model is designed as a 1-level terminal block, suitable for various wiring configurations.
It complies with IEC standards, ensuring it meets specific safety and performance requirements for electrical components.
It is ideal for industrial automation, control systems, and electrical distribution in sectors such as manufacturing and water treatment.
The country of origin for this terminal block is Turkey.
