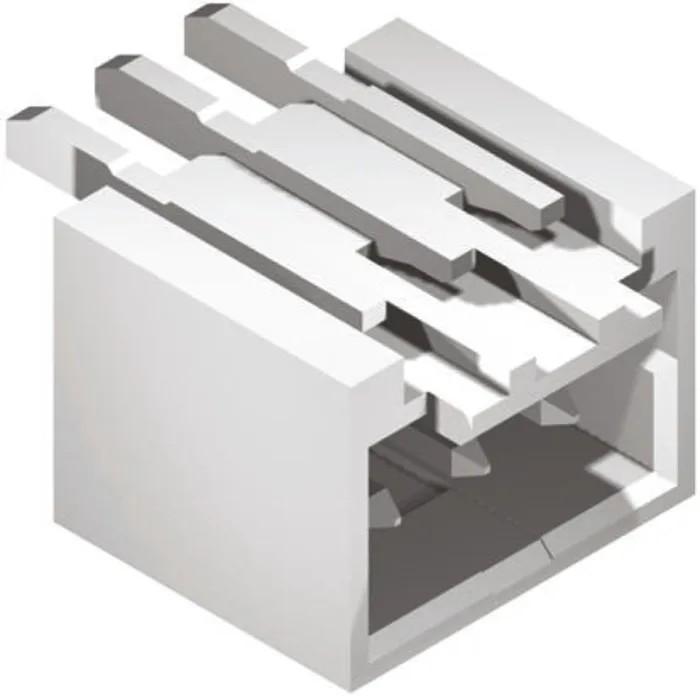

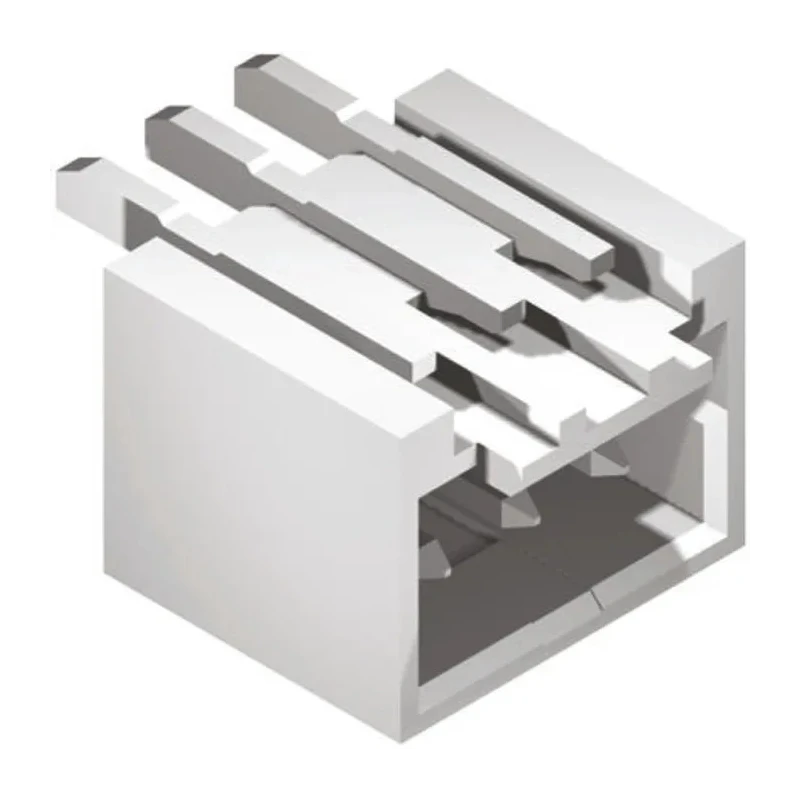

Molex Pico-SPOX Series Right Angle Surface PCB Header, 9 Contacts, 1.5 mm Pitch, 1 Row, Shrouded 87438-0943
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 3A |
| Mount Type | Surface |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | Pico-SPOX |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 1.5mm |
| Contact Plating | Tin |
| Number of Contacts | 9 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Compact 1.5 mm pitch suitable for tight packaging applications.
- Rated for 3A maximum current using AWG #24 wires.
- Single row with 9 male contacts and tin-plated brass material.
- Thermoplastic housing for durability and high temperature resistance.
- Right angle orientation for surface PCB mount installations.
- Operating temperature range from -55°C to 105°C.
- Shrouded connector system ensuring secure wire-to-board connection.
- Solder termination type for robust electronic assembly.
Product Description
Molex 87438-0943 Pico-SPOX Series Right Angle Surface PCB Header is a high-quality 1-row PCB header featuring 9 male contacts arranged with a compact 1.5 mm pitch. Designed for wire-to-board applications, this connector offers a shrouded, right angle configuration for enhanced reliability and space-saving on PCB layouts.
The connector system incorporates brass contacts with tin plating, providing excellent conductivity and corrosion resistance. The thermoplastic housing material ensures structural integrity while allowing operation across a broad temperature range from -55°C to 105°C. Rated for a maximum current of 3A using AWG #24 wires, it supports industrial, electronic, and control applications requiring robust, surface-mounted PCB connectors.
This right angle surface mount header operates at voltages up to 350V, making it suitable for a wide range of low to medium power electronic and electrical systems. The solder termination type allows for permanent and secure assembly in manufacturing and repair contexts.
The product does not carry explicit certifications but meets typical industrial connector standards for electrical ratings and mechanical durability. It mates typically with Molex 87439 Series housings, facilitating modular system integration.
Compact 1.5 mm pitch housing optimized for tight spacing. Nine male brass contacts with reliable tin plating for enhanced conductivity. Thermoplastic housing designed for high temperature tolerance and mechanical strength.
Right angle design for efficient PCB surface mounting and layout flexibility. Operational temperature range of -55°C to 105°C suits harsh environments. Current rating of 3A compatible with AWG #24 wiring standards. Voltage rating up to 350V supports versatile electronic configurations.
Shrouded wiring system enhances connection security and protection. Solder type termination ensures strong assembly bonding.
This connector is ideal for electronics manufacturing, industrial control systems, and telecommunications equipment. It provides a dependable wire-to-board interface in compact spaces demanding efficient electrical performance. Explore more PCB connectors and components in EnvMart’s extensive catalog for electronics assembly and repair solutions.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this model is 3A when using AWG #24 wires.
This unit has a voltage rating of up to 350V, making it suitable for various low to medium power electronic applications.
The contacts in this connector are arranged with a compact pitch of 1.5 mm.
It operates within a temperature range of -55°C to 105°C, suitable for harsh environments.
This connector features 9 male contacts.
The housing is made of thermoplastic, which provides durability and high temperature resistance.
It uses a solder termination type, ensuring a secure and permanent assembly.
Yes, this PCB header is designed for surface mounting applications with a right angle orientation.
This model utilizes a wire-to-board connector system, enhancing the reliability of the connection.
The contacts are made of brass and are tin-plated for improved conductivity and corrosion resistance.
Yes, it is suitable for various applications, including electronics manufacturing, industrial control systems, and telecommunications equipment.
This header features a right angle orientation, which is beneficial for space-saving on PCB layouts.
