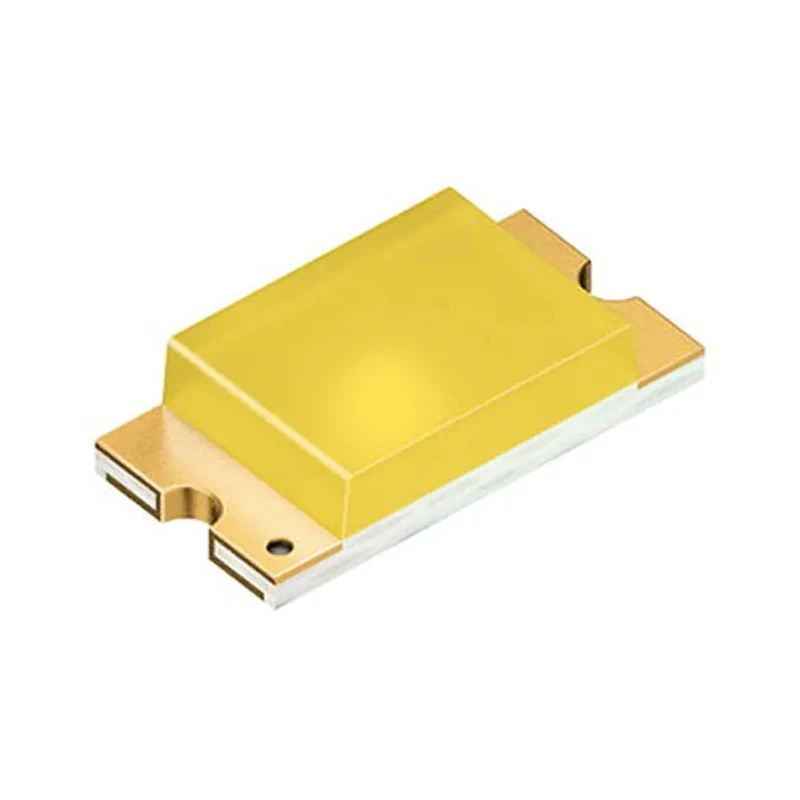

ams OSRAM 3.1 V White LED 0603 Surface CHIP LED 0603 LW Q38E-Q2OO-3K5L-1

The ams OSRAM LW Q38E-Q2OO-3K5L-1 is a high-quality white LED designed in the standard 0603 surface mount CHIP LED package. Operating at a forward voltage of 3.1 V, this LED delivers reliable and efficient illumination suitable for numerous applications.

This product features a compact rectangular lens with dimensions of 0.9 x 1.7 x 0.4 mm that is diffused for optimal light distribution. The LED beam has a viewing angle between 130° and 150°, making it ideal for display backlighting, indicator lights, and narrow distance display applications.

With a maximum forward current of 15 mA, the LED generates a luminous flux ranging from 300 to 480 millilumens and a luminous intensity of 90 to 180 millicandelas. The colour temperature is rated at 8200 K, producing a crisp white light with an 80% Colour Rendering Index (CRI) for accurate colour representation.

This component is packaged in tape & reel format to streamline automated PCB assembly, and it includes two pins for surface mounting. It conforms to IEC 62471:2008 standards ensuring photobiological safety. The LED is produced in Taiwan, Province Of China.

The ams OSRAM CHIPLED 0603 series is optimized for various applications including key and LCD backlighting, eraser arrays, narrow distance displays, and indicator lights for external modems or electronic devices. Its compact form factor and industry-standard dimensions (1.6 x 0.8 mm) make it compatible with many designs.

This LED features a compact 0603 package type suitable for surface mounting. It emits white light with a colour temperature of 8200k for crisp illumination. The LED supports a maximum forward current of 15 mA for reliable operation.

Viewing angle ranges from 130 to 150 degrees allowing broad light dispersion. The lens is diffused and rectangular, dimensions 0.9 x 1.7 x 0.4 mm enhancing light diffusion. It has a luminous flux of 300 to 480 mlm and luminous intensity between 90 to 180 mcd.

Colour Rendering Index (CRI) is 80%, providing good colour accuracy. The LED has 2 pins and comes in tape & reel packaging for efficient assembly. Explore the Electronics & Electricals category at EnvMart for a wide range of LEDs and electronic components suitable for industrial, commercial, and laboratory use.
