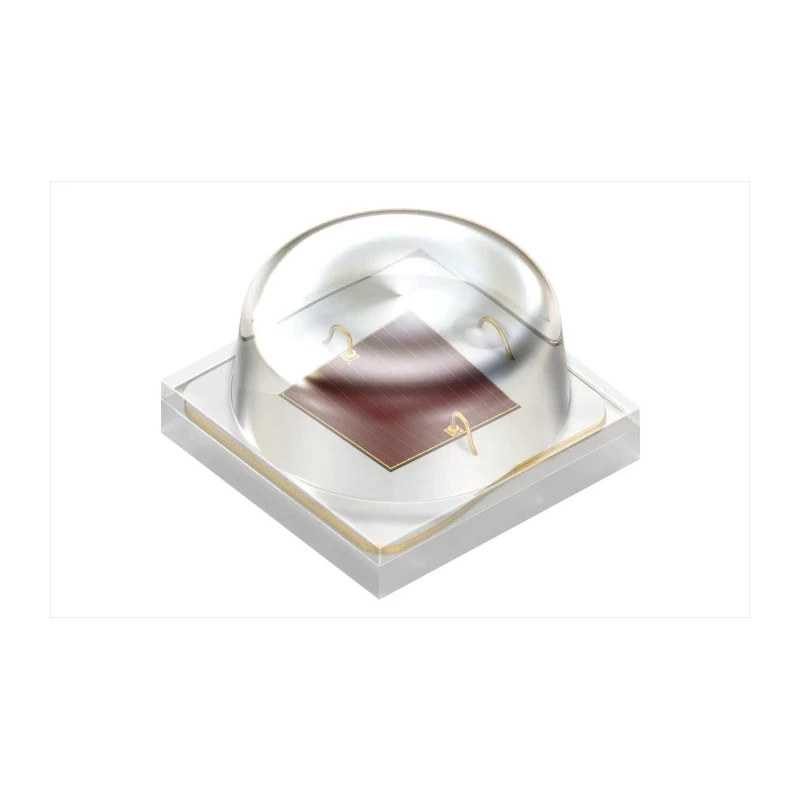

ams OSRAM 1.8 V Hyper Red High Power SMT Ceramic Surface Mount LED OSLON Square GH CSBRM4.24-V6V9-1-1-700-R33

ams OSRAM GH CSBRM4.24-V6V9-1-1-700-R33 is a high power Hyper Red LED designed for industrial and commercial lighting applications requiring efficient and reliable performance. It features a compact SMT ceramic surface mount package with a silicone lens optimized for wide 140° Lambertian radiation pattern. The LED has a forward voltage of 1.8 V and can safely handle a maximum forward current of 1400 mA, delivering high radiant flux ideal for architecture, horticulture lighting, and other specialty lighting uses.

The device is built with robustness and low thermal resistance, which ensures long lifetime and exceptional reliability under demanding operating conditions. It emits light with a dominant wavelength of 640 nm, providing vivid Hyper Red color outputs with typical radiant flux values of 1045 mW at 700 mA and 530 mW at 350 mA. The radiant efficiency is remarkable, reaching 74% at 700 mA and 81% at 350 mA, making it energy efficient.

The lens has precise dimensions of 2.7 x 1.86 mm with a clear lens finish and round shape for optimal light focusing and distribution. Its ESD protection rating up to 8 kV per ANSI/ESDA/JEDEC JS-001 (HBM class 3B) helps safeguard the LED during handling and installation. Environmental safety is assured by RoHS compliance. Manufacturing origin is China.

Surface mount ceramic package for durability and thermal performance. Typical radiation angle of 120° (Lambertian emitter) for wide illumination coverage. High radiant flux suitable for horticulture and architectural lighting.

Clear silicone lens ensures light clarity and output efficiency. ESD withstand voltage of 8 kV enhances device robustness. RoHS compliant, environmentally safe component. Precise lens dimensions: 2.7 x 1.86 mm. Long lifetime and proven reliability in demanding applications.

Compact form factor allows integration in tight spaces.

This ams OSRAM LED is ideal for professionals in industrial electronics, lighting manufacturing, and specialized commercial lighting projects requiring powerful, reliable LEDs with excellent color quality and efficiency. Check EnvMart’s full ams OSRAM LED portfolio for related high-power lighting components.
