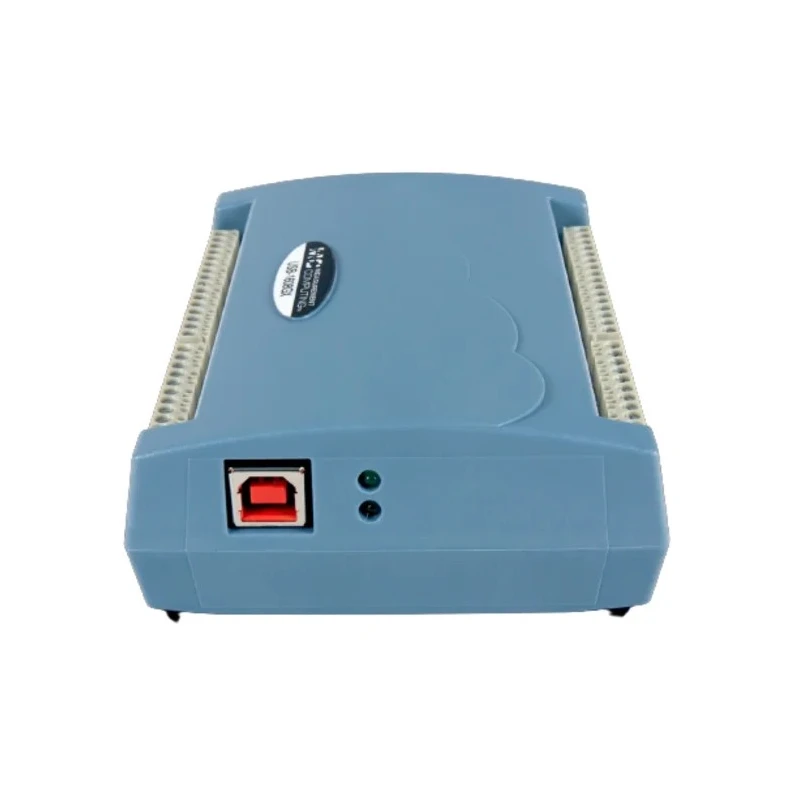

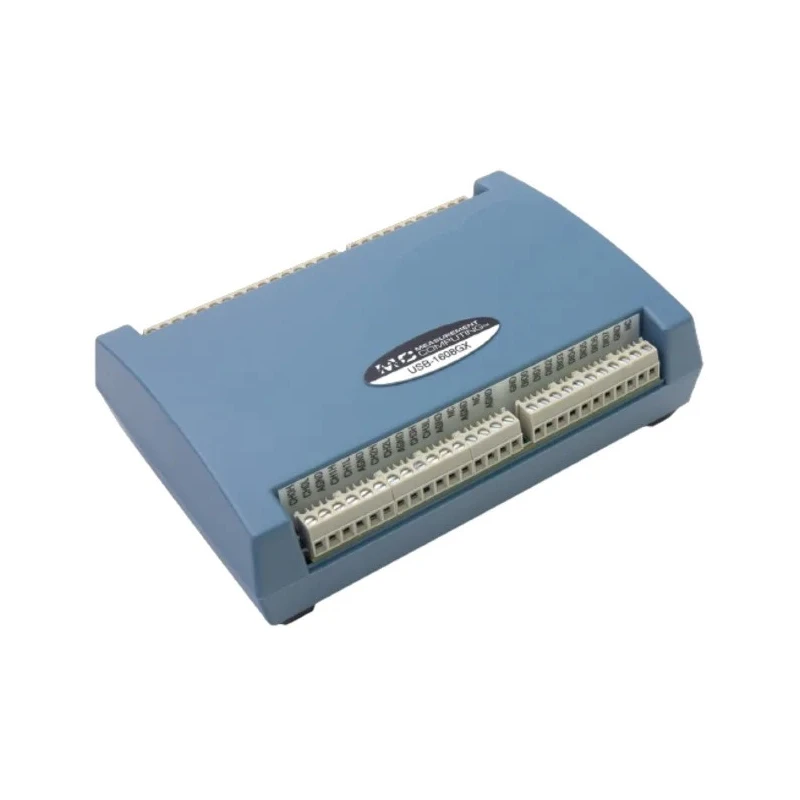

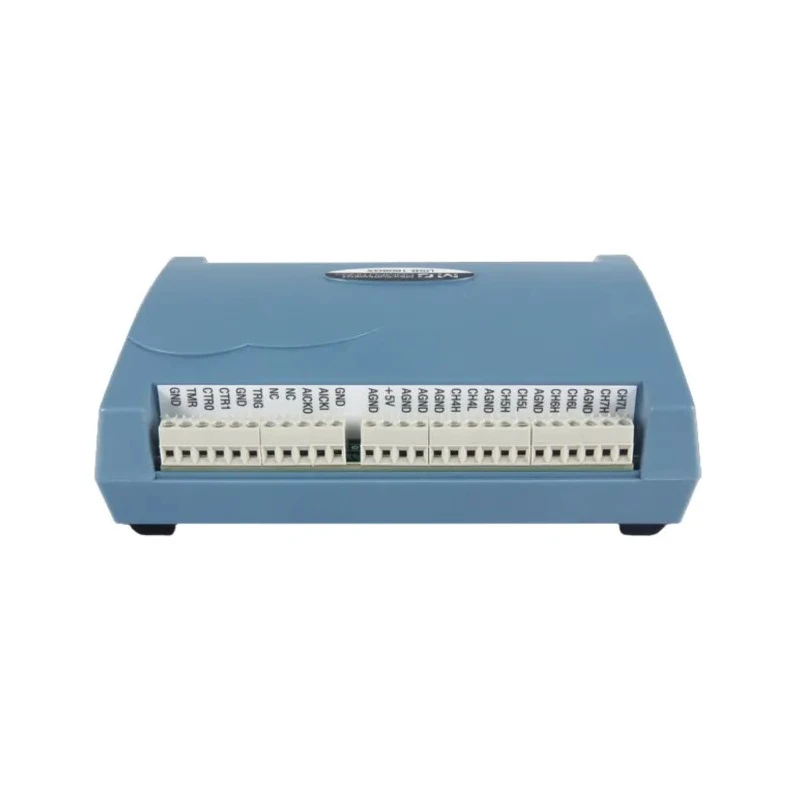

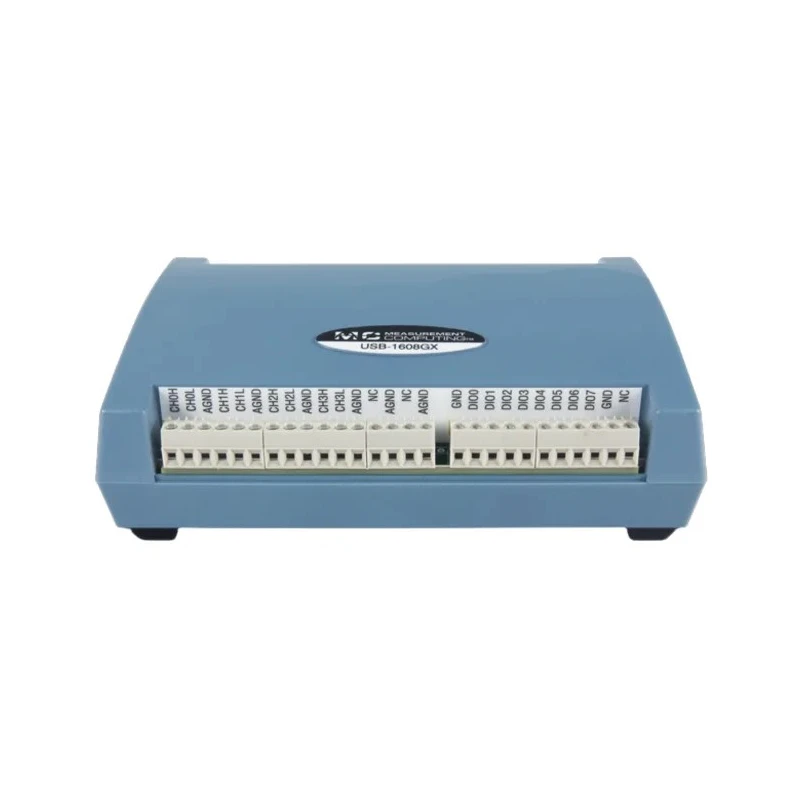

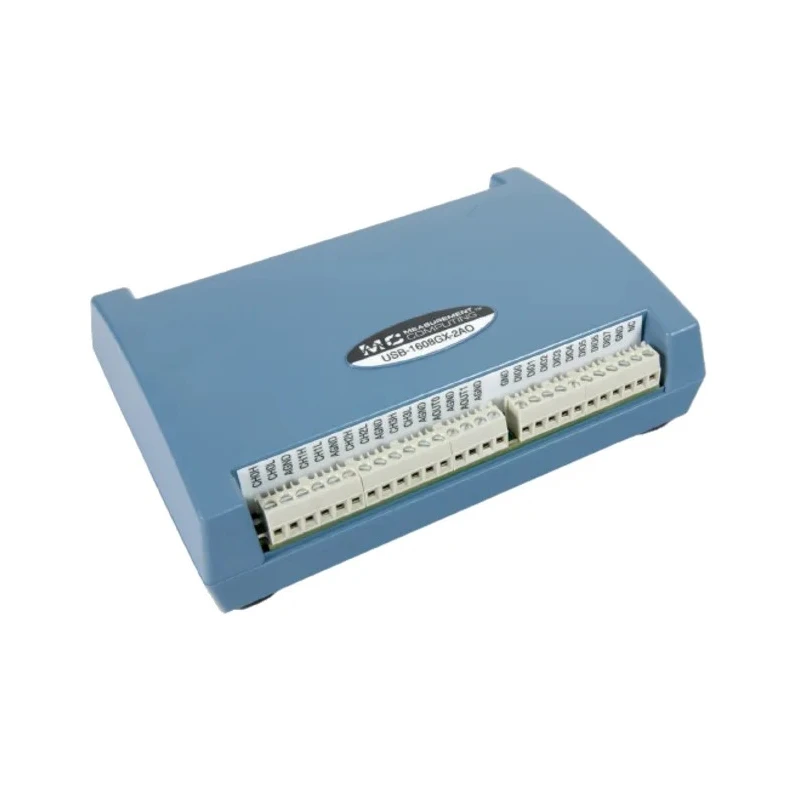

Digilent MCC USB-1608GX-2AO Data Acquisition Unit 16-Channel, USB Connectivity, 500 ksps, 16 bit 6069-410-011

Digilent 6069-410-011 is a high-performance 16-channel data acquisition (DAQ) unit delivering precise measurement and control for industrial, laboratory, and test applications. This USB-powered DAQ system provides up to 500 kilo-samples per second (ksps) data throughput at 16-bit resolution, enabling accurate real-time data acquisition and output. The device supports 16 single-ended or 8 differential analog inputs with selectable input ranges of ±10 V, ±5 V, ±2 V, and ±1 V, meeting a wide variety of signal requirements.

For analog outputs, two fixed ±10 V channels are included, expanding control capabilities. Digital I/O functionality includes eight digital lines, two 32-bit counter inputs, and one PWM timer output, making this unit versatile for counting and timing operations.

The device is powered solely via USB connection, requiring no external power supply, facilitating easy deployment and portability. With operating temperatures ranging from −55°C to 55°C, it suits harsh environmental conditions. Its compact dimensions (127 mm × 89.9 mm × 35.6 mm) make it convenient for embedded or benchtop setups.

Included with the device is Digilent’s DAQami software, providing an intuitive interface for data logging, live data visualization, and signal generation. The system supports industry standard programming environments with drivers for Visual C++, Visual C#, Visual Basic.NET, DASYLab, LabVIEW, MATLAB, Linux, and Python, ensuring seamless integration for developers and researchers.

Certifications include HTC: 8471.80.9000 and ECCN: EAR99 compliance. Supported operating systems include Windows 11, 10, 8, 7, and Vista in both 32-bit and 64-bit versions. This DAQ device is ideal for precise industrial measurement, laboratory experiments, and test and measurement workflows in manufacturing, HVAC, environmental monitoring, and academic research.

Supports data acquisition rates up to 500 kS/s for one output or 250 kS/s per channel. Features 16 single-ended or 8 differential analog input channels. Includes two analog outputs with fixed ±10 V range. Equipped with eight digital I/O channels and two 32-bit event counters.

Powered via USB, requiring no external power supply. Compatible with DAQami software for real-time data logging and signal generation. Drivers available for multiple programming languages including Visual C++, C#, VB.NET, LabVIEW, MATLAB, Linux, and Python.

Operating temperature: −55°C to 55°C for reliable performance in varied environments. Compact dimensions: 127 mm length, 89.9 mm width, and 35.6 mm height. Explore EnvMart for a comprehensive range of industrial measuring and testing instruments, including Data Acquisition Systems by top manufacturers like Digilent.
