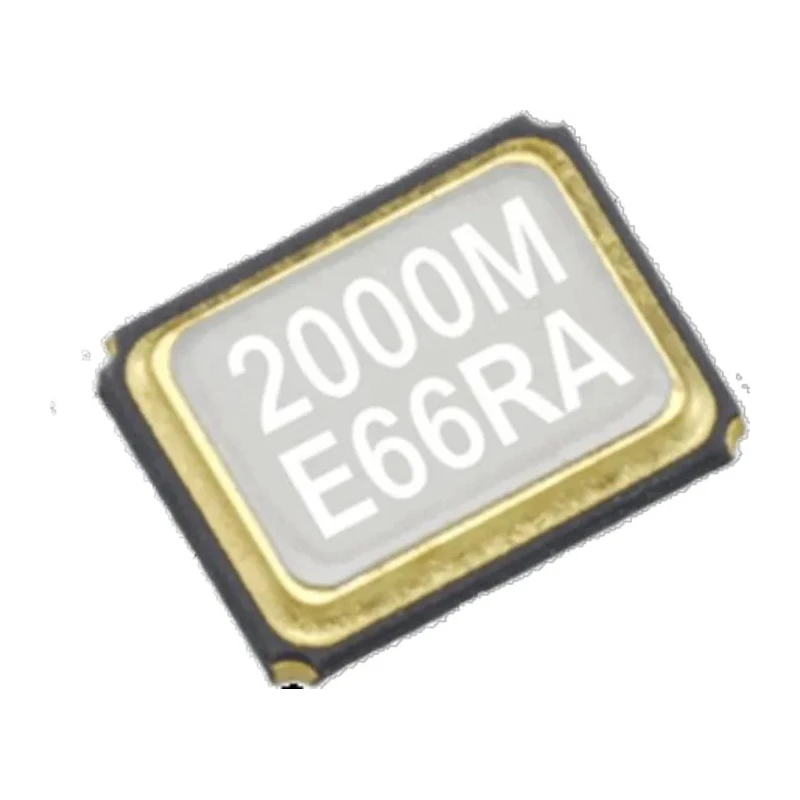

Epson 32 MHz Crystal Unit ±10 ppm Surface Mount Technology 4-Pin 0.5 mm Height, 2 mm Length Q22FA1280058912

Free Delivery in India | Lowest Global Shipping Charges

Epson 32 MHz Crystal Unit ±10 ppm Surface Mount Technology 4-Pin 0.5 mm Height, 2 mm Length Q22FA1280058912

Name: Epson 32 MHz Crystal Unit ±10 ppm Surface Mount Technology 4-Pin 0.5 mm Height, 2 mm Length Q22FA1280058912
Brand: Epson
SKU: 165415
Price: 0.69 USD
Availability: InStock



Category Crystal Unit Brand Epson Condition New

Specifications

Country of Origin	India
Brand	Epson
Height	0.5mm
Operating Temperature Range	-40°C to +85 °C
Length	2mm
Model	Q22FA1280058912
Packaging	Tape & Reel
Width	1.6mm
Mount Type	Surface
Series	Q22FA
Maximum Operating Temperature	85°C
Package Type	SMT
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	4
Standard Frequency	32MHz
Load Capacitance	10pF
Series Resistance	60Ω

Key Features

Operates at a standard frequency of 32 MHz.
Features a frequency tolerance of ±10 ppm and frequency stability of ±15 ppm.
Packaged as a SMT device with 4 pins and compact size of 2 mm length by 1.6 mm width and 0.5 mm height.
Designed to operate within a temperature range of -40°C to +85°C.
Provides a load capacitance of 10 pF with a series resistance of 60 Ω.
Complies with RoHS standards and is Pb-free.
Suitable for mobile phones, Bluetooth, WLAN, ISM band radios, and MPU clocks.
Comes in tape and reel packaging for automated assembly.

Product Description

The Epson Q22FA1280058912 32 MHz Crystal Unit is a precision engineered surface mount device designed for stable frequency generation in advanced electronic systems. Operating at a nominal frequency of 32 MHz, it boasts a tight frequency tolerance of ±10 ppm and stability of ±15 ppm, ensuring reliable timing for critical applications.

This crystal unit adopts a SMT 4-pin configuration housed in an ultra-compact form factor measuring 2 mm in length, 1.6 mm in width, and 0.5 mm in height. The component supports a load capacitance of 10 pF and has a series resistance of 60 Ω, making it ideal for maintaining signal integrity.

Operating reliably across a wide temperature range from -40°C to +85°C, this crystal unit is compliant with RoHS directives, ensuring it is environmentally friendly and lead-free. Designed for use in communications and computing devices, its applications span mobile phones, Bluetooth devices, WLAN modules, ISM band radios, and microprocessor clock circuitry.

The product is supplied in tape and reel packaging which facilitates efficient placement during automated PCB assembly, supporting high-volume manufacturing processes. Operates at 32 MHz frequency with ±10 ppm tolerance for precision.

Surface mount package type with 4 pins supports compact designs. Wide operating temperature range from -40°C to +85°C. RoHS compliant and Pb-free for environmental safety. Ideal for mobile communication, wireless, and clock timing applications.

Compact dimensions ensure integration in space-constrained devices. Packaged in tape and reel format to support automated assembly lines. Series resistance of 60 Ω aids in signal quality maintenance.

This Epson crystal unit is consistent with the Q22FA series, validated for high stability and performance. It suits industrial, telecommunications, and consumer electronics manufacturing scenarios requiring precision frequency control components.
