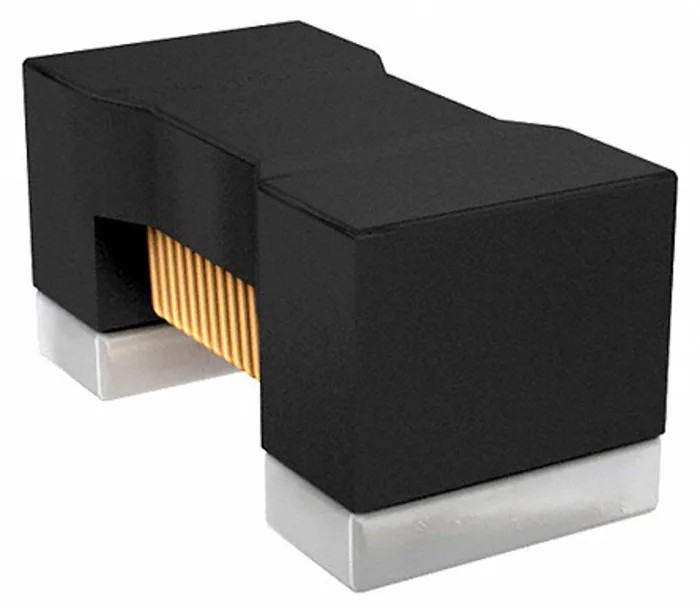

Murata Wirewound Surface Mount Inductor 30nH ±2% 420mA Idc 0603 Package LQW18AN30NG00D

Murata LQW18AN30NG00D is a wirewound surface mount inductor designed with a ferrite core to deliver precise inductance of 30nH with a tolerance of ±2% and a maximum DC current rating of 420mA. The compact 0603 package measuring 1.6mm in length and 0.8mm in height and depth enables its integration in space-constrained applications.

This inductor features a maximum DC resistance of 230mΩ, ensuring low power losses and efficient performance. It is capable of operating reliably over a temperature range from -55 degrees Celsius up to 125 degrees Celsius, making it suitable for demanding industrial and consumer electronics environments.

The minimum quality factor of 40 and a maximum self-resonant frequency of 3.3GHz allow this component to perform well in high-frequency applications. Its moulded, wirewound construction provides durability and consistent electrical characteristics.

Murata's LQW series inductors are RoHS compliant and widely used in high frequency circuits for wireless telecommunications, including Bluetooth, GSM, and WLAN devices. The product is supplied on paper tape packaging compatible with automated manufacturing processes to improve production efficiency.

Typical industrial use cases include electronic devices requiring stable inductance in power and signal filtering circuits, as well as wireless communication modules in consumer and industrial applications.

EnvMart customers can explore more Surface Mount Inductors and related passive components from leading manufacturers for their electronic design and manufacturing needs. Compact footprint enabling high-density PCB layouts.

High current handling for robust circuit design. Wirewound construction ensures low DC resistance and excellent performance. Wide temperature operating range supports industrial environments. High quality factor and resonance frequency suited to wireless communication circuits.
