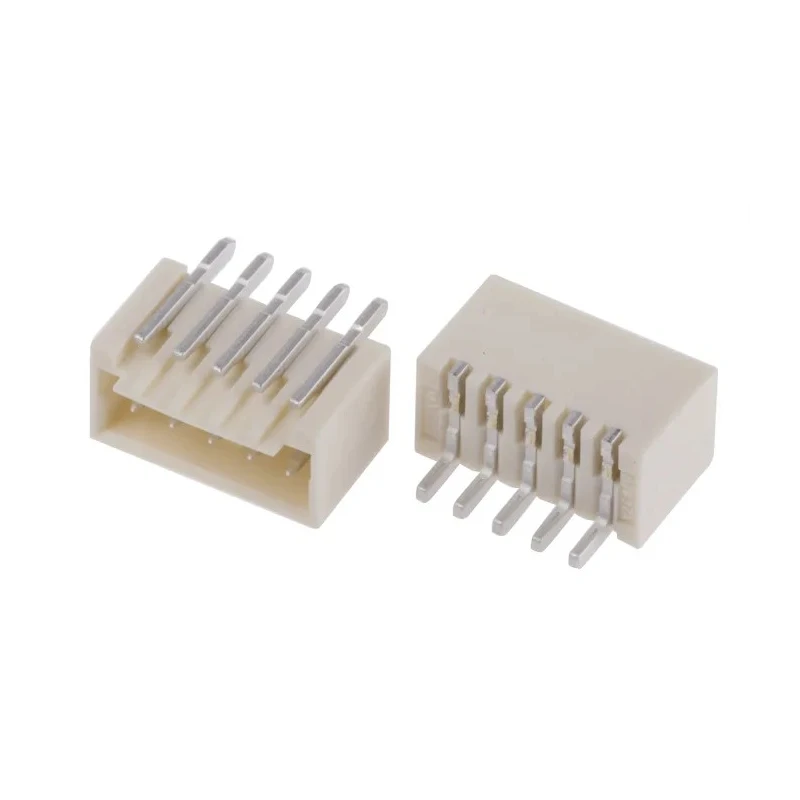

Molex Pico-SPOX Series Right Angle Surface PCB Header, 5 Contacts, 1.5 mm Pitch, 1 Row, Shrouded 87438-0543
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 3A |
| Mount Type | Surface |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | Pico-SPOX |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 1.5mm |
| Contact Plating | Tin |
| Number of Contacts | 5 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Rated for a maximum current of 3 Amperes supporting AWG #24 wire size.
- Construction includes thermoplastic housing with brass contacts plated with tin.
- Designed with a 1.5 mm pitch and right angle orientation for surface mount applications.
- Termination type is solder, providing reliable electrical connections.
- Operating temperature range from -55°C to 105°C ensures durability in varied environments.
- Connector system is wire-to-board, compatible with 87439 Series housings.
- Shrouded contact design enhances protection and connector stability.
- Compact 1 row format supports tight packaging requirements.
Product Description
Molex 87438-0543 Pico-SPOX Series Right Angle Surface PCB Header is engineered for reliable wire-to-board connection applications, specifically designed with a 5 contact configuration on a 1.5 mm pitch in a single row, with a shrouded housing to ensure secure mechanical and electrical performance.
This connector series provides excellent current carrying capacity rated up to 3 Amperes with AWG #24 wire, making it ideal for applications requiring moderate power transmission in compact spaces.
The housing material is a durable thermoplastic designed for surface mount configurations, with brass contacts that are tin-plated for corrosion resistance and excellent solderability. The right angle orientation facilitates board space optimization.
Operating across a temperature range of -55°C to 105°C, this PCB header is suitable for various industrial and commercial environments, providing robust performance with a voltage rating of 350 Volts.
The shrouded design protects the contacts and prevents damage or contamination, enhancing connector lifespan and operational safety. It mates with Molex 87439 Series housings, facilitating versatile assembly options.
Rated current capacity up to 3A with AWG #24 wire. Thermoplastic housing with tin-plated brass contacts. 1.5 mm pitch with 5 contacts in a single right angle row. Solder termination for reliable electrical connections. Temperature range from -55°C to 105°C for diverse applications.
Voltage rating of 350 V ensures safe operation. Shrouded for enhanced contact protection and connector stability.
This PCB header is ideal for electronics manufacturing, prototyping, consumer electronics, industrial control systems, and automotive electronics requiring compact, reliable connectors for wire-to-board connections.
Explore more electronic components and connectors at EnvMart to find compatible parts and accessories for your projects.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this PCB header is 3 Amperes.
This model has a voltage rating of 350 Volts, ensuring safe operation in various applications.
The connector features a 1.5 mm pitch and has 5 contacts arranged in a single row.
It is constructed with a thermoplastic housing and brass contacts that are plated with tin for corrosion resistance.
The operating temperature range for this PCB header is from -55°C to 105°C.
This connector uses solder termination, providing reliable electrical connections.
This model is designed for surface mounting, suitable for various PCB applications.
Yes, it is compatible with Molex 87439 Series housings, allowing for versatile assembly options.
This model has a right angle orientation, which helps optimize board space.
The shrouded design enhances contact protection and stability, preventing damage or contamination.
It is suitable for electronics manufacturing, prototyping, consumer electronics, industrial control systems, and automotive electronics.
The country of origin for this PCB header is India.
