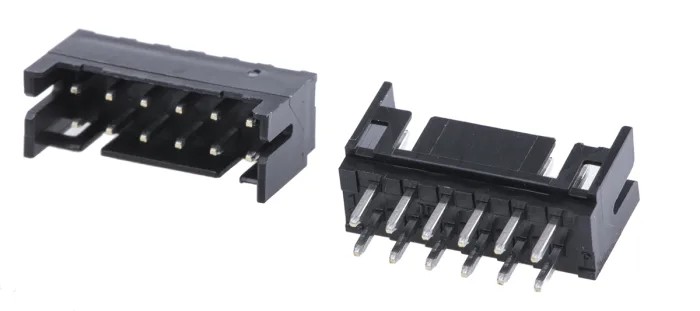

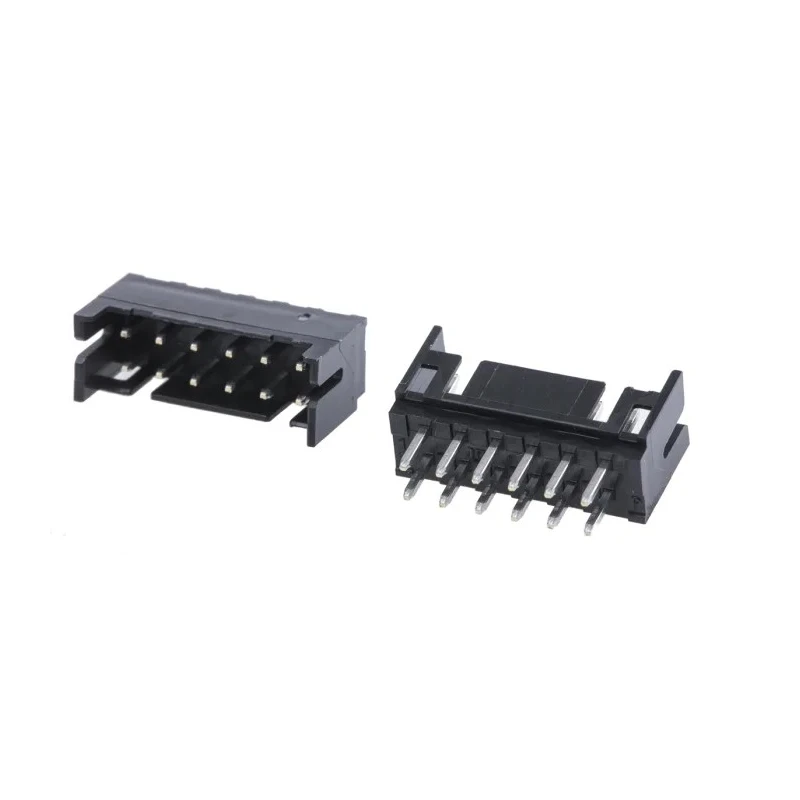

Hirose DF11 Series Straight Through Hole PCB Header 12 Contacts, 2 mm Pitch, 2 Row, Shrouded DF11

Hirose DF11 Series Straight Through Hole PCB Header, model DF11, features a compact, space-saving 2 mm pitch double row design with 12 contacts. This shrouded header provides a secure and reliable connection for both board-to-board and wire-to-board applications with a robust four-wall design and guide ribs to prevent incorrect insertion and twisting.

The header supports a current rating of 2A and voltage up to 250V, suitable for low power electronic signals. Its copper alloy contacts are tin plated for efficient conductivity and corrosion resistance. The through-hole mount type ensures reliable mechanical and solder joint strength, while the polyamide housing material offers insulation and durability.

The product operates efficiently between -30°C and 85°C, making it viable for a wide range of industrial, commercial, and consumer electronic applications. Its locking mechanism ensures a secure mating connection preventing accidental disconnects, and metal fittings on SMT versions improve retention and solder joint reliability.

This PCB header is ideal for compact and portable devices such as digital cameras, LCD displays, digital video recorders, car navigation systems, access control units, and measurement instruments where multiple signals require a space-saving connector solution.

Compact double-row design maximizes space efficiency. Shrouded four-wall housing with guide ribs to avoid mismating and mechanical damage. Through hole mount for enhanced mechanical stability. Rated 2A current and 250V voltage supports typical electronic signal needs.

Polyamide housing provides robust insulation and structural support. Male copper alloy contacts with tin plating ensure reliable electrical connectivity. Wide operating temperature range from -30°C to 85°C suits diverse environments.

Locking mechanism for assured mating connection and vibration resistance. Supports both board-to-board and wire-to-board connector systems. Manufactured origin: Malaysia.

Choose Hirose DF11 Series PCB Headers for reliable, compact, and secure electrical connections in electronic assemblies and devices. Explore more connectors and PCB components in the Electronics & Electricals category on EnvMart for advanced industrial and commercial projects.
