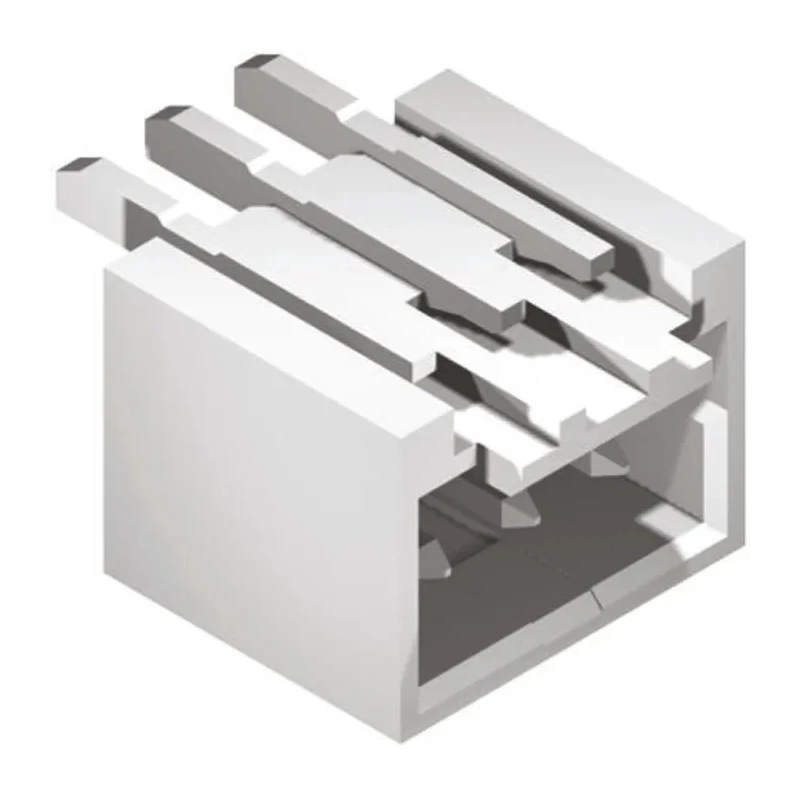

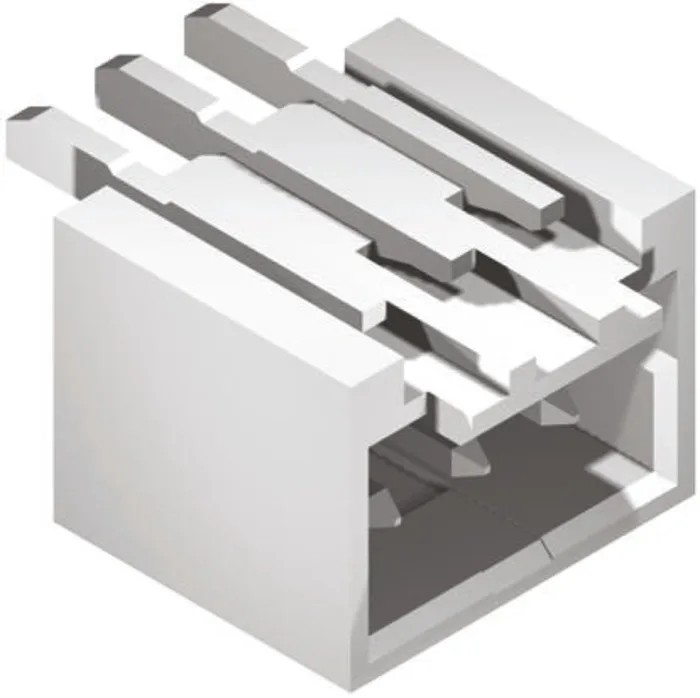

Molex Pico-SPOX Series Right Angle Surface PCB Header 9 Contacts 1.5 mm Pitch 1 Row Shrouded 87438-0943
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 3A |
| Mount Type | Surface |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | Pico-SPOX |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 1.5mm |
| Contact Plating | Tin |
| Number of Contacts | 9 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- This connector is designed for wire-to-board applications in compact spaces.
- It features a 1.5 mm pitch and supports up to 3A current using AWG #24 wires.
- The housing is made of durable thermoplastic material ensuring electrical insulation.
- Right angle orientation allows for efficient PCB mounting and routing.
- The contacts are made from brass with tin plating for corrosion resistance.
- The product operates reliably between -55°C and 105°C temperature range.
- Termination type is solder, suitable for secure surface mounting.
- The header is shrouded for protection and mating guidance.
Product Description
Molex 87438-0943 Pico-SPOX Series Right Angle Surface PCB Header features a compact 1.5 mm pitch design with 9 male contacts in a single row. Rated for 3 Amps maximum current using AWG #24 wires, it offers a reliable wire-to-board connection optimized for high-density packaging applications.
The housing is constructed from thermoplastic providing robust insulation and mechanical strength. Its right angle orientation supports efficient PCB layout and surface mounting on printed circuit boards.
Contacts are brass with tin plating to prevent corrosion and ensure reliable electrical performance. The header is shrouded to enhance polarization and protect contacts during mating.
This connector functions seamlessly in extreme environments, rated for operation from -55°C up to 105°C. It meets voltage specifications up to 350V, making it suitable for a wide range of electrical and electronic applications.
The termination type is solder, supporting surface mount technology (SMT) assembly. Typical use cases include industrial electronics, telecommunications equipment, embedded systems, and other wire-to-board interconnect solutions requiring compact, durable connector assemblies.
This connector is designed for wire-to-board applications in compact spaces. It features a 1.5 mm pitch and supports up to 3A current using AWG #24 wires. The housing is made of durable thermoplastic material ensuring electrical insulation.
Right angle orientation allows for efficient PCB mounting and routing. The contacts are made from brass with tin plating for corrosion resistance. The product operates reliably between -55°C and 105°C temperature range. Termination type is solder, suitable for secure surface mounting.
The header is shrouded for protection and mating guidance. Explore our extensive range of connectors and electronic components in the Electronics & Electricals category at EnvMart.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 3A using AWG #24 wires.
The contacts in this connector are designed with a 1.5 mm pitch.
The header is rated for a maximum voltage of 350V.
The housing is made of thermoplastic, while the contacts are constructed from brass with tin plating for corrosion resistance.
It operates reliably within a temperature range of -55°C to 105°C.
This connector features 9 male contacts in a single row.
The termination type for this model is solder, suitable for surface mounting.
This connector has a right angle orientation, which facilitates efficient PCB mounting.
Yes, the header is shrouded to enhance polarization and protect the contacts during mating.
It is suitable for wire-to-board applications in industrial electronics, telecommunications equipment, and embedded systems.
The country of origin for this connector is India.
The right angle design supports efficient PCB layout and surface mounting, optimizing space in compact applications.
