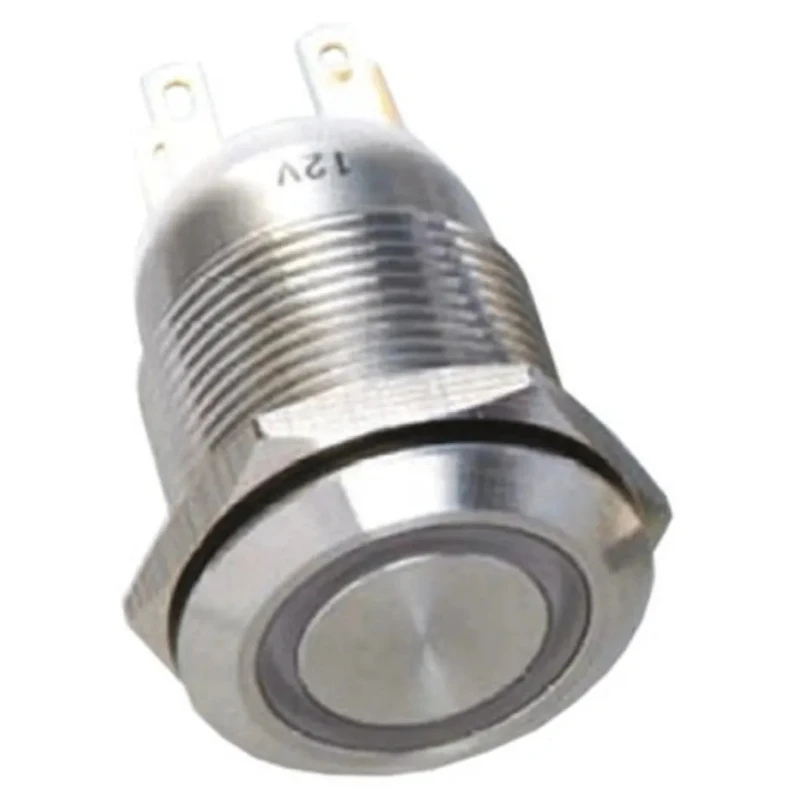

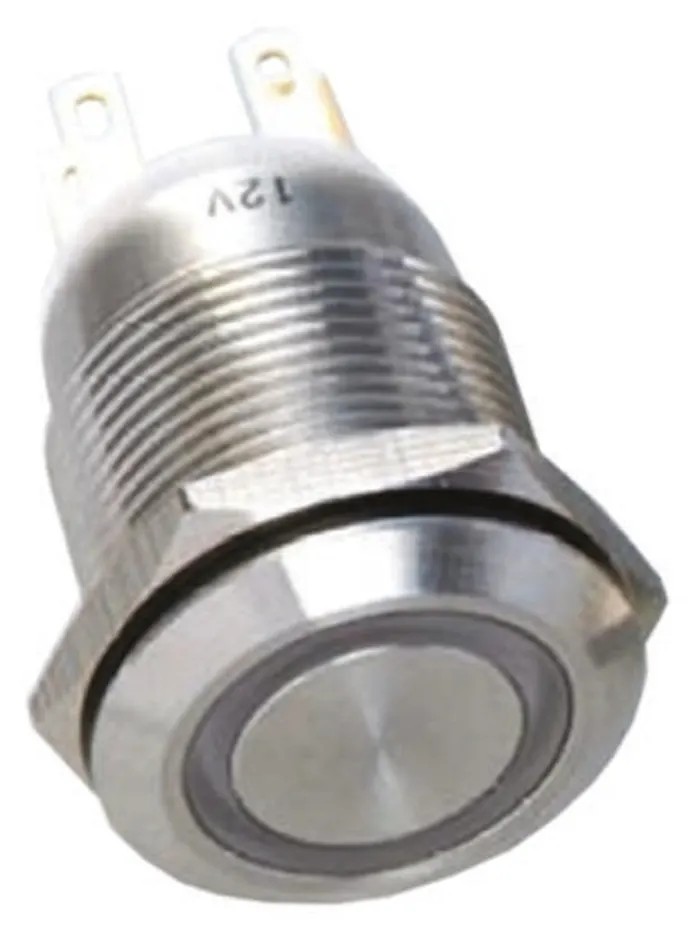

EOZ R Series Illuminated Push Button Switch Momentary Panel Mount 19 mm Cutout DPDT White LED IP65 250V ac R19FFSSPAGRW12

The EOZ R19FFSSPAGRW12 is a high-quality illuminated push button switch from the R Series designed for momentary operation and panel mount applications. Featuring a 19 mm cutout size, this DPDT switch offers dual pole double throw contact configuration with white LED illumination, ideal for clear status indication.

These push button switches are engineered for robust industrial, manufacturing, and automation environments, proving exceptionally resistant to vandalism and mechanical impacts. The switch is compliant with IK09 impact standards, capable of withstanding up to 10 joules, which equates to the impact of a 5 kg object dropped from 200 mm. This makes it suitable for exposed public areas, kiosks, ticket machines, access control systems, and factory equipment.

The EOZ R Series switch features IP65 sealing, ensuring complete protection against dust ingress and resistance to low-pressure water jets from any direction, thereby enhancing its longevity in harsh environments. It operates reliably within a temperature range of -20°C to 55°C, accommodating a wide variety of industrial and commercial applications.

The button’s silver actuator and momentary switching mechanism provide intuitive and responsive operation. It uses solder terminals for secure and efficient panel mounting, optimizing ease of installation. The white LED ring illumination not only improves visibility but also serves as an operational indicator.

This push button switch supports a contact AC voltage of 250 V and is rated for 5A switch contact current, assuring reliable switching performance. It meets RoHS environmental compliance standards, underscoring its safety and quality credentials. Originating from France, the EOZ R19FFSSPAGRW12 combines durability with advanced technical features.

Vandal resistant with IK09 impact protection. IP65 rated sealed enclosure for dust and water resistance. 19 mm panel cutout suitable for versatile mounting. Momentary operation with silver button actuator. DPDT contact configuration with 5A current capacity.

White LED illumination for clear visual indication. Solder terminal type for reliable connections. Operating temperature range from -20°C to 55°C. RoHS compliant for environmental safety. Manufactured in France ensuring high quality standards.

This EOZ illuminated push button switch is ideal for applications in industrial automation, electrical panels, access control systems, and exposed public or commercial environments where durability and visibility are critical. Explore a broad range of Push Button Switches and components in the Electronics & Electricals section on EnvMart for enhanced industrial solutions.
