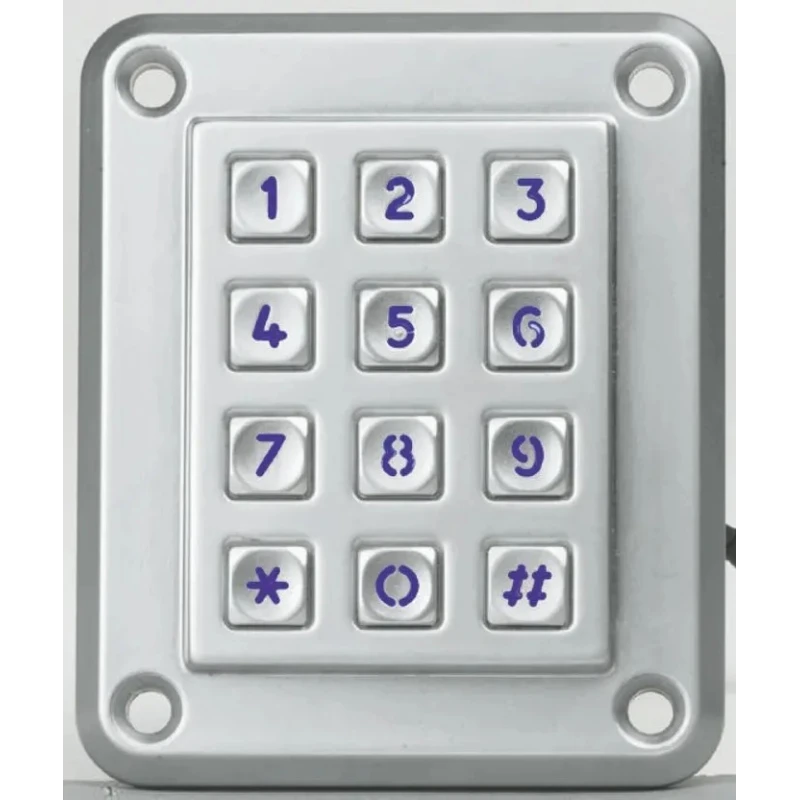

EOZ 12 Key ABS Keypad IP67 Rated High Impact Resistance Housing

EOZ SL.12100.001 12 Key ABS Keypad IP67 is a high-quality keypad designed for demanding industrial and automation environments. Featuring a robust ABS housing with silver polycarbonate actuators, this keypad is built for durability and high mechanical life of 4 million operations per key.

The device is fully sealed to IP67 standard using a supplied gasket, providing complete protection against dust and water ingress, making it ideal for harsh operating conditions. It supports a 4 x 3 key layout with common point output and no membrane operation, providing reliable tactile feedback.

Operating temperature range from -25°C to 85°C allows wide usability in various climatic conditions. The panel cutout width of 13.5 mm and height of 115 mm permit straightforward installation in control panels. Electrical specifications include a contact rating of 5mA at 5Vdc, contact resistance under 200 ohms, dielectric strength of 1500Vrms, and insulation resistance exceeding 1000 megaohms.

Key construction utilizes carbon contact material contributing to long life and reliability. This keypad is RoHS compliant, ensuring it meets environmental and safety standards.

The keypad connects via a 0.1 inch (2.54 mm) pitch male header with 22 poles arranged in 2 rows, gold plated for enhanced conductivity. Note that socket connector is not included but can be sourced separately for convenience.

Applications span industrial automation, electrical panel control, machinery interfaces, and other commercial and manufacturing uses. Set contains 1 pcs keypad. The keypad features a durable ABS housing with black color and polycarbonate silver actuators.

It is rugged with an IP67 rating, ensuring full sealing against water and dust. Each key is rated for 4 million mechanical operations providing long-lasting performance. The keypad supports 4 x 3 key layout with common point output and no membrane operation.

It is RoHS compliant and suitable for industrial, automation, and electrical applications. Operates reliably between -25°C and 85°C maximum temperature range. Panel cutout dimensions are 13.5 mm width by 115 mm height for easy mounting.

Contact rating of 5mA at 5Vdc with ≤200 Ω contact resistance ensures stable electrical performance. Explore full range of Keypad Switches and electrical components at EnvMart for your industrial and commercial needs.
