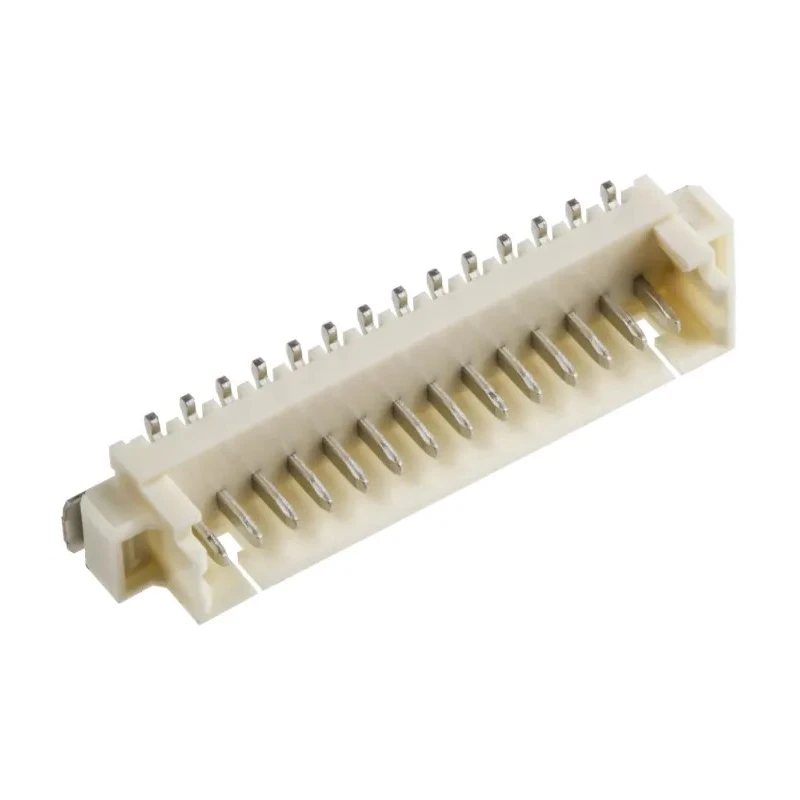

Molex PicoBlade Series Straight Surface PCB Header, 14 Contacts, 1.25 mm Pitch, 1 Row, Shrouded 53398-1471
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125V |
| Brand | Molex |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | PicoBlade |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Contact Plating | Tin |
| Number of Contacts | 14 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- 1 A current capacity with compact 1.25 mm pitch design.
- Offers up to 45% PCB space savings compared to 2.00 mm pitch connectors.
- Friction locking mechanism ensures secure mating and vibration resistance.
- Surface mount type designed for wire-to-board connector systems.
- Housing made from durable nylon providing insulation and robustness.
- Contact material is phosphor bronze with tin plating for reliable conductivity.
- Operates over temperature range from -40°C to 105°C.
- Compatible with high-density harness applications such as automotive and industrial electronics.
Product Description
Molex 53398-1471 PicoBlade Series Straight Surface PCB Header is a high-density wire-to-board connector featuring 14 male contacts in a single row with a 1.25 mm pitch for compact PCB design. This shrouded header is surface mount type and constructed with nylon housing, phosphor bronze contacts, and tin plating to provide reliable electrical performance.
Designed to carry up to 1 A current, these headers enable PCB space savings of up to 45% compared to traditional 2.00 mm pitch connectors, making them ideal for applications requiring compact interconnections.
The friction locking mechanism with locking windows engages securely to prevent accidental unmating caused by vibration or mishandling. Solder tabs provide strong retention on PCB and strain relief for solder tails, enhancing durability.
Operating temperature ranges from -40°C to 105°C, ensuring suitability in demanding industrial, automotive, medical, and consumer electronic environments where reliability and compact size are critical.
Typical use cases include automotive alarms, car audio systems, DVD players, industrial process controls, and medical patient monitoring devices, where space savings and secure wire-to-board connections are essential.
1 A current capacity with compact 1.25 mm pitch design. Offers up to 45% PCB space savings compared to 2.00 mm pitch connectors. Friction locking mechanism ensures secure mating and vibration resistance. Surface mount type designed for wire-to-board connector systems.
Housing made from durable nylon providing insulation and robustness. Contact material is phosphor bronze with tin plating for reliable conductivity. Operates over temperature range from -40°C to 105°C. Compatible with high-density harness applications such as automotive and industrial electronics.
Explore more high-quality PCB Headers and connectors in the Electronics & Electricals category at EnvMart for your industrial and commercial needs.
