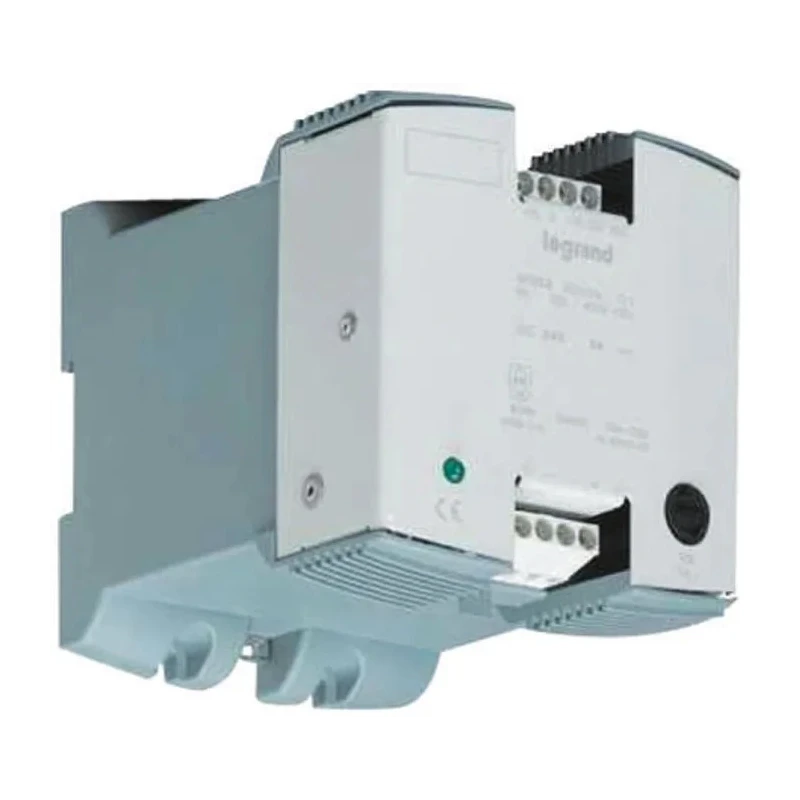

Legrand Linear DIN Rail Power Supply 400V AC Input 24V DC Output, 10 A, 240 W 0 470 54

Name: Legrand Linear DIN Rail Power Supply 400V AC Input 24V DC Output, 10 A, 240 W 0 470 54
Brand: Legrand
SKU: 189234



Category DIN Rail Power Supplies Brand Legrand Condition New

Specifications

Country of Origin	France
Brand	Legrand
Power	240W
Height	175mm
Model	0 470 54
Depth	186mm
Width	126mm
Output Current	10A
Sub Type	Linear
Maximum Input Voltage	400V ac
Maximum Output Voltage	24V dc
Minimum Input Voltage	230V ac

Key Features

This linear power supply provides a regulated 24 V DC output voltage.
Supports input voltage range from 230 V AC minimum to 400 V AC maximum.
Compact design with dimensions 175 mm height, 126 mm width, and 186 mm depth.
Includes a safety transformer with electro-static shield and dual terminal blocks for single-phase use.
Protected secondary output via fuse and incorporates a green indicator light for operating status.
Equipped with a coupling bar for fast connection between negative terminals and earth up to 15 A.
Designed to meet IEC/EN 61558-2-6 and CAN/CSA E742, EN 61131-2 standards.
Manufactured in France and intended for industrial and electronic component applications.

Product Description

Legrand 0 470 54 Linear DIN Rail Power Supply is a high-quality device engineered to provide a non-filtered 24 V DC output suitable for various industrial and electronic applications. It accepts an input voltage range from 230 V AC up to a maximum of 400 V AC, delivering a stable output current of 10 A and a power rating of 240 W.

Featuring a built-in safety transformer with an electro-static screen, this power supply ensures reliable operation in single-phase systems. The unit integrates dual terminal blocks facilitating easy and secure connections. Its compact dimensions of 175 mm height, 126 mm width, and 186 mm depth enable installation in constrained electrical panels.

The secondary output circuit is well protected by a fuse, enhancing safety and equipment protection. A green LED indicator clearly displays the operating voltage status, providing quick visual confirmation of power availability. The device also includes a coupling bar enabling fast linkage of negative terminals and earth up to 15 A, improving wiring efficiency.

Compliance with IEC/EN 61558-2-6 and CAN/CSA E742, EN 61131-2 standards verifies that the power supply meets recognized safety and performance criteria for electrical equipment. Originating from France, this unit is designed for reliability and longevity in demanding commercial and industrial environments.

This power supply delivers a regulated, non-filtered 24 V DC output voltage. Accepts a wide input voltage range from 230 V AC to 400 V AC. Incorporates a safety transformer with electro-static screen for enhanced protection.

Includes dual terminal blocks and coupling bar for efficient wiring. Secondary output is fuse-protected to prevent damage. Equipped with a green LED to indicate operating voltage. Compact size allows flexible panel installation.

Meets IEC/EN 61558-2-6 and CAN/CSA certifications for safety and standards compliance.

This Legrand power supply is ideal for use in electronic components, power distribution systems, industrial automation, and other applications requiring a robust and reliable DIN rail-mounted power source. Explore more products in the Power Supplies category at EnvMart for complementary components and solutions.
