| Country of Origin | India |
|---|---|
| Voltage | 100V dc |
| Brand | AVX |
| Height | 0.94mm |
| Length | 3.2mm |
| Model | 12061A220JAT2A |
| Packaging | Reel |
| Width | 1.6mm |
| Mount Type | Surface |
| Series | KGM |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±5 % |
| Capacitance | 22pF |
| Minimum Operating Temperature | -55°C |
| Package/Case | 1206 |
| Dielectric | C0G |
| Suppression Class | Class I |

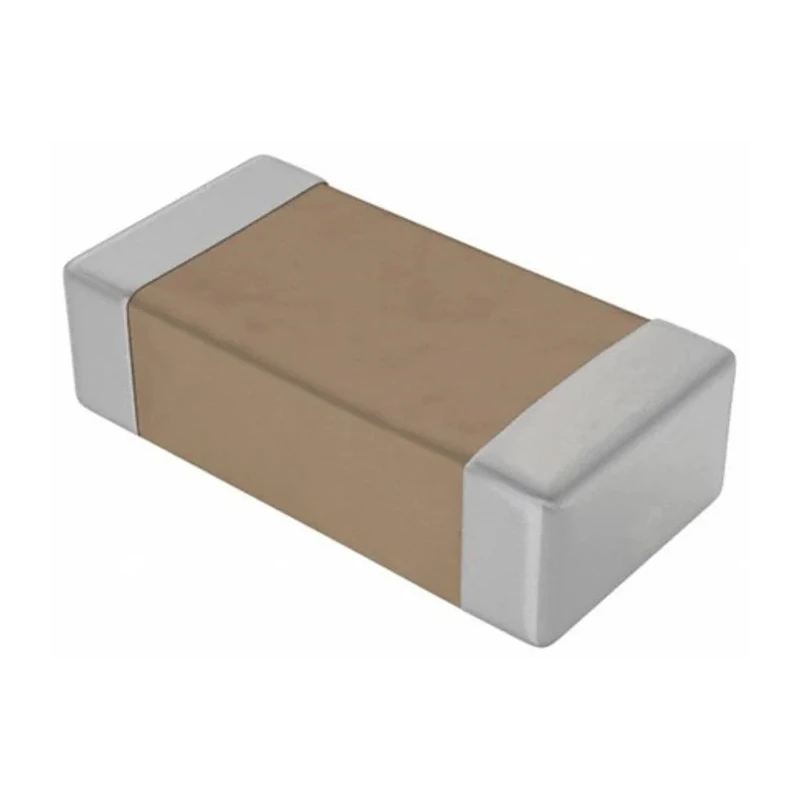

| AVX 22pF Multilayer Ceramic Capacitor MLCC, 100V dc V, ±5% , SMDBrand | AVX |
AVX 12061A220JAT2A is a high-quality Multilayer Ceramic Capacitor designed for surface mount applications with a capacitance of 22 pF and voltage rating of 100V DC. Featuring a C0G dielectric (also known as NP0), this capacitor offers one of the most stable temperature characteristics, making it ideal for precision electronic circuits.
The ±5% capacitance tolerance ensures circuit reliability and accuracy in demanding environments. Packaged in a 1206 form factor, the device measures 3.2 mm in length, 1.6 mm in width, and 0.94 mm in height, making it compatible with modern automated surface mount assembly processes.
Its robust operating temperature range from -55°C to 125°C allows use in a wide variety of industrial, communication, and consumer electronics applications. The reel packaging facilitates efficient use in manufacturing lines.
This capacitor belongs to the KGM series, providing class I suppression with no specific automotive standard certification. It is designed for stable performance with a low capacitance change rate of 0 ±30 ppm/°C, minimizing capacitance drift across the temperature range.
Multilayer ceramic capacitors like this are commonly used in industrial electronic equipment, telecommunications, computing, instrumentation, and HVAC control boards. Features C0G dielectric providing highly stable temperature characteristics.
Capacitance tolerance is ±5% ensuring precision in electronic circuits. 1206 package size with dimensions 3.2mm length, 1.6mm width, and 0.94mm height. Suitable for surface mount technology with termination type as surface mount.
Operating temperature range from -55°C to 125°C supports a broad application environment. Reel packaged for efficient manufacture assembly integration. KGM series offering class I suppression and no automotive standard compliance.
