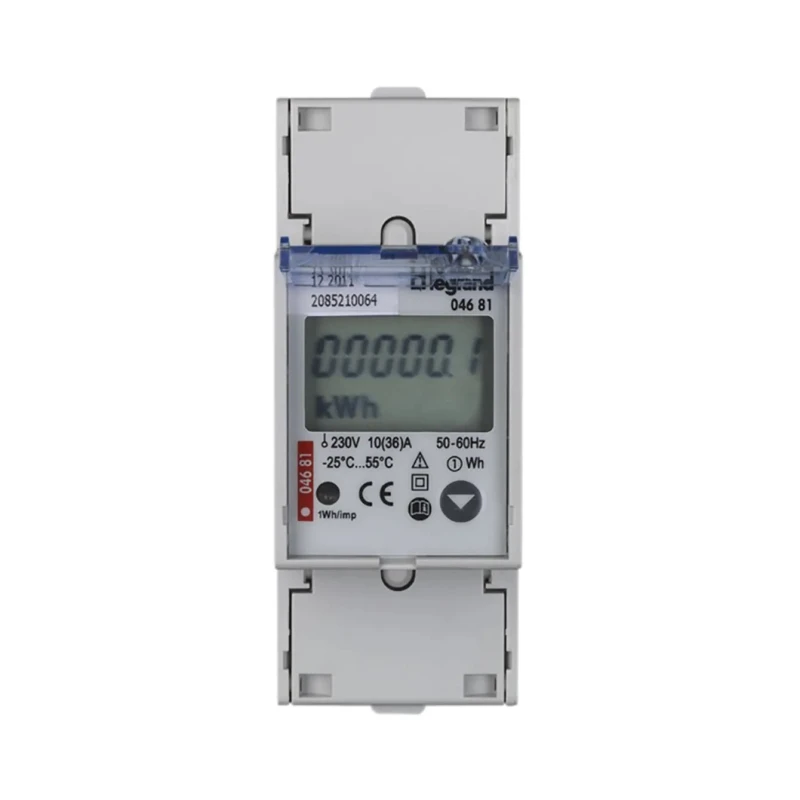

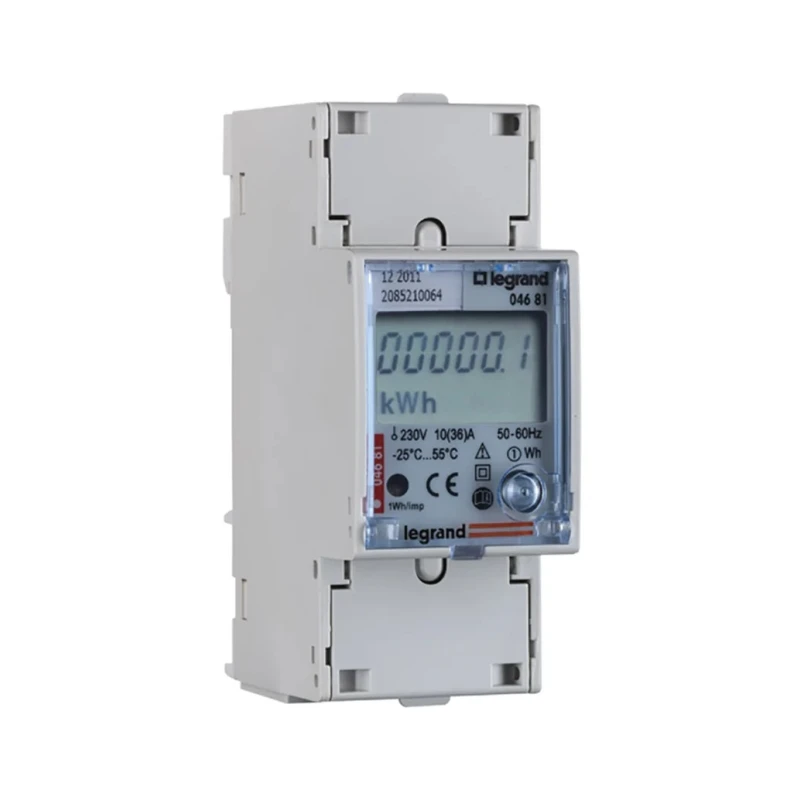

Legrand 1 Phase Electronic LCD Energy Meter 0 046 81, Series EMDX3, Pulse Output, 7-Digit Display

Legrand 0 046 81 Electronic LCD Energy Meter is a single-phase meter from the EMDX3 series designed for reliable measurement of electrical energy consumption in industrial, commercial, and residential applications.

This energy meter features a clear 7-digit LCD display with an 85 mm digit height, enabling easy reading of energy data including active energy, reactive energy, current, and power values. The device supports both direct connection and compatibility with CT connections depending on the variant.

Key characteristics include pulse output to support data acquisition, high accuracy compliant with IEC 62053-21 and IEC 62053-23 metering standards, and robust operating temperature capability ranging from -10°C to 45°C, making it suitable for various electrical environments.

The compact packaging with cutout dimensions of 90 mm height and 35.6 mm width and a depth of 65.4 mm facilitates panel mounting in control and distribution boards.

Certified to IEC 61010-1 safety requirements, this Legrand energy meter is engineered for precision and safety in energy management and monitoring systems across industrial, manufacturing, utility, and commercial building sectors.

7-digit LCD display provides precise readings of energy consumed. Pulse output for integration with monitoring systems. Cutout dimensions: 90 mm height and 35.6 mm width for panel installation. Operating temperature range from -10°C to 45°C for versatile environment use.

Complies with IEC 61010-1, IEC 62053-21, and IEC 62053-23 standards. Depth of 65.4 mm ensures compact design suitable for control panels. Maximum indication of 99999.9 kWh supports wide energy range monitoring. Manufactured in the United Kingdom assuring quality and reliability.

Ideal for industrial machines, electrical distribution systems, automation & control gear setups, and process control applications, the Legrand 0 046 81 meter contributes to efficient energy measurement and management. Explore related models and leverage design resources including 3D models and schematics for integration.
