Microchip 125 MHz MEMS Oscillator 6-Pin VDFN ±10 ppm Surface Mount DSC1123CI5-125.0000

Free Delivery in India | Lowest Global Shipping Charges

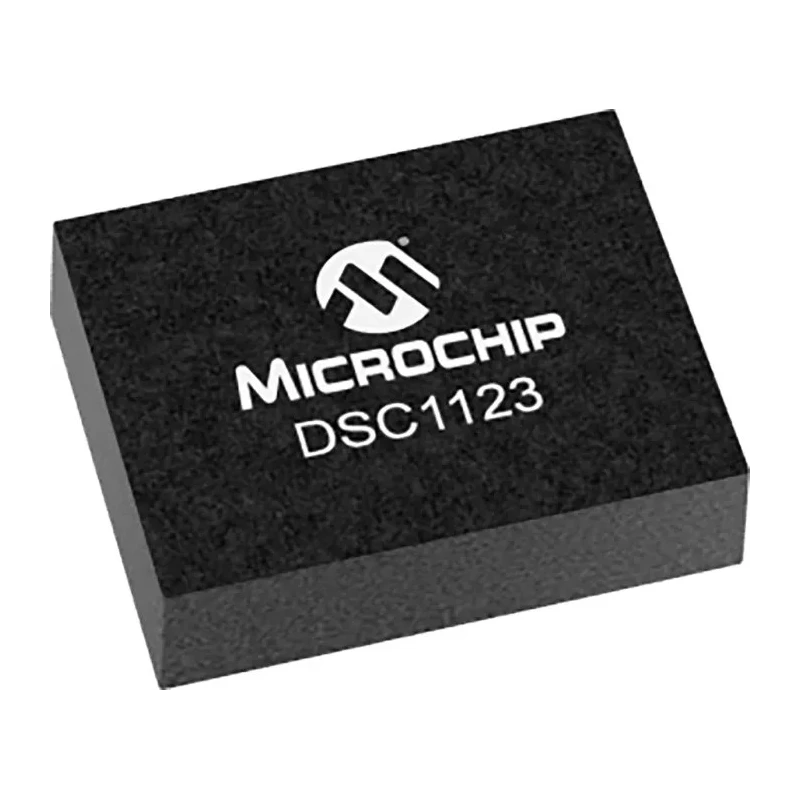

Microchip 125 MHz MEMS Oscillator 6-Pin VDFN ±10 ppm Surface Mount DSC1123CI5-125.0000

Name: Microchip 125 MHz MEMS Oscillator 6-Pin VDFN ±10 ppm Surface Mount DSC1123CI5-125.0000
Brand: Microchip
SKU: 153343
Price: 3.48 USD
Availability: InStock



Category MEMS Oscillators Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	0.85mm
Length	3.2mm
Model	DSC1123CI5-125.0000
Packaging	Tube
Width	2.5mm
Mount Type	Surface
Series	DSC1123
Industrial	-40°C to 85°C
Maximum Operating Temperature	85°C
Package Type	VDFN
Minimum Operating Temperature	-40°C
Maximum Output Frequency	125MHz
Standards/Approvals	EN, RoHS, ISO
Pin Count	6
Output Level	LVDS
Maximum Operating Supply Voltage	4V
Minimum Operating Supply Voltage	-0.3V
Wide Freq. Range	2.3 to 460MHz
High Stability	±10, ±25, ±50 ppm
Ext. commercial	-20°C to 70°C
High Supply Noise Rejection	-50dBc
Short Lead Time	2 Weeks

Key Features

Provides high stability frequency output with ±10 ppm tolerance.
Operates over a wide industrial temperature range from -40°C to 85°C.
Surface mount package type VDFN with a small footprint of 3.2 mm by 2.5 mm.
Utilizes low voltage differential signaling (LVDS) output for noise immunity.
Supports supply voltage up to 4 V ensuring low current consumption.
Constructed with MEMS technology offering superior reliability over traditional quartz oscillators.
Offers excellent shock and vibration immunity for robust industrial applications.
Compatible with communications, storage, and networking equipment requiring precise clock sources.

Product Description

Microchip DSC1123CI5-125.0000 is a high-performance MEMS oscillator designed for demanding industrial and commercial applications. This 125 MHz oscillator features a 6-pin VDFN package optimized for surface mount technology, allowing for compact PCB layouts.

The device provides excellent frequency stability of ±10 ppm and operates reliably across a broad temperature range from -40°C to 85°C, making it suitable for harsh environmental conditions. Its low voltage differential signaling (LVDS) output ensures high noise immunity critical for communications and networking hardware.

Utilizing proven silicon MEMS technology, the DSC1123CI5 series eliminates traditional quartz or SAW requirements, offering enhanced reliability with 20 times better mean time to failure compared to quartz oscillators. This technology also aids faster product development, meeting stringent clock performance needs.

The oscillator supports a wide operating voltage range with a maximum of 4 V, and it maintains low power consumption, an important factor for energy-sensitive applications. Its compact dimensions (3.2 mm length, 2.5 mm width, and 0.85 mm height) permit use in space-constrained devices.

Suitable for various industrial sectors, including telecommunications, data storage, and networking, this component provides stable clock sources essential for timing accuracy. The device complies with EN, RoHS, and ISO standards and is lead-free, aligning with environmental regulations.

High stability frequency output of ±10 ppm ensures precise timing control. Wide industrial temperature range enhances operational reliability. Compact 6-pin VDFN package facilitates integration in small-form-factor designs.

Low power consumption supports energy-efficient systems. MEMS technology ensures superior durability and performance over quartz counterparts. Compliant with international standards including RoHS and EN.

For industrial, laboratory, telecommunications, and advanced electronics manufacturing sectors seeking reliable oscillators, the Microchip DSC1123CI5-125.0000 MEMS oscillator is an optimal choice. Explore a wide range of precision oscillators and related components with EnvMart for your engineering needs.
