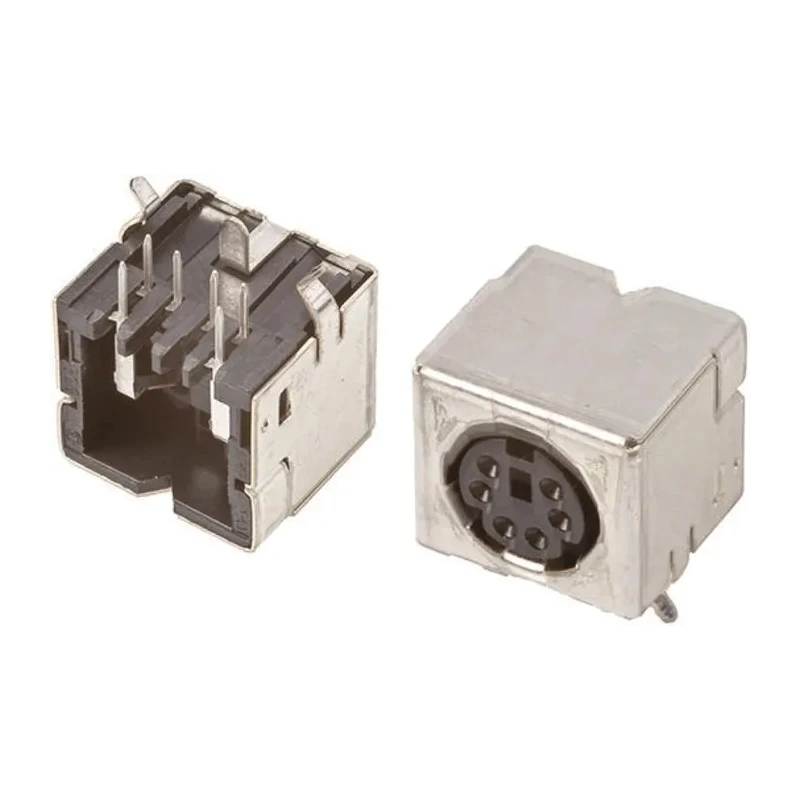

TE Connectivity Mini DIN 6 Pole Right Angle Miniature DIN Socket, 1A, 30V AC, Keyed, Through Hole Female 5749231-1

TE Connectivity 5749231-1 Mini DIN 6 Pole Right Angle Miniature DIN Socket is a high-quality shielded circular connector designed for electronic components and power connections in industrial and commercial applications. This female DIN socket accepts 6 contacts and supports a current rating of 1 ampere and an operating voltage of 30 volts AC, making it suitable for low power signal and control circuits.

The connector's right-angle form factor facilitates compact PCB layouts and easier cable routing on printed circuit boards. Featuring a through hole solder termination, this socket ensures robust mechanical and electrical connections. The housing is molded from fibreglass reinforced thermoplastic rated to UL 94V-0 for flame retardancy, providing excellent durability and safety in challenging environments.

Contacts are manufactured from copper alloy with gold plating over nickel, delivering reliable electrical conductivity and corrosion resistance. The connector's shielding system uses tin over nickel plating, effectively reducing electromagnetic interference for stable signal integrity in sensitive electronic assemblies. It is keyed to ensure correct mating with counterparts, preventing damage and enhancing assembly efficiency.

Operating temperature capabilities range from -55°C to 105°C, allowing the product to function reliably across harsh industrial or laboratory environments. Typical use cases include electronics manufacturing, instrumentation, industrial machinery, and control systems requiring miniature DIN socket interfaces.

The connector includes 6 contact poles arranged in a miniature DIN configuration. Right angle orientation optimizes PCB space usage. Shielded design ensures signal integrity through EMI reduction. Gold over nickel plating extends connector life and reliability.

Fibreglass reinforced thermoplastic housing resists heat and mechanical stress. Keyed for secure and error-free mating. Solder termination for durable through hole mounting. Wide operating temperature range supports versatile industrial applications.

This TE Connectivity Mini DIN connector is ideal for electronics manufacturing, laboratory instrumentation, HVAC control modules, and other applications requiring secure, compact electrical connections. It supports automated assembly processes and provides consistent performance under demanding conditions.
