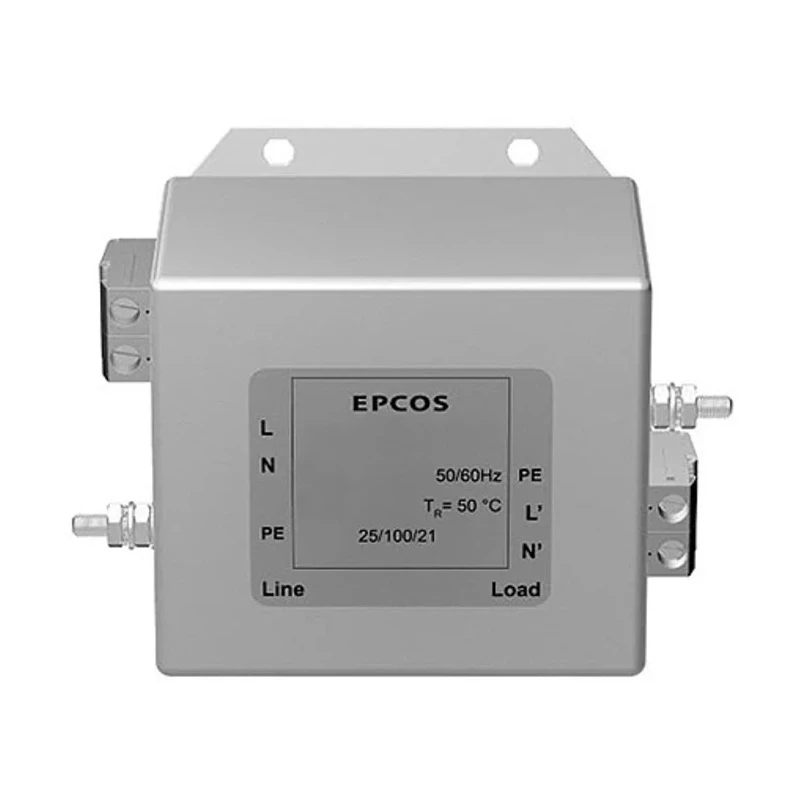

TDK Chassis Mount EMC Filter, 16A, 250V AC/DC, 50Hz/60Hz, Tab Termination, 1-Phase B84142A0016A166
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | TDK |
| Protection Type | IP20 |
| Height | 38mm |
| Length | 63mm |
| Model | B84142A0016A166 |
| Depth | 51mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 50, 60Hz |
| Series | B84142A*166 |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 1 |
| Resistance | 10mΩ |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 16A |
| Number of Phases | 1 |
| Leakage Current | 1.73mA |
| Maximum Voltage | 250V ac/dc |
| Standards/Approvals | UL and cUL, CSA, ENEC, IEC 60939, RoHS, UL 1283 |
| Termination Style | Tab |
Key Features
- Designed for chassis mounting with tab termination for easy installation.
- Supports operation at 50Hz and 60Hz frequencies.
- Compact construction suitable for electrical systems such as lifts, conveyor belts, pumps, and power supply units.
- Features low leakage current and high insertion loss for effective suppression of EMI.
- Offers protection type IP20 and operates reliably from -25°C to 100°C.
- Certified with UL, cUL, CSA, ENEC, IEC 60939, RoHS, and UL 1283 standards.
- One-phase and single-stage configuration for industrial use.
Product Description
TDK B84142A0016A166 Chassis Mount EMC Filter is an advanced electromagnetic compatibility filter specifically engineered for single-phase power applications, providing reliable filtering for 16A, 250V AC/DC lines.
The B84142A0016A166 features a highly compact construction, making it ideal for use in lifts, conveyor belts, pumps, ventilation systems, and modern power supply units where effective EMI suppression is essential. It offers high insertion loss, optimized for very long motor cables under full load, and supports both 50Hz and 60Hz operating frequencies.
Chassis mount EMC filter rated for 16A maximum current and 250V AC/DC. Tab termination style for straightforward installation. Compact size with dimensions of 63mm length, 51mm depth, and 38mm height. Low leakage current of just 1.73mA and resistance of 10mΩ for efficient performance.
Operates reliably from -25°C to 100°C in demanding industrial environments. UL, cUL, CSA, ENEC, IEC 60939, RoHS, and UL 1283 certified for safety and global compliance. One-phase, single-stage design protecting sensitive equipment from electromagnetic interference.
This filter's robust design ensures protection type IP20, addressing modern requirements for EMI suppression. It provides two-line filtering for electrical installations, enhancing reliability and signal integrity. Typical industrial applications include electrical distribution systems, automation, HVAC, industrial manufacturing, and commercial facilities.
Ideal for environments requiring high efficiency and stringent compliance, the TDK B84142A0016A166 advances EMC performance and protects machinery and sensitive electronics from line disturbances.
Explore more TDK filters and related Power Line Filter offerings in the Electronics & Electricals category at EnvMart to find the right solution for your industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this EMC filter is 16A.
This model has dimensions of 63mm in length, 51mm in depth, and 38mm in height.
It supports operation at both 50Hz and 60Hz frequencies.
This unit is designed for chassis mounting with a tab termination style for easy installation.
The protection type is IP20, which provides basic protection against solid objects.
The leakage current is rated at 1.73mA.
It operates reliably in a temperature range from -25°C to 100°C.
It is certified with UL, cUL, CSA, ENEC, IEC 60939, RoHS, and UL 1283 standards.
It features high insertion loss, optimized for very long motor cables under full load, effectively suppressing EMI.
This model is suitable for applications such as lifts, conveyor belts, pumps, and power supply units.
The resistance is rated at 10mΩ, contributing to its efficient performance.
The series designation for this model is B84142A*166.
