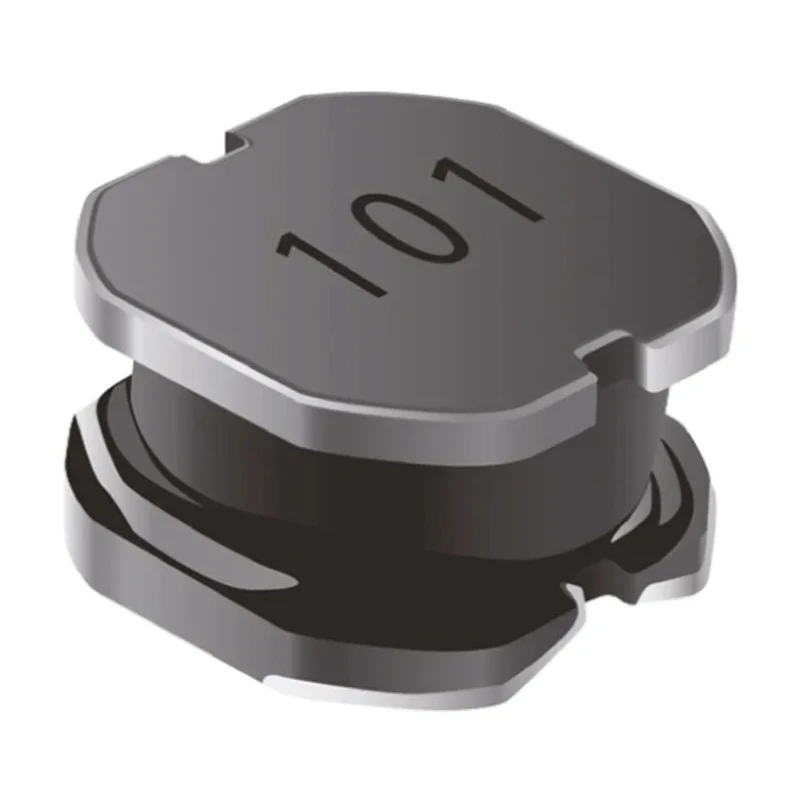

Bourns Shielded Wirewound Surface Mount Inductor 10 μH ±20 % 5.4 A DC Current, Ferrite Core, 1060 Package SRN1060
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 6mm |
| Length | 9.8mm |
| Model | SRN1060 |
| Depth | 10mm |
| Packaging | Reel |
| Series | SRN1060 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Standards/Approvals | RoHS |
| Package/Case | 1060 |
| Maximum DC Current | 5.4A |
| Pin Count | 2 |
| Maximum DC Resistance | 29mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Minimum Quality Factor | 25 |
| Inductor Construction | Wirewound |
Key Features
- Features a ferrite core for efficient magnetic performance.
- Constructed with wirewound architecture ensuring stable inductance.
- Packaged in a 1060 surface mount case suitable for automated PCB assembly.
- Capable of operating between -40°C and 125°C for wide temperature applications.
- Maximum DC resistance is low at 29 mΩ to minimize power loss.
- Termination style is solder, compatible with standard surface mount processes.
- RoHS compliant, ensuring environmental safety and regulatory compliance.
- Suitable for DC/DC converters, notebook computers, digital cameras, TVs, and LCD displays.
Product Description
Bourns SRN1060 Shielded Wirewound Surface Mount Inductor is a high-quality electronic component featuring a ferrite core with 10 μH inductance and ±20 % tolerance. Rated for a maximum DC current of 5.4 A, this inductor supports demanding electronic applications requiring stable inductive properties.
The 1060 package size and solder termination style make it compatible with automated surface mount assembly processes. It operates reliably in temperatures ranging from -40°C up to 125°C, making it suitable for various industrial and commercial electronic uses.
Constructed using wirewound technology, the inductor provides a maximum DC resistance of just 29 mΩ, minimizing energy loss and improving efficiency. The semi-magnetically shielded design reduces electromagnetic interference, preserving signal integrity in complex circuits.
This component is RoHS compliant, adhering to environmental directives for hazardous substance reduction. It is ideal for use in power management solutions such as DC/DC converters, notebook computers, digital video cameras, televisions, and LCD display applications.
Features a ferrite core for efficient magnetic performance. Constructed with wirewound architecture ensuring stable inductance. Packaged in a 1060 surface mount case suitable for automated PCB assembly. Capable of operating between -40°C and 125°C for wide temperature applications.
Maximum DC resistance is low at 29 mΩ to minimize power loss. Termination style is solder, compatible with standard surface mount processes. RoHS compliant, ensuring environmental safety and regulatory compliance. Suitable for DC/DC converters, notebook computers, digital cameras, TVs, and LCD displays.
Minimum quality factor of 25 ensures efficient energy transfer.
This component is a critical part for electronics manufacturing, addressing diverse industrial, commercial, and consumer electronics needs. Browse other Surface Mount Inductors and passive components at EnvMart to complement your PCB designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Bourns SRN1060 inductor has an inductance value of 10 μH with a tolerance of ±20%.
This model is rated for a maximum DC current of 5.4 A.
The dimensions of the SRN1060 inductor are 9.8 mm in length, 10 mm in depth, and 6 mm in height.
The termination style of this inductor is solder, which is compatible with standard surface mount processes.
It can operate reliably between -40°C and 125°C.
The maximum DC resistance is 29 mΩ, which helps minimize power loss.
The SRN1060 uses a ferrite core for efficient magnetic performance.
The minimum quality factor is 25, ensuring efficient energy transfer.
It is packaged in a reel, suitable for automated PCB assembly.
Yes, it is RoHS compliant, ensuring adherence to environmental safety regulations.
This inductor is suitable for use in DC/DC converters, notebook computers, digital cameras, TVs, and LCD displays.
The SRN1060 is constructed using wirewound technology, which ensures stable inductance.
