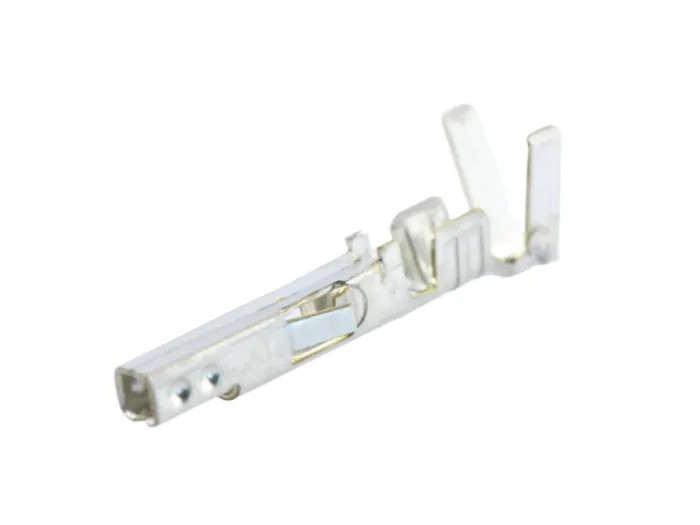

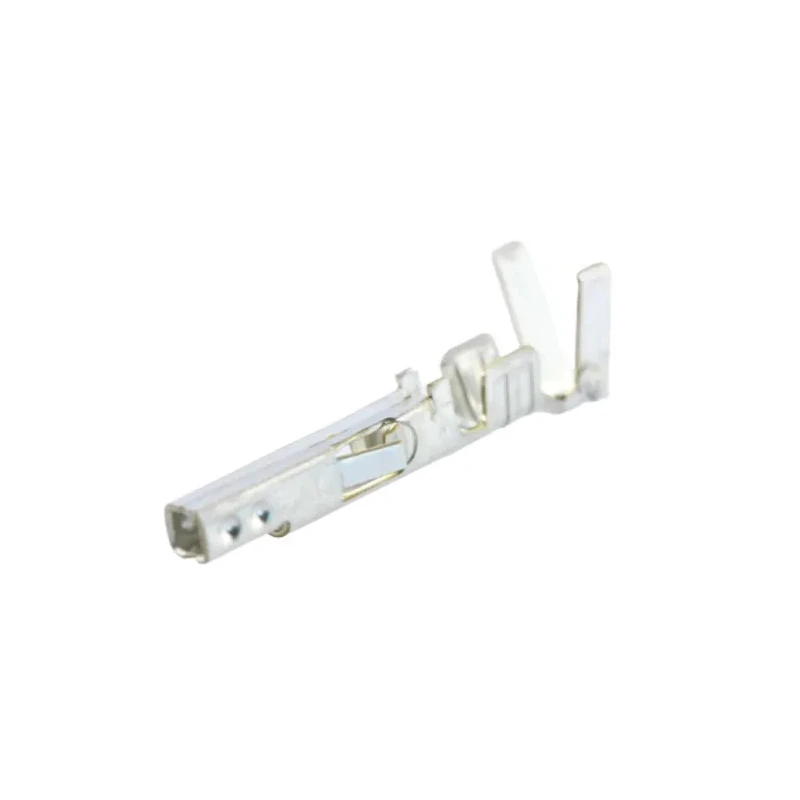

Molex 5556 Series Female Crimp Terminal, Brass Contact Material, 9A Current, 28 AWG Min Crimp, 22 AWG Max 39-00-0046

Free Delivery in India | Lowest Global Shipping Charges

Molex 5556 Series Female Crimp Terminal, Brass Contact Material, 9A Current, 28 AWG Min Crimp, 22 AWG Max 39-00-0046

Name: Molex 5556 Series Female Crimp Terminal, Brass Contact Material, 9A Current, 28 AWG Min Crimp, 22 AWG Max 39-00-0046
Brand: Molex
SKU: 207232
Price: 0.06 USD
Availability: InStock



Category Crimp Contacts Brand Molex Condition New

Specifications

Country of Origin	India
Brand	Molex
Current	9A
Gender	Female
Contact Material	Brass
Series	5556
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
For Use With	30067 Mini-Fit TPA, 42474 Mini-Fit BMI Panel Mount, 5557 Mini-Fit Jr. Receptacle Housings
Contact Plating	Tin
Minimum Wire Size mm²	0.08mm²
Maximum Wire Size mm²	0.35mm²
Minimum Wire Size AWG	28AWG
Maximum Wire Size AWG	22AWG
Maximum Contact Resistance	10mΩ
Molex 5556 Series Female Crimp Terminal, 28 AWG Min Crimp, 22 AWG MaxBrand	Molex

Key Features

Compatible with Mini-Fit connector housings for reliable electrical connections.
Supports a maximum current of 9 amperes for moderate power applications.
Crimp termination ensures strong mechanical and electrical bonding without soldering.
Operates in temperatures ranging from -40°C to 105°C for use in harsh environments.
Locking tangs provide secure retention within connector housings to resist vibrations.
Low halogen content reduces toxic fume emissions improving fire safety.
Suitable for automotive, telecommunications, and security system applications.

Product Description

The Molex 39-00-0046 female crimp terminal from the 5556 series is engineered for professional electronic and electrical connectivity, suitable for wire gauges from 28 AWG minimum to 22 AWG maximum. Featuring brass contact material and tin plating, this terminal offers excellent corrosion resistance, ensuring longevity and reliability in demanding conditions.

Crimp terminated, it provides a strong and airtight attachment to Mini-Fit PCB connectors or wires, reducing the risk of moisture ingress and contamination. Its secure locking tangs firmly hold the terminal in place within compatible Mini-Fit housings, offering stable performance under mechanical vibrations and environmental stresses.

With a current rating of 9 amperes, it is well suited for a variety of medium power applications, including automotive electrical systems, telecommunications infrastructure, and security devices. The operating temperature range from -40°C to 105°C renders it capable of functioning reliably in both cold and hot environments.

The terminal is designed with low halogen levels to enhance fire safety by limiting toxic fume emissions during combustion. Its versatility is further emphasized by compatibility with specific Mini-Fit connectors such as the 30067 Mini-Fit TPA, 42474 Mini-Fit BMI Panel Mount, and 5557 Mini-Fit Jr. Receptacle Housings.

Corrosion-resistant tin plating for enhanced durability. Brass contact material ensures excellent conductivity and mechanical strength. Crimp termination method facilitates quick and reliable connections without soldering.

Suitable for use in automotive, industrial automation, communications, and consumer electronics. Locking tangs improve secure retention within connector housings. Wide operating temperature range supports use in challenging environments.

This Molex female crimp terminal is an essential component for ensuring dependable wire to board connections in industrial, automotive, and telecommunications applications. EnvMart provides access to high-quality connectors and accessories that meet stringent industrial standards.

Explore more products in our Crimp Contacts category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This female crimp terminal supports a maximum current of 9 amperes, making it suitable for moderate power applications.

It is designed for wire gauges ranging from 28 AWG minimum to 22 AWG maximum.

The terminal operates effectively in temperatures ranging from -40°C to 105°C, suitable for harsh environments.

The contact material is brass, and it features tin plating for enhanced corrosion resistance.

It is compatible with Mini-Fit connector housings such as the 30067 Mini-Fit TPA, 42474 Mini-Fit BMI Panel Mount, and 5557 Mini-Fit Jr. Receptacle Housings.

The crimp termination ensures a strong mechanical and electrical bond without the need for soldering, reducing the risk of moisture ingress.

The maximum contact resistance is rated at 10 milliohms, ensuring efficient conductivity.

It is suitable for applications in automotive, telecommunications, industrial automation, and consumer electronics.

Yes, it has low halogen content, which reduces toxic fume emissions during combustion, enhancing fire safety.

It features locking tangs that secure the terminal within the connector housings, providing stability against vibrations.

The country of origin for this terminal is India.

The tin plating enhances the terminal's corrosion resistance, contributing to its longevity and reliability in demanding conditions.
