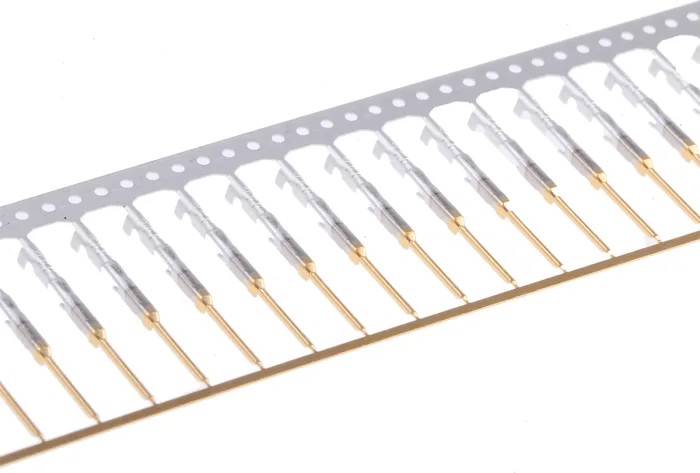

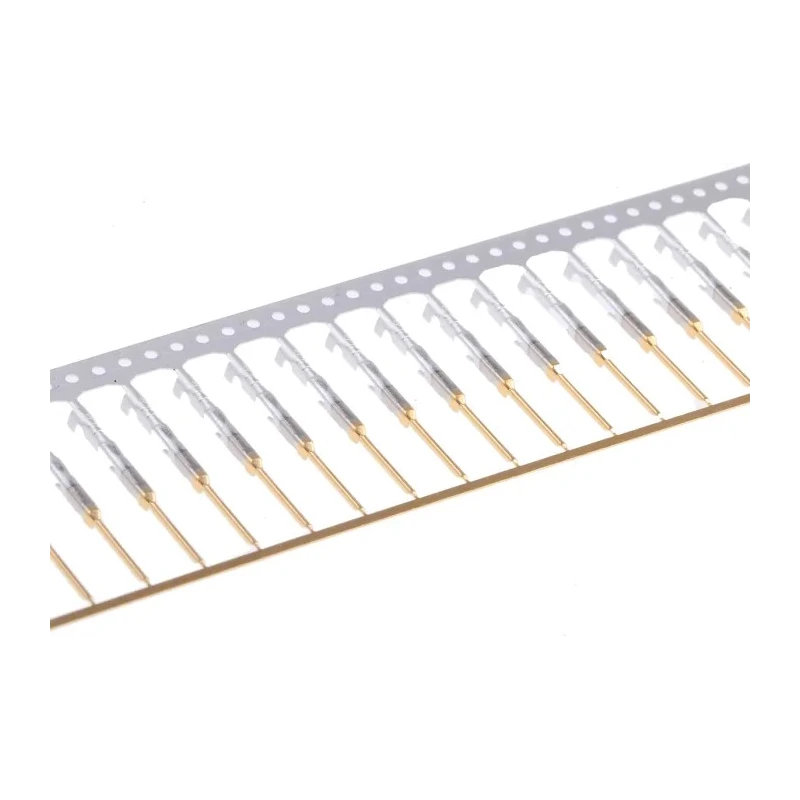

Molex 70021 Series Male Crimp Terminal, Crimp Termination 3A Current, 30 AWG Min, 24 AWG Max, Gold Plating 16-02-0077

Name: Molex 70021 Series Male Crimp Terminal, Crimp Termination 3A Current, 30 AWG Min, 24 AWG Max, Gold Plating 16-02-0077
Brand: Molex
SKU: 207213
Price: 0.25 USD
Availability: InStock



Category Crimp Contacts Brand Molex Condition New

Specifications

Country of Origin	United States
Brand	Molex
Current	3A
Gender	Male
Contact Material	Phosphor Bronze
Series	70021
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
For Use With	SL Connector Housing
Contact Plating	Gold
Minimum Wire Size mm²	0.05mm²
Maximum Wire Size mm²	0.2mm²
Minimum Wire Size AWG	30AWG
Maximum Wire Size AWG	24AWG
Maximum Contact Resistance	15mΩ

Key Features

Constructed with phosphor bronze contact material for superior conductivity.
Gold contact plating provides excellent corrosion resistance.
Designed for crimp termination to ensure secure wire connections.
Compatible with SL series 70021 connectors for seamless integration.
Suitable for applications requiring low contact resistance up to 15mΩ.
Supports wire sizes from 30 AWG minimum to 24 AWG maximum.
Operates reliably between -40°C and 105°C temperature range.
Ideal for automation, electronic devices, and industrial connectivity solutions.

Product Description

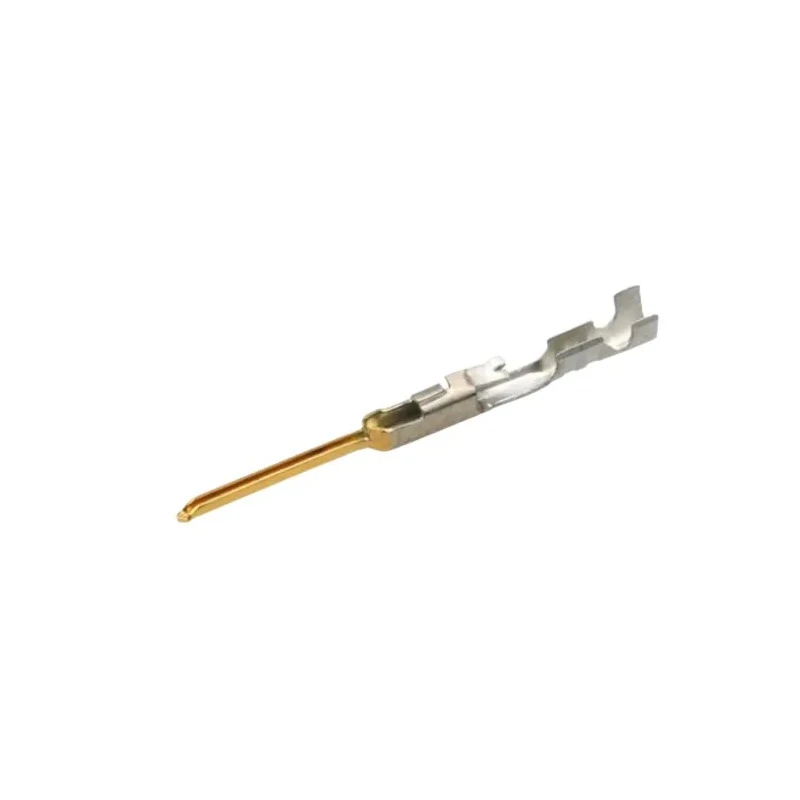

Molex 16-02-0077 Male Crimp Terminal from the 70021 series is designed specifically for use with SL connector housings. This crimp terminal features phosphor bronze contact material known for excellent electrical conductivity, combined with a high-quality gold plating that enhances corrosion resistance, ensuring reliable and durable connections.

With a current rating of 3 amps and minimal contact resistance capped at 15 milliohms, this terminal is optimized for efficient power transmission in sensitive electronic and automation applications. The terminal accommodates wire sizes ranging from 30 AWG minimum to 24 AWG maximum, providing flexibility for various wire gauges in assembly.

Termination is achieved via crimping, delivering a secure and stable mechanical and electrical connection suitable for demanding environments. The terminal is rated to operate effectively in temperatures from -40°C up to 105°C, ensuring performance across a wide range of industrial and commercial applications.

Applications for this terminal include electronic component assembly, power connectors, industrial automation circuitry, and other manufacturing uses where reliable low-resistance connections are critical.

Made with phosphor bronze contact material for high conductivity. Gold plating enhances corrosion resistance and contact reliability. Compatible with SL series 70021 to ensure system integrity. Crimp termination method offers robust mechanical support.

Low contact resistance of 15 milliohms for efficient electrical performance. Supports wire sizes between 30 and 24 AWG. Operates across a temperature range from -40°C to 105°C. Suitable for electronics, industrial automation, and power connector applications.

This Molex terminal is manufactured in the United States, reflecting a commitment to quality and compliance with industry standards. For more components and connectors, explore the Electronics & Electricals category at EnvMart.
