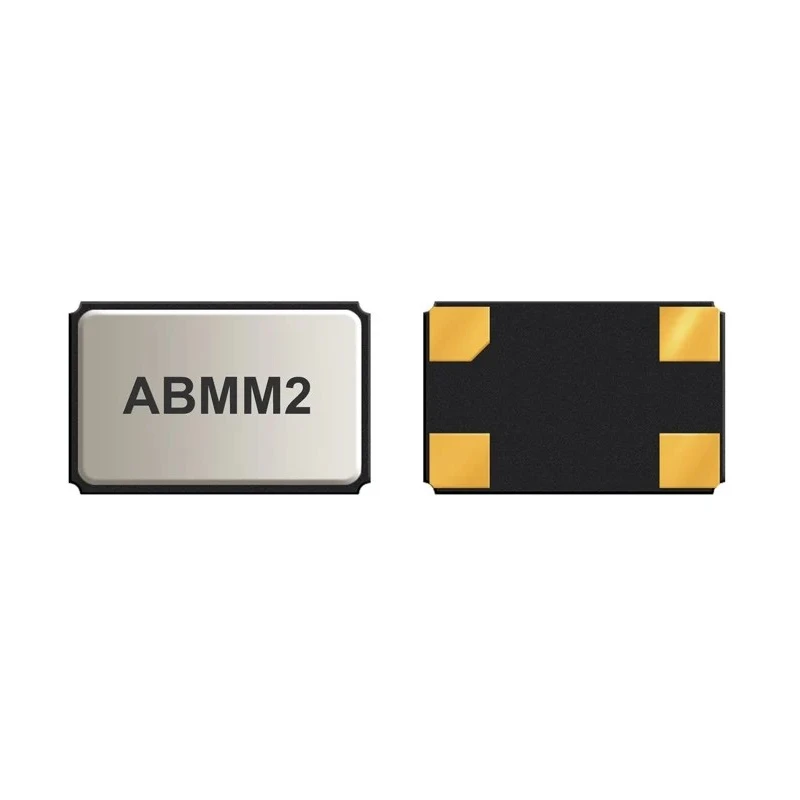

Abracon 24 MHz Crystal Unit ±20 ppm Surface Mount 4-Pin 1.2 mm Height 6 mm Length 3.5 mm Width ABMM2-24.000MHZ-E2-T

The Abracon ABMM2-24.000MHZ-E2-T is a high precision 24 MHz crystal unit engineered for reliable surface mount applications in electronic devices. Featuring a compact ceramic seam-sealed package measuring 6 mm in length, 3.5 mm in width, and a low height of 1.2 mm, it is ideal for modern compact PCB assemblies.

This crystal unit provides excellent frequency stability with ±20 ppm tolerance and an equivalent series resistance of 50 Ω, supporting accurate timing and frequency generation in sensitive communication and computing equipment. Its 4-pin configuration ensures secure electrical connections on surface mount boards.

Rated for operation between -10°C and 60°C, this device maintains performance under typical industrial temperature ranges. The 18 pF load capacitance specification aligns with common oscillator circuits for optimal resonance and signal integrity.

Designed to meet RoHS environmental standards, the ABMM2-24.000MHZ-E2-T Crystal Unit supports compliance with modern manufacturing requirements. Its seam-sealed ceramic package enhances long-term reliability by protecting the quartz element from environmental contaminants and mechanical stress.

Typical applications include use in computers, modems, microprocessors, communication equipment, test instruments, and PCMCIA cards. Its surface mount design facilitates automated assembly processes to improve manufacturing throughput and product consistency.

Operates at 24 MHz standard frequency with tight ±20 ppm tolerance. Compact surface mount design measuring 6 mm x 3.5 mm x 1.2 mm. Four-pin ceramic sealed package for durability and reliable mounting. Load capacitance of 18 pF with a series resistance of 50 ohms.

Temperature range from -10°C to 60°C suitable for industrial uses. RoHS compliant for environmentally safe manufacturing. Ideal for electronic devices requiring precise frequency references. Explore the Abracon product range for high-quality electronic components on EnvMart for your industrial and manufacturing projects.
