ASSMANN WSW Pin Header 20 Contacts 2.54 mm Pitch 1 Row Unshrouded Through Hole AP 119-20/G-N

Free Delivery in India | Lowest Global Shipping Charges

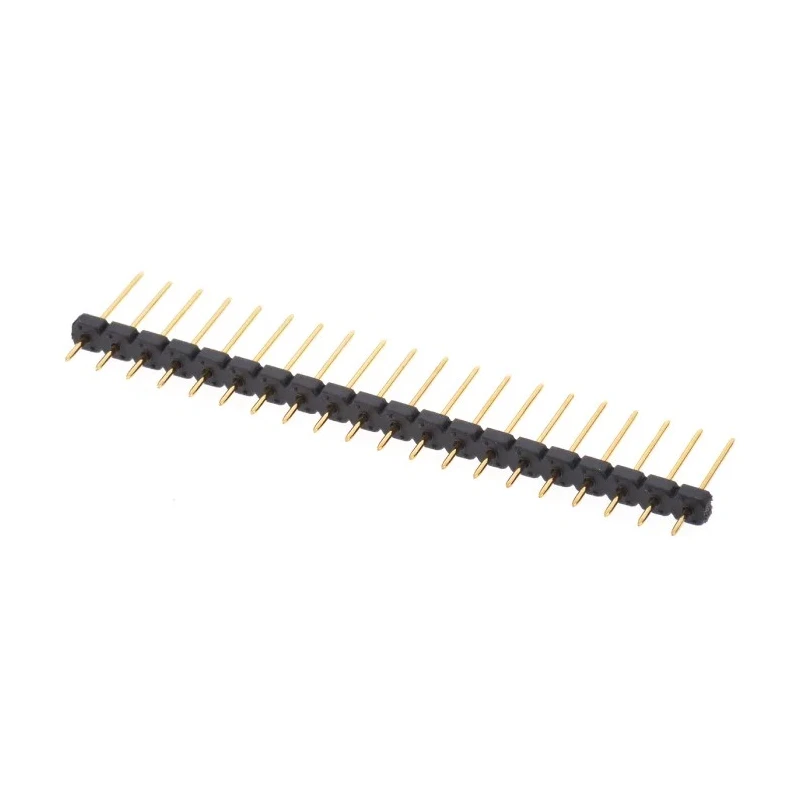

ASSMANN WSW Pin Header 20 Contacts 2.54 mm Pitch 1 Row Unshrouded Through Hole AP 119-20/G-N

Name: ASSMANN WSW Pin Header 20 Contacts 2.54 mm Pitch 1 Row Unshrouded Through Hole AP 119-20/G-N
Brand: ASSMANN WSW
SKU: 208443
Price: 3.71 USD
Availability: InStock



Category PCB Pin Header Brand ASSMANN WSW Condition New

Specifications

Country of Origin	Germany
Voltage	250V
Brand	ASSMANN WSW
Orientation	Straight
Current	3A
Model	AP 119-20/G-N
Mount Type	Through Hole
Housing Material	Polyamide
Contact Material	Brass
Series	AP
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	20
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Board-to-Board
Tail Pin Length	3mm
Mating Pin Length	7.9mm

Key Features

The pin header supports a maximum voltage of 250V.
It carries a current rating of 3A suitable for typical electronic applications.
Constructed with brass contacts plated in gold to ensure reliable conductivity.
Housing is made from durable polyamide material for mechanical stability.
Operating temperature range from -40°C up to 105°C supports harsh environments.
The connector system is board-to-board oriented with a straight contact layout.
Tail pin length is 3 mm with mating pin length of 7.9 mm for secure connections.
Designed for solder termination in electronic assembly processes.

Product Description

ASSMANN WSW AP 119-20/G-N pin header is a high-quality electronic connector designed primarily for board-to-board applications requiring 20 contacts in a single row with standard 2.54 mm pitch. It is manufactured with brass contacts plated in gold which enhances electrical conductivity and resistance to corrosion, ensuring dependable signal transmission in industrial and commercial electronic equipment.

The housing is composed of robust polyamide, offering strong mechanical support and resilience in a range of operating environments. The connector supports a current rating of 3A and voltage up to 250V, suitable for standard PCB connector requirements. Its operating temperature range from -40°C to 105°C allows use in both low and high temperature scenarios, making it ideal for manufacturing, automation, robotics, and instrumentation.

This through hole pin header accommodates solder termination and provides a straight orientation and unshrouded design to facilitate easy insertion and inspection. The tail pin length of 3 mm and mating pin length of 7.9 mm ensure reliable and stable mechanical connection. Designed and manufactured in Germany, it meets rigorous quality expectations for electronic component performance.

The pin header offers 20 male contacts aligned in one row. Board-to-board system with a 2.54 mm pitch ensures compatibility with common industry standards. Housing is made from polyamide for durability. Gold-plated brass contacts provide excellent conductivity and corrosion resistance.

Supports continuous operation at temperatures between -40°C and 105°C. Designed for solder termination with an unshrouded configuration. Suitable for use in electronics manufacturing, automation, and industrial control systems.

Manufactured under strict quality controls in Germany. Provides a reliable and efficient connector solution for PCB applications.

EnvMart offers this precision pin header within its Electronics & Electricals category, specifically under PCB Pin Headers, designed to meet the demanding requirements of modern electronic manufacturing and prototyping.
