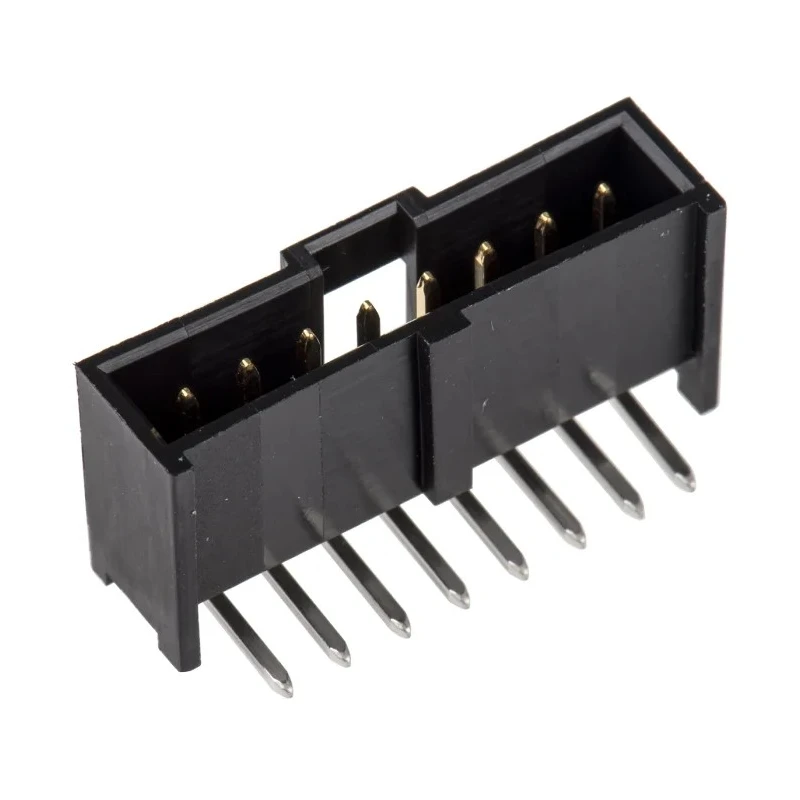

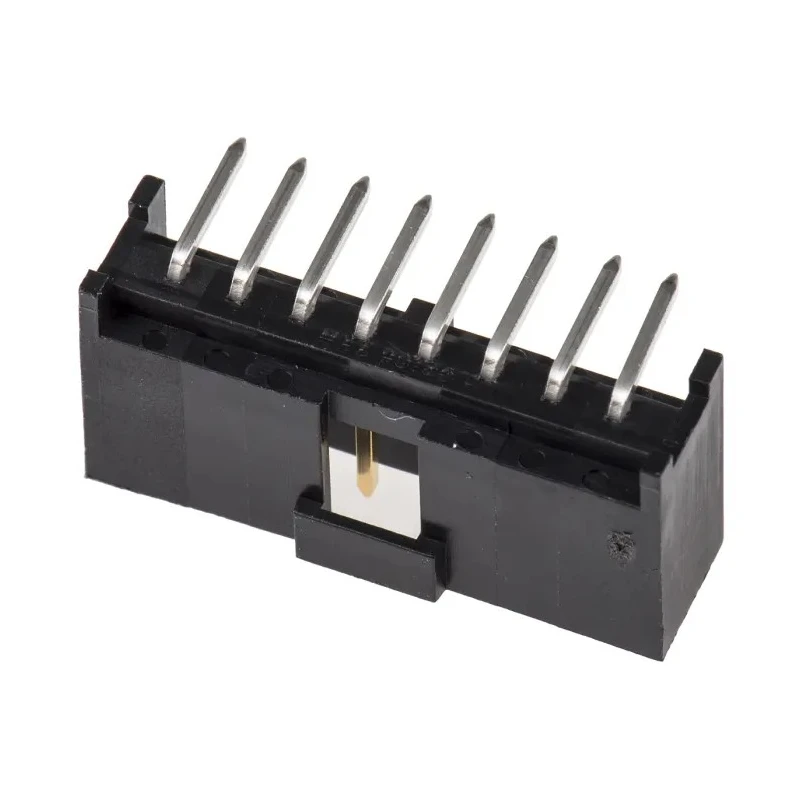

Molex C-Grid III Series Right Angle Through Hole PCB Header, 8 Contacts, 2.54 mm Pitch, 1 Row, Shrouded 90136-2208
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | C-Grid III |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.9mm |
| Mating Pin Length | 6.75mm |
Key Features
- Features 8 brass contacts plated with gold for reliable conductivity.
- Single row configuration with 2.54 mm pitch ensures compatibility with standard PCB layouts.
- Right angle orientation optimizes PCB mounting space.
- Housing made from durable polyester material for high insulation and mechanical strength.
- Suitable for currents up to 3A and voltages up to 350V.
- Operating temperature range from -55°C to 125°C ensures performance in harsh environments.
- Tail pin length of 2.9 mm and mating pin length of 6.75 mm for secure soldering and connection.
- Designed for solder termination with male contacts and shrouded connector for added safety.
Product Description
Molex 90136-2208 C-Grid III Series Right Angle Through Hole PCB Header is a high-quality electronic component designed for wire-to-board applications. This 8-contact shrouded header features a 2.54 mm pitch and a single row of male brass contacts plated with gold, enabling reliable, corrosion-resistant electrical connections.
The housing is constructed from sturdy polyester that provides excellent mechanical strength and electrical insulation, making it suitable for industrial, manufacturing, and electronic assembly environments. The right angle orientation facilitates efficient PCB space management, ideal for compact designs requiring robust connections.
This PCB header supports up to 3A current and 350V voltage, ensuring compatibility with many electronic systems. It operates reliably within a temperature range of -55°C to 125°C, accommodating industrial and environmental thermal stress. The 2.9 mm tail pin length and 6.75 mm mating pin length enhance solderability and secure mating with locking housings.
Built to industry standards with a shrouded design, it offers protection against accidental disconnections and ensures proper orientation during assembly. It is ideal for use in electronic components manufacturing, industrial control systems, and automation equipment.
8 gold-plated brass contacts ensure superior conductivity and corrosion resistance. Durable polyester housing withstands mechanical and thermal challenges. Right angle configuration maximizes PCB real estate efficiency. Shrouded design provides enhanced connection security and safety.
Rated for 3A current and 350V voltage for versatile usage. Wide operating temperature range suitable for harsh industrial environments. Reliable solder termination with appropriate pin lengths for secure connections. Explore the Molex range of PCB Headers at EnvMart for quality electronic connectors designed to meet industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 3A.
It is rated for a maximum voltage of 350V.
The pitch size is 2.54 mm, which ensures compatibility with standard PCB layouts.
This unit uses solder termination with male contacts.
It operates reliably within a temperature range of -55°C to 125°C.
This model features 8 contacts.
The housing is made from durable polyester material, providing high insulation and mechanical strength.
The tail pin length is 2.9 mm, which aids in secure soldering.
The mating pin length is 6.75 mm, designed for secure connections.
This model features a right angle orientation, optimizing PCB mounting space.
It is a shrouded connector, which provides added safety and protection against accidental disconnections.
It is suitable for wire-to-board applications in industrial, manufacturing, and electronic assembly environments.
