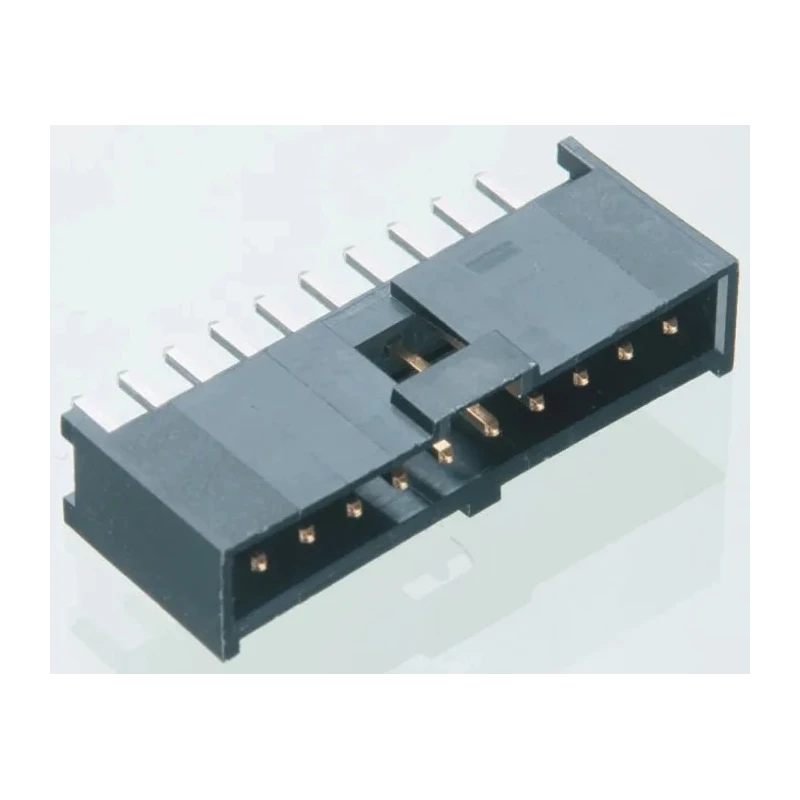

Molex C-Grid III Series Straight Through Hole PCB Header, 5 Contacts, 2.54 mm Pitch, 1 Row, Shrouded 90136-1205
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Molex |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | C-Grid III |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 5 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.9mm |
| Mating Pin Length | 6.75mm |
Key Features
- The 5 gold-plated brass contacts ensure excellent conductivity and corrosion resistance.
- The shrouded design provides protection for the contacts and secure mating.
- Constructed with a durable polyester housing for reliable insulation and mechanical strength.
- Operating temperature ranges from -55°C to 125°C for versatile environmental tolerance.
- Designed for through-hole mounting with a single row configuration for ease of PCB integration.
- Rated for 3A current and 350V voltage, suitable for moderate power circuits.
- Tail pin length of 2.9 mm and mating pin length of 6.75 mm ensure stable mechanical and electrical connection.
- Termination type is solder, compatible with standard PCB soldering processes.
Product Description
The Molex 90136-1205 C-Grid III Series Straight Through Hole PCB Header is designed for electronic manufacturing requiring reliable, high-quality wire-to-board connection. This product features a robust polyester housing with shrouded contacts, protecting pins and preventing accidental disconnections during assembly or operation. Its straight orientation and single row design with 5 gold-plated brass contacts make it an excellent choice for compact PCB designs.
Operating from temperatures as low as -55°C up to 125°C, this header fits in both industrial and commercial electronics applications, including automation, instrumentation, and consumer electronics. Rated at 3A and 350V, it supports moderate current and voltage loads with stable performance.
The recommended mounting method is through-hole, suitable for secure PCB insertion and soldering, making assembly efficient and reliable. Pin lengths are precisely engineered with 2.9 mm tail pins and 6.75 mm mating pins for optimal mechanical and electrical contact.
Typical industrial use cases include PCB assembly for control systems, power supply units, and embedded systems. The shrouded design enhances safety by preventing damage and accidental short circuits during installation.
The 5 gold-plated brass contacts offer excellent conductivity. Robust polyester housing ensures durability and insulation. Effective operation in harsh temperature environments. Through-hole mount for dependable PCB integration.
Supports 3A current and 350V voltage applications. Shrouded contact design for secure mating and protection. Standard 2.54 mm pitch and one-row configuration optimize space. Explore the full range of Molex PCB connectors and related products on EnvMart for your electronic and manufacturing needs.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this model is 350V.
This header is rated for a current of 3A.
The pitch size for this model is 2.54 mm.
It is designed for through-hole mounting, which allows for secure PCB integration.
The housing is made of durable polyester, and the contacts are made of gold-plated brass.
The operating temperature range is from -55°C to 125°C.
This model features 5 contacts.
The tail pin length is 2.9 mm.
The mating pin length is 6.75 mm.
This header is shrouded, providing protection for the contacts and secure mating.
The termination type is solder, compatible with standard PCB soldering processes.
It is suitable for applications in industrial and commercial electronics, including automation and instrumentation.
