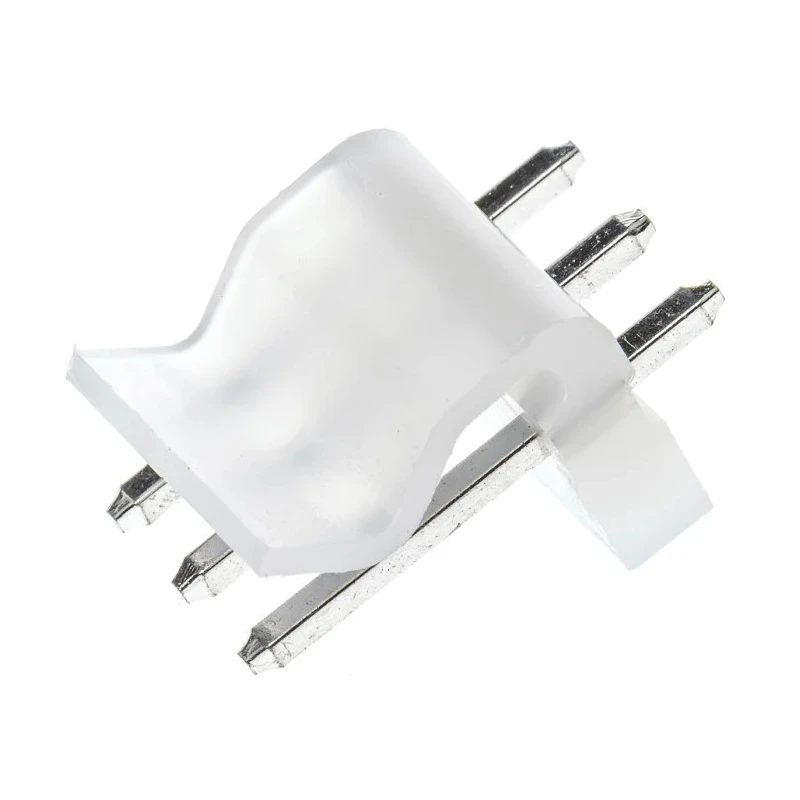

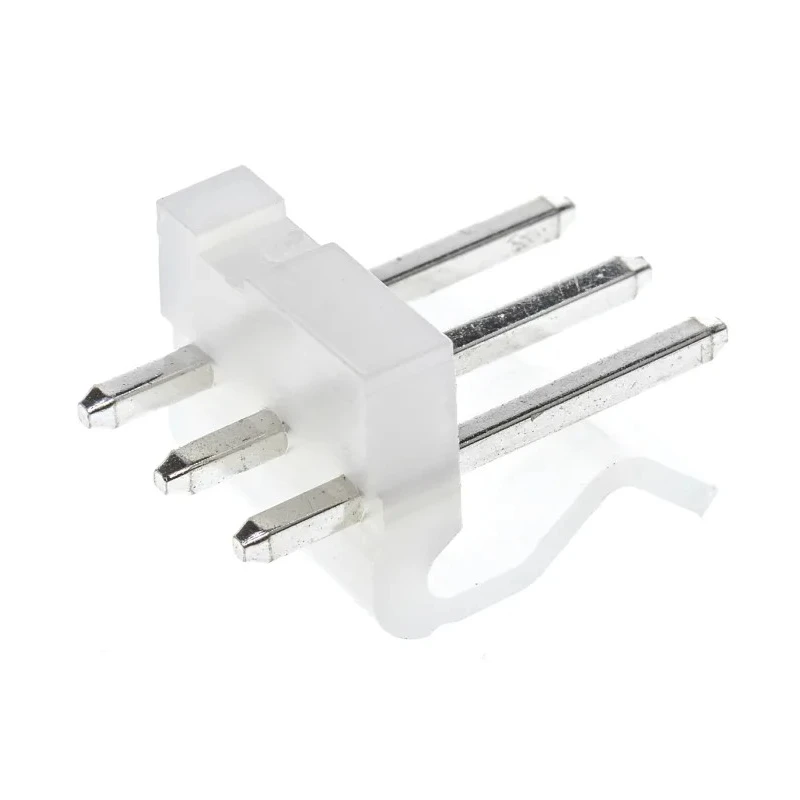

Molex KK 396 Series Straight Through Hole Pin Header 3 Contact 3.96 mm Pitch 1 Row Unshrouded 09-65-2038
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 7A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | KK 396 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 3.96mm |
| Contact Plating | Tin |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.6mm |
Key Features
- Features a nylon housing for durability and electrical insulation.
- The male brass contacts have tin plating for corrosion resistance and reliable conductivity.
- Operates within a temperature range of -40°C to 105°C suitable for demanding environments.
- Designed for a current rating of 7 amperes in low-power electrical applications.
- Unshrouded with a single row layout enabling easy front-facing straight orientation mounting.
- Terminated by solder tail with a pin length of 3.6 mm for secure PCB attachment.
- RoHS compliant and suitable for robotic systems, control panels, computer devices, and household appliances.
Product Description
Molex 09-65-2038 KK 396 Series Straight Through Hole Pin Header is a high-quality wire-to-board connector used in various electronic assemblies. Featuring 3 male brass contacts plated with tin, the pin header ensures excellent electrical conductivity and corrosion resistance. With a pitch of 3.96 mm and a single row of pins, this unshrouded header offers straightforward front-facing mounting through integrated through holes, facilitating efficient soldering to printed circuit boards.
The nylon housing provides robust structural support and electrical insulation while supporting operations in extreme temperature conditions from -40°C up to 105°C. Rated for currents up to 7 amperes, it is ideal for low-power applications requiring reliable signal transmission and multiple conductor connections.
Common industrial and commercial applications include use in robotics systems, control panels, computer devices, and household appliances. The pin header has a durability of 30 mating cycles, allowing multiple connect-disconnect operations with minimal wear and tear.
Installation is simplified due to the solder termination type with a 3.6 mm tail pin length, offering secure mechanical and electrical bond to PCBs. Its unshrouded design allows easy access and inspection of the contacts.
Durable nylon housing ensures electrical insulation and mechanical integrity. Tin-plated brass contacts resist corrosion and maintain conductivity. Wide temperature tolerance suitable for industrial environments. 7 ampere current rating supports various low-power electronic devices.
Single-row, unshrouded straight orientation simplifies assembly. Solder tail termination with 3.6 mm pin length provides firm PCB connection. Designed for reliability with 30 mating cycles of durability.
This pin header is manufactured to stringent quality standards and originates from China. Its versatility makes it suitable for demanding industrial, laboratory, HVAC, manufacturing, and commercial electronics applications. Explore further PCB connectors and related components on EnvMart for comprehensive connectivity solutions.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 7 amperes, making it suitable for low-power electrical applications.
The pitch of this pin header is 3.96 mm, allowing for efficient spacing between contacts.
It features a solder termination type with a tail pin length of 3.6 mm for secure attachment to PCBs.
This pin header operates within a temperature range of -40°C to 105°C, suitable for demanding environments.
This model includes 3 male contacts, designed for reliable signal transmission.
The housing is made of nylon, providing durability and electrical insulation.
This connector is unshrouded, allowing for easy access and inspection of the contacts.
It is commonly used in robotics systems, control panels, computer devices, and household appliances.
The contacts are made of brass and are plated with tin for corrosion resistance and reliable conductivity.
This model is designed to endure 30 mating cycles, allowing for multiple connect-disconnect operations.
This pin header is manufactured in China, adhering to stringent quality standards.
The orientation of this pin header is straight, facilitating front-facing mounting.
