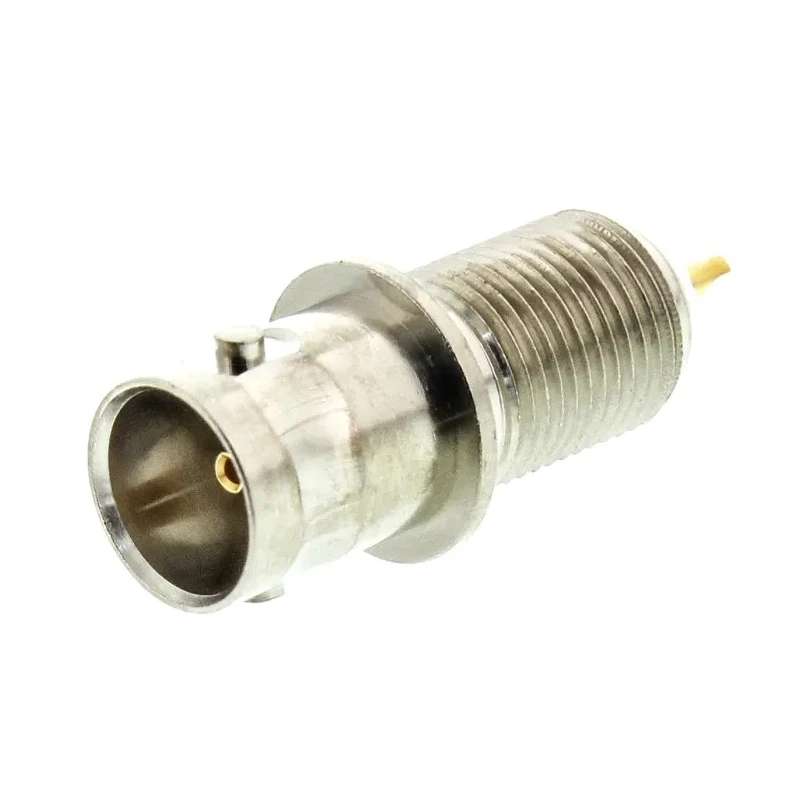

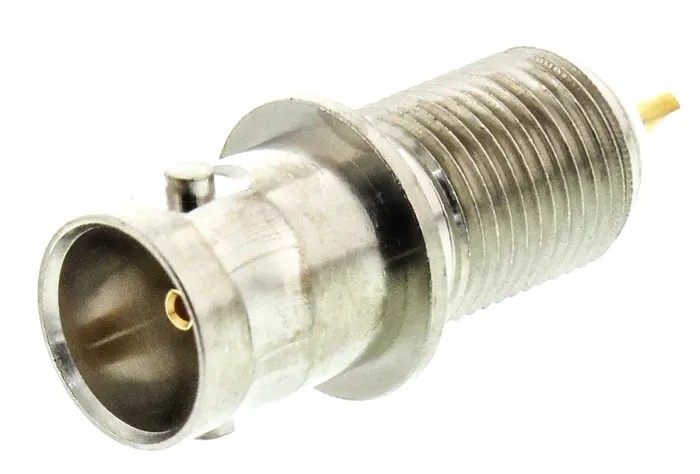

Telegartner BNC Series Coaxial Connector Panel Mount Female BNC, 75 Ω, Straight Body Solder J01003C1286
Specifications
| Country of Origin | Germany |
|---|---|
| Size | Standard |
| Brand | Telegartner |
| Orientation | Straight |
| Model | J01003C1286 |
| Mount Type | Panel Mount |
| Operating Frequency | 4GHz |
| Contact Material | Beryllium Copper |
| Series | BNC |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 75Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
Key Features
- The connector features a nickel-plated body for durability.
- Gold-plated beryllium copper contacts ensure excellent conductivity.
- Operates reliably up to 4 GHz frequency for signal and video transmission.
- Designed for panel mount with a bulkhead configuration for secure installation.
- Operates within a wide temperature range from -65°C to 165°C.
- Termination type is solder, offering robust electrical connection.
- Bayonet coupling mechanism provides quick connect and disconnect capability.
- Connector polarity is normal with female contact gender suitable for various applications.
Product Description
Telegartner J01003C1286 is a high-quality BNC Series Coaxial Connector designed for panel mounting with female connector gender and straight body solder termination. It features 75 Ω impedance suitable for signal, data, and video transmission up to 4 GHz frequency, making it highly versatile for a wide range of industrial and commercial electronic applications.
The connector’s robust nickel-plated body ensures durability in demanding environments, while the gold-plated beryllium copper contacts provide excellent conductivity and corrosion resistance. It is designed as a bulkhead model allowing easy panel mount installation with a secure bayonet coupling mechanism that requires only a quarter turn to connect or disconnect.
Operating temperature range spans from -65°C up to 165°C, suitable for harsh conditions. The solder termination type provides sturdy and reliable electrical connections in various electronic and communication equipment.
This connector is manufactured in Germany, ensuring strict quality standards. Suitable for industrial, laboratory, audio/video, telecommunications, and signal processing applications, it supports normal polarity with female contact gender.
The connector features nickel body plating to enhance strength and corrosion resistance. Gold plating on beryllium copper contacts ensures superb electrical performance. Operates up to 4 GHz, making it suitable for high-frequency applications.
Panel mount bulkhead style for secure fitting and ease of installation. Wide operating temperature range from -65°C to 165°C accommodates diverse environments. Solder termination type for firm and durable contact connection.
Bayonet coupling provides quick and secure connection. Female connector gender and normal polarity for compatibility across systems. Explore more Coaxial Connectors and related electronic components at EnvMart to find reliable solutions for your projects and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This BNC connector operates reliably up to a frequency of 4 GHz, making it suitable for signal and video transmission applications.
The impedance rating of this connector is 75 Ω, which is standard for coaxial connectors used in video and data transmission.
It uses a solder termination type, providing a robust electrical connection suitable for various electronic applications.
The operating temperature range for this connector spans from -65°C to 165°C, accommodating diverse environmental conditions.
This model is designed for panel mounting with a bulkhead configuration, allowing for secure installation.
The contacts are made of beryllium copper and are gold-plated to ensure excellent conductivity and corrosion resistance.
The connector features a nickel-plated body, which enhances its strength and resistance to corrosion.
The connector has a female gender, making it suitable for various applications that require a female connection.
It utilizes a bayonet coupling mechanism, which allows for quick connect and disconnect capabilities with only a quarter turn required.
This connector is manufactured in Germany, ensuring adherence to strict quality standards.
It is suitable for a wide range of applications including industrial, laboratory, audio/video, telecommunications, and signal processing.
The orientation of this connector is straight, which is typical for panel mount applications.
