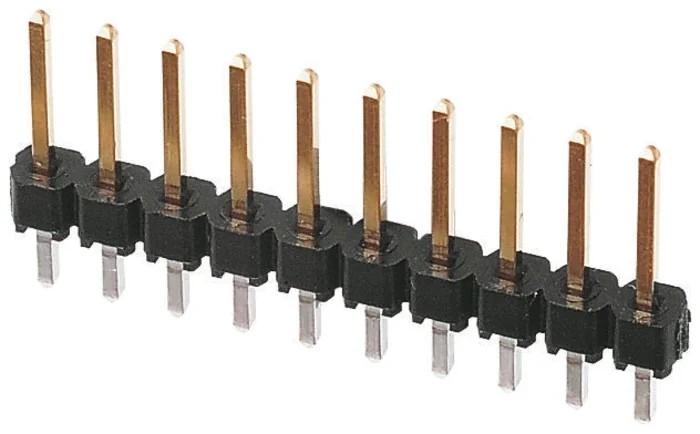

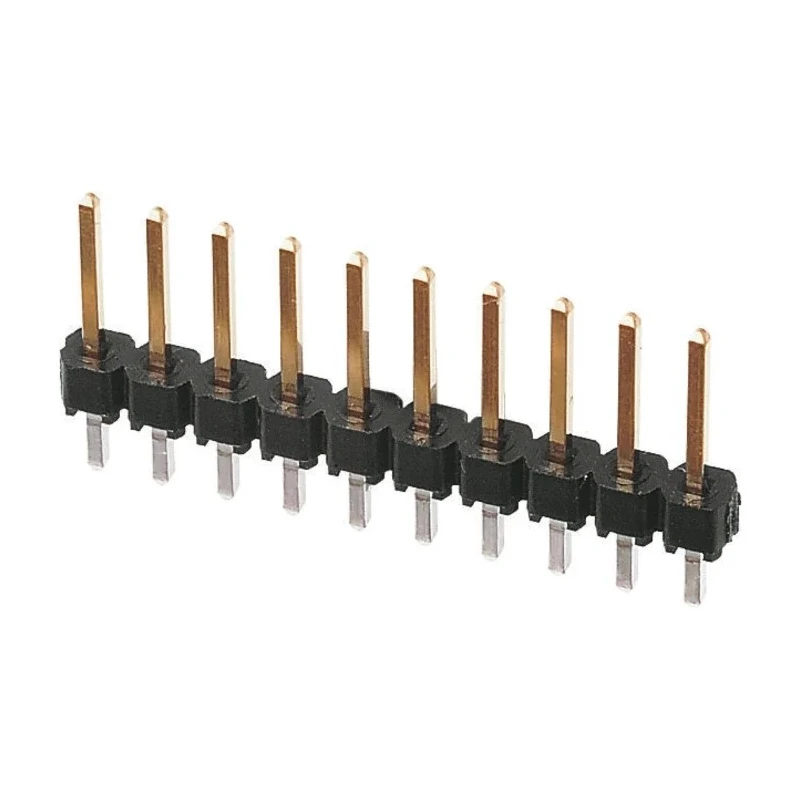

Molex C-Grid III Series Straight Through Hole Pin Header, 18 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded 90120-0778

Molex 90120-0778 is a C-Grid III Series Straight Through Hole Pin Header designed for PCB interconnection systems. Featuring 18 contacts arranged in a single row with a 2.54 mm pitch, this unshrouded header provides precision and flexibility with its breakaway design, allowing customization of pin length to meet specific design requirements. Its straight orientation and through hole mounting enable reliable attachment to printed circuit boards.

The connector contacts are made of brass and plated with gold to ensure superior conductivity and corrosion resistance. It supports a continuous current rating of 3 amperes and can withstand voltages up to 350 volts, making it suitable for a wide range of applications across industrial, computer, medical, telecommunications, and automotive safety electronics industries.

Operating temperature range from -55°C to 125°C ensures reliable performance in varying environmental conditions. The pins exhibit high retention force to guarantee secure mating with matching sockets or crimp housings. The 90120-0778 header is compatible with C-Grid III series sockets and housings for both board-to-board and wire-to-board connections, offering broad design flexibility.

Applications include use in desktop PCs, servers, monitors, medical devices, white goods, exchange stations, industrial equipment, and automotive safety systems. This pin header is essential for designing reliable, high-performance PCB interconnection solutions.

Designed for secure wire-to-board connections in industrial and electronic applications. Features a straight orientation and breakaway design for customizable length. Contacts have gold plating and brass material for reliable electrical conductivity.

Supports a current rating of 3A and voltage rating of 350V. Suitable operating temperature range from -55°C to 125°C ensures durability in harsh conditions. Through hole mount type ensures stable mechanical mounting on PCB.

Pins have a high retention force to maintain secure mating connection. Compatible with C-Grid III sockets and crimp housings for versatile board-to-board and wire-to-board applications. Explore our PCB Headers category to find compatible connectors and accessories for your interconnection needs on EnvMart.
