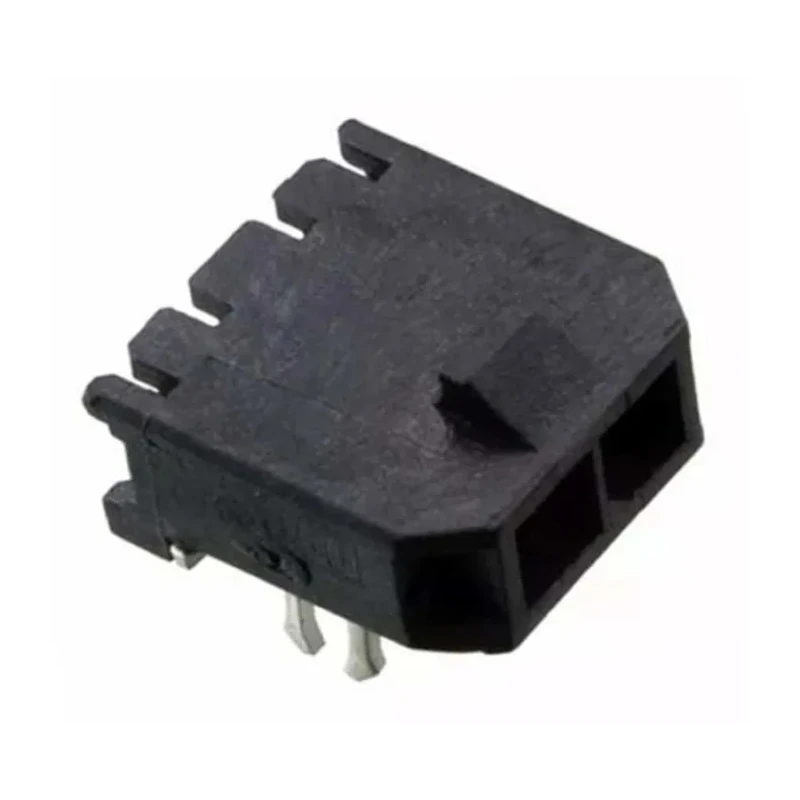

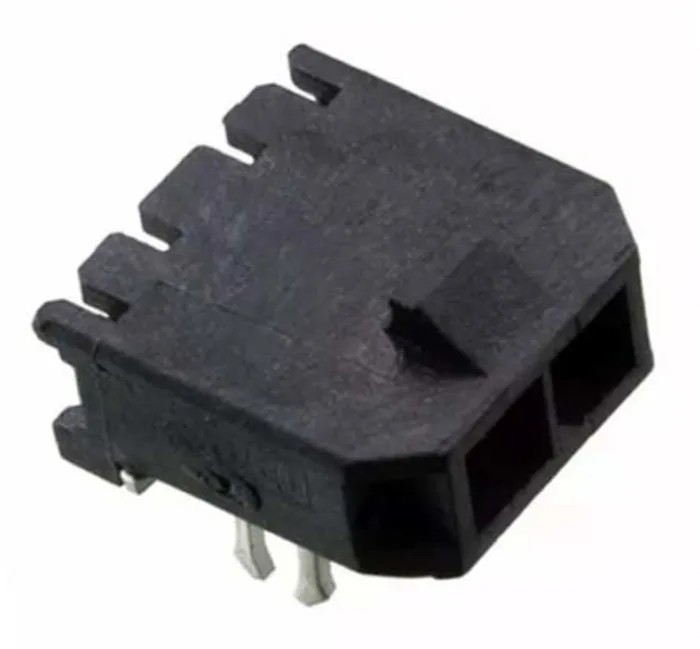

Molex Micro-Fit 3.0 Series Right Angle Through Hole PCB Header 2 Contacts 3 mm Pitch Shrouded 43650-0203

Free Delivery in India | Lowest Global Shipping Charges

Molex Micro-Fit 3.0 Series Right Angle Through Hole PCB Header 2 Contacts 3 mm Pitch Shrouded 43650-0203

Name: Molex Micro-Fit 3.0 Series Right Angle Through Hole PCB Header 2 Contacts 3 mm Pitch Shrouded 43650-0203
Brand: Molex
SKU: 206926
Price: 1.42 USD
Availability: InStock



Category PCB Headers Brand Molex Condition New

Specifications

Country of Origin	Mexico
Voltage	250V
Brand	Molex
Orientation	Right Angle
Current	5A
Mount Type	Through Hole
Housing Material	Thermoplastic
Contact Material	Brass
Series	Micro-Fit 3.0
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	3mm
Contact Plating	Tin
Number of Contacts	2
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Compact wire-to-board connector with high current capacity of 5A.
Right angle orientation ensures effective PCB mounting.
Thermoplastic housing material rated UL 94V-0 for high temperature resistance.
Positive latching mechanism for secure mating and accidental disconnection prevention.
Solder termination type with through hole mount and solderable metal press-fit retention clips.
Operating temperature range from -40°C to 105°C for reliable performance.
Brass contacts plated with tin for corrosion resistance.
3 mm row pitch and one row configuration for compact design.

Product Description

Molex 43650-0203 Micro-Fit 3.0 Series Right Angle Through Hole PCB Header is a high-performance connector designed for wire-to-board applications. Featuring a 3 mm pitch and 2 male contacts in a single-row, shrouded housing configuration, it offers a combination of compact size and high current carrying capacity up to 5A. This connector is constructed with a thermoplastic housing that complies with UL 94V-0 standards, providing excellent heat resistance up to 265°C during reflow soldering.

The product's right angle orientation facilitates efficient PCB mounting and integrates solder termination with through hole mounting type. It includes solderable metal press-fit retention clips to ensure durability and reliable PCB retention. The positive latching with a locking ramp on the housing prevents accidental disconnects, enhancing operational safety during use.

Designed to withstand operating temperatures ranging from -40°C to 105°C, the connector is well suited for industrial and commercial use including military COTS, solar power systems, telecommunications, medical devices and data communication equipment. Brass contacts with tin plating ensure good conductivity and corrosion resistance.

High current carrying capacity in a compact footprint for space-saving PCB design. Shrouded housing for protection and insulation. Positive latching mechanism for reliable secure connections. Through hole mounting with solderable retention clips for strong PCB fixation.

Wide temperature range supports harsh environment applications. Suitable for multiple industries including military, medical, and telecommunications. Complies with relevant quality and safety standards ensuring dependable performance.

Set contains a Molex Micro-Fit 3.0 Series PCB header designed for reliable power and signal connections on printed circuit boards. This category includes high quality compact power connectors ideal for low to mid-range power distribution solutions in various technological sectors.
