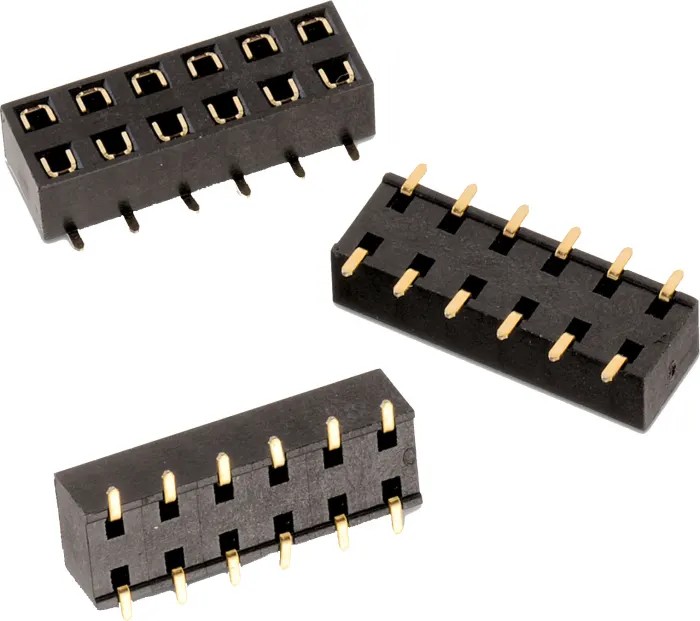

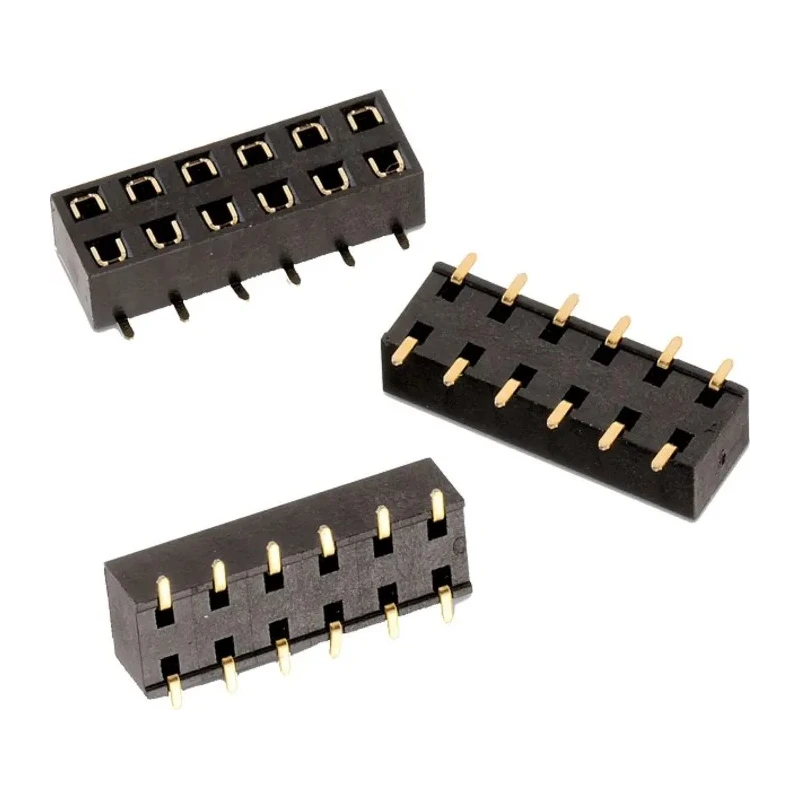

Wurth Elektronik WR-PHD Series Bottom Entry Surface PCB Socket, 18-Contact, 2 Row, 2.54 mm Pitch 610018243021

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik WR-PHD Series Bottom Entry Surface PCB Socket, 18-Contact, 2 Row, 2.54 mm Pitch 610018243021

Name: Wurth Elektronik WR-PHD Series Bottom Entry Surface PCB Socket, 18-Contact, 2 Row, 2.54 mm Pitch 610018243021
Brand: Wurth Elektronik
SKU: 112338
Price: 2.68 USD
Availability: InStock



Category PCB Sockets Brand Wurth Elektronik Condition New

Specifications

Country of Origin	Taiwan
Voltage	500V
Brand	Wurth Elektronik
Orientation	Bottom Entry
Current	3A
Mount Type	Surface
Contact Material	Copper Alloy
Series	WR-PHD
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	18
Connector System	Board-to-Board

Key Features

18 contacts arranged in 2 rows for secure connections.
Surface mount design suitable for PCB applications.
Bottom entry orientation enhances PCB layout flexibility.
2.54 mm pitch enabling standard spacing compatibility.
Supports up to 3A current and 500V voltage rating.
Constructed with copper alloy contacts plated in gold for durability.
Insulator made from PA9T material with UL94 V-0 flammability rating.
Operating temperature range from -40°C to +125°C.

Product Description

Wurth Elektronik 610018243021 is a WR-PHD series bottom entry surface PCB socket designed for board-to-board connections. Featuring 18 contacts in 2 rows with a 2.54 mm pitch, it provides a reliable and efficient connection interface suitable for various electronic assemblies.

This PCB socket employs a robust surface mount configuration allowing for straightforward integration onto printed circuit boards. The bottom entry orientation supports versatility in layout design and assembly. Its copper alloy contacts are gold plated, enhancing contact reliability and resistance to corrosion.

The insulator body is crafted from PA9T material, which holds a UL94 V-0 flammability rating, ensuring safety in electrical applications. With an operating temperature range of -40°C to +125°C, this component can function effectively in demanding industrial and commercial environments.

Designed to carry currents up to 3A and withstand voltages up to 500V, it is ideal for applications requiring moderate power transfer and signal integrity. The product is lead-free and RoHS compliant, aligning with environmental and safety requirements.

18 contacts arranged in 2 rows for secure connections. Surface mount design suitable for PCB applications. Bottom entry orientation enhances PCB layout flexibility. 2.54 mm pitch enabling standard spacing compatibility. Supports up to 3A current and 500V voltage rating.

Copper alloy contacts plated with gold for durability and reliability. PA9T insulator material with UL94 V-0 flammability rating. Operating temperature range from -40°C to +125°C. Lead-free and RoHS compliant ensuring environmental safety.

Manufactured in Taiwan, Province Of China.

This Wurth Elektronik WR-PHD series socket is well suited for electronics manufacturing, industrial machinery, and quality-focused PCB assembly applications. It offers durability and compliance required in modern electronic designs.
