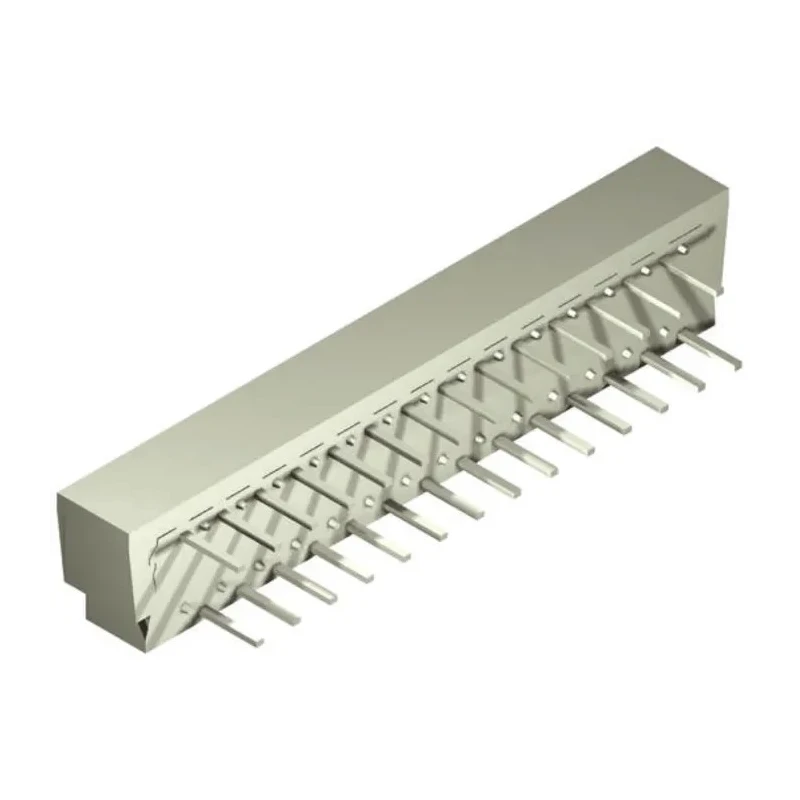

Molex 5597 1.25 mm Pitch 17 Way Right Angle Female FPC Connector, Solder 39-53-2174
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 200V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | 5597 |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Contact Plating | Tin Bismuth over Nickel |
| Number of Contacts | 17 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
Key Features
- Featuring a right angle female connector with 17 contacts for reliable circuit connections.
- Easy-On FFC/FPC sub type designed for seamless solder termination.
- Constructed with phosphor bronze contacts plated with tin bismuth over nickel for optimal conductivity and corrosion resistance.
- Housing is made of durable polybutylene terephthalate ensuring mechanical stability.
- Rated for 1A current and 200V voltage applications with a maximum operating temperature of 80°C.
- Through-hole mount type with a slide-type actuator allowing easy insertion and secure locking.
- Designed for space-saving applications with a 1.25 mm pitch between contacts.
- Suitable for automotive and electronic applications requiring compact, reliable FPC connections.
Product Description
Molex 39-53-2174 is a high-quality 1.25 mm pitch, 17 way right angle female FPC connector designed for reliable and compact printed circuit board interconnections. This connector features a zero insertion force (ZIF) mechanism facilitated by a slide-type actuator that secures the flexible printed circuit (FPC) without damage during insertion.
The connector's contacts are made from phosphor bronze and plated with tin bismuth over nickel, offering excellent electrical conductivity and resistance to corrosion. The housing features polybutylene terephthalate material, providing mechanical strength and stability in demanding environments.
This component operates effectively within a voltage rating of 200V and supports current up to 1 ampere, suitable for a range of automotive and electronic applications requiring space-saving designs owing to its 1.25 mm contact pitch and right angle configuration. The connector is a through-hole mount type with a locking mechanism that ensures the connector stays securely in place during operation.
The operating temperature range of -20°C to 80°C allows for use in varied climatic and industrial settings, making it an optimal choice for automotive and other electronics requiring durable, compact FPC connectors.
Right angle female FPC connector with 17 contacts ensures high-density connection. Zero insertion force (ZIF) mechanism reduces wear and enables repeat cycling. Slide type actuator facilitates easy and secure FPC insertion.
Phosphor bronze contacts with tin bismuth plating resist corrosion and enhance conductivity. Polybutylene terephthalate housing ensures durability and mechanical stability. Through-hole mounting with locking mechanism for robust PCB attachment.
Voltage rated at 200V and current rated at 1A meet versatile application requirements. Operating temperature range from -20°C to 80°C suits a broad range of environments.
This Molex 5597 series connector is ideal for industrial electronic applications including automotive electronics, where compact, reliable, and easy-to-install FPC connectors are essential. The product is manufactured in Japan under the Molex brand known for its quality and reliability. Explore an extensive range of FPC Connectors at EnvMart to meet your high-performance assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a voltage of 200V, making it suitable for various electronic applications.
It supports a current capacity of up to 1A, which is appropriate for many automotive and electronic applications.
The contact pitch for this connector is 1.25 mm, facilitating space-saving designs in circuit connections.
The contacts are made from phosphor bronze and are plated with tin bismuth over nickel, while the housing is constructed from polybutylene terephthalate.
This connector operates effectively within a temperature range of -20°C to 80°C, suitable for diverse environments.
It features a through-hole mount type, which allows for secure attachment to printed circuit boards.
This connector has a right angle orientation, which helps in saving space in electronic assemblies.
Yes, it features a zero insertion force (ZIF) mechanism that allows for easy insertion and reduces wear on the contacts.
The Molex 5597 connector has 17 contacts, enabling reliable circuit connections in compact designs.
This model uses a solder termination type, ensuring a secure electrical connection.
The connector is manufactured in Japan, under the Molex brand known for its quality in electronic components.
It is suitable for automotive and electronic applications that require compact and reliable FPC connections.
