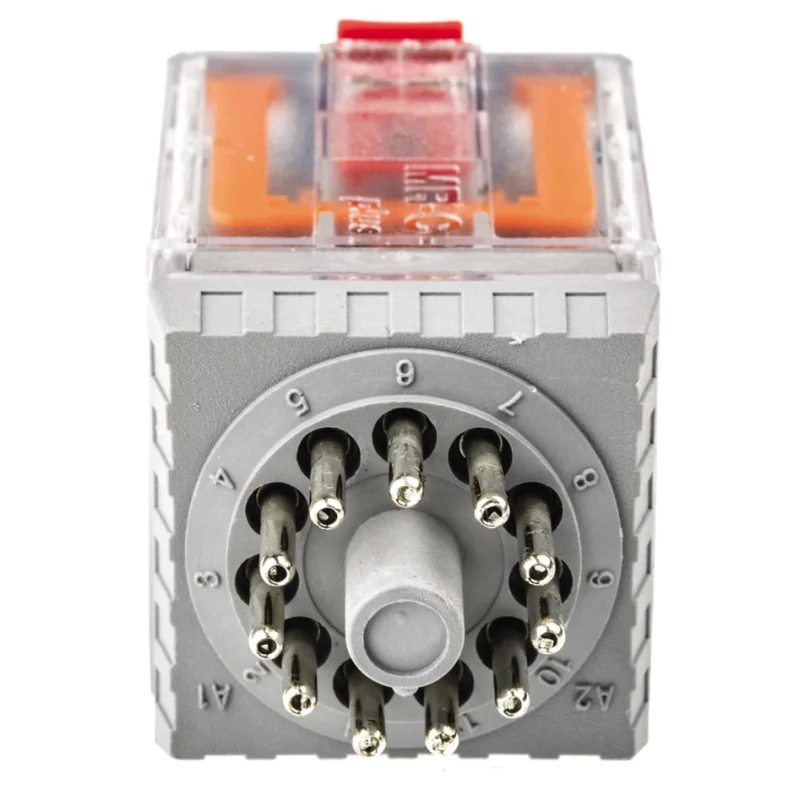

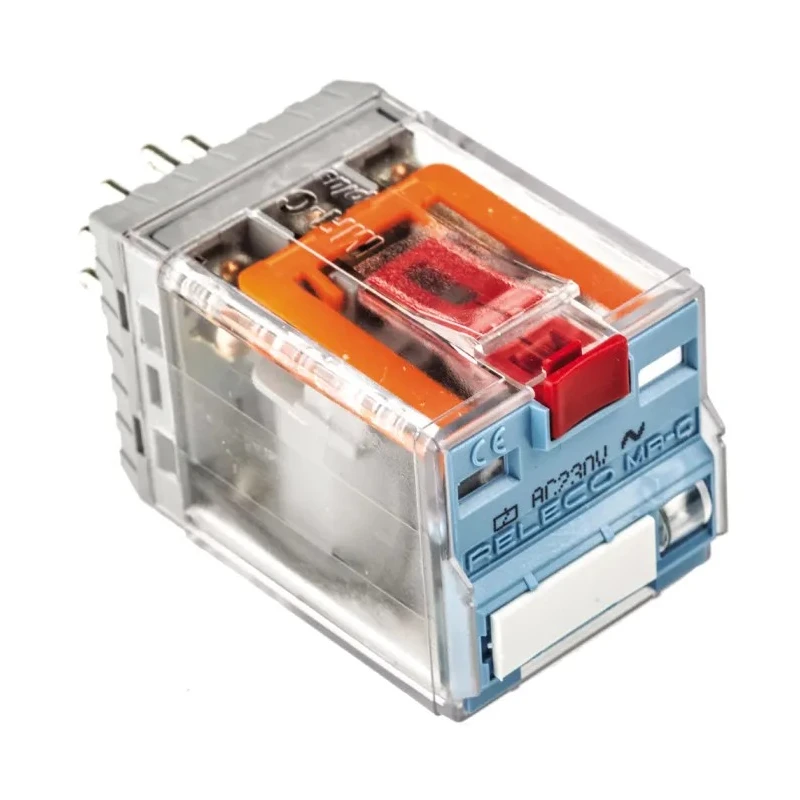

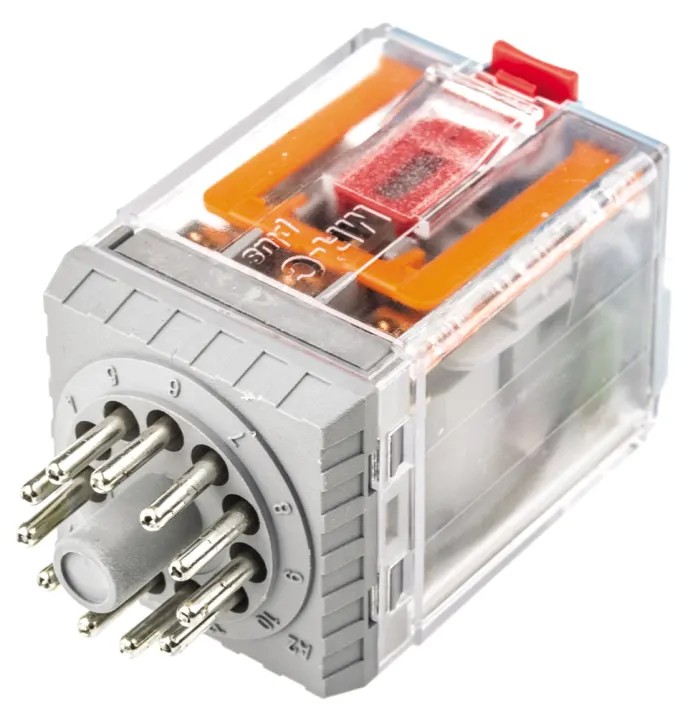

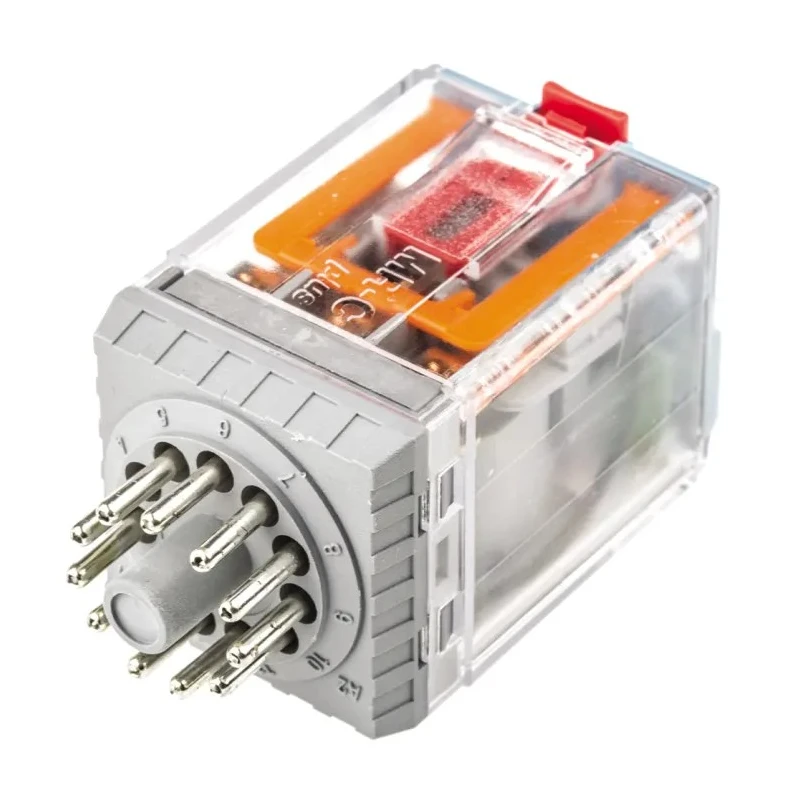

Releco Power Relay 230V AC Coil 10A Switching Current 3PDT MRC Series C3-A30X-230VAC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Releco |
| Height | 66mm |
| Length | 35mm |
| Model | C3-A30X-230VAC |
| Width | 35mm |
| Contact Material | Silver Alloy |
| Series | MRC |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | 3PDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Plug-In |
| Standards/Approvals | RoHS |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Coil Resistance | 7kΩ |
| Coil Voltage | 230V ac |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 2.2W |
| RELAY+IND. 240VAC, 11-PINBrand | NEUTRAL |
| Turck Plug In Non-Latching Relay, 220V ac Coil, 10A Switching Current, 3PDTBrand | Turck |
Key Features
- Operates with a 230V AC coil delivering 2.2W coil power.
- Features a 3PDT contact configuration with 10A switching capacity.
- Plug-in terminal type ensures easy and secure installation.
- Durable silver alloy contact material for long-lasting performance.
- Operating temperature range from -40°C to 60°C.
- Equipped with a test button, LED indicator, and mechanical flag for status indication.
- Compact dimensions support flexible mounting options.
- Complies with RoHS and international quality standards.
Product Description
Releco C3-A30X-230VAC Power Relay is a high-quality MRC series 3-pole plug-in mount non-latching relay suited for industrial, electrical automation, and control applications. It is actuated by a 230V AC coil and delivers a robust switching current of 10A, making it reliable for controlling AC and DC loads within specified voltage limits.
This relay features a triple-pole double-throw (3PDT) contact arrangement and plug-in terminals for easy replacement and maintenance. The contact material is a silver alloy offering enhanced conductivity and durability ensuring long operational life under demanding conditions.
The relay operates efficiently within a temperature range of -40°C to 60°C, with coil resistance around 7kΩ and coil power consumption of 2.2W, supporting energy-efficient operation. Its compact dimensions (35mm length, 35mm width, 66mm height) allow for flexible mounting in constrained spaces.
Additional features include a dual-function color-coded test button for momentary or latched operation, an LED indicator for coil status, and a mechanical flag indicator to signal contact position.
The product is RoHS compliant and built to international standards including ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007, assuring environmental safety and quality compliance. Manufactured in India, this relay is suitable for industries such as manufacturing, HVAC control, electrical panel automation, and power distribution systems.
Operates with a 230V AC coil delivering 2.2W coil power. Features a 3PDT contact configuration with 10A switching capacity. Plug-in terminal type ensures easy and secure installation. Durable silver alloy contact material for long-lasting performance.
Operating temperature range from -40°C to 60°C. Equipped with a test button, LED indicator, and mechanical flag for status indication. Compact size supports flexible mounting options. Complies with RoHS and international quality standards.
This Releco power relay offers robust performance and reliability for industrial and commercial electrical control applications. Browse more Power Relays and related automation components at EnvMart for your specific application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 230V AC.
This model has a switching capacity of 10A.
It features a 3PDT (Triple Pole Double Throw) contact configuration.
The operating temperature range is from -40°C to 60°C.
The coil power consumption is 2.2W.
The contacts are made of durable silver alloy material.

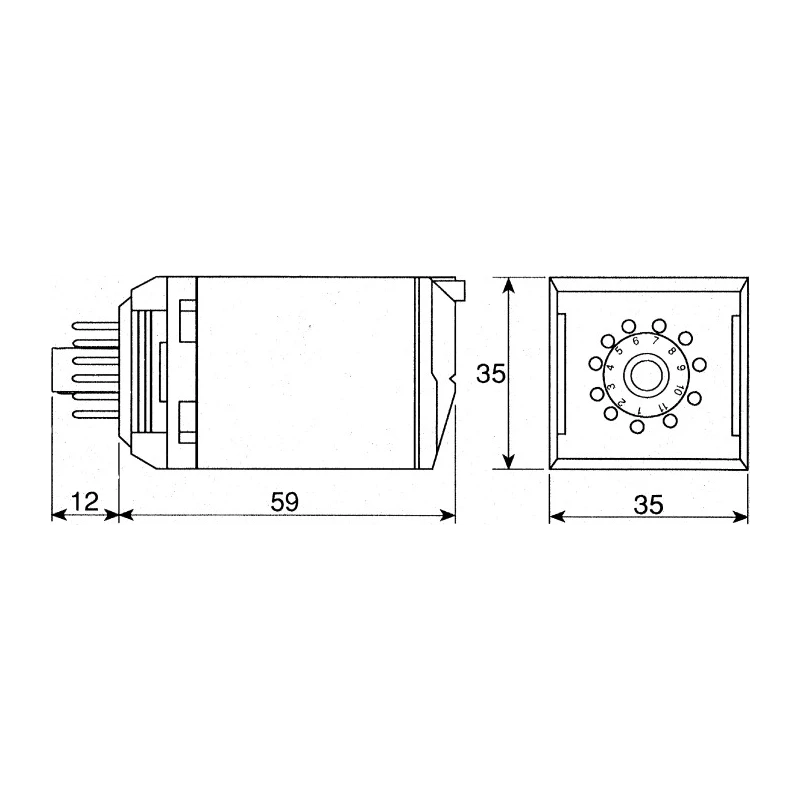

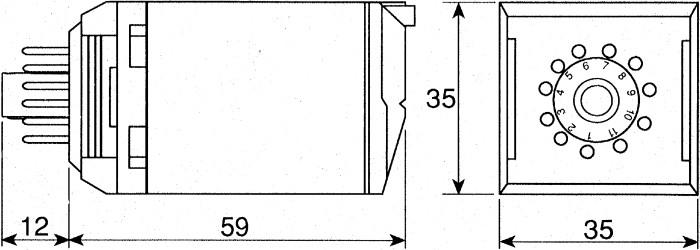

The dimensions are 35mm in length, 35mm in width, and 66mm in height.
It is designed with plug-in terminals for easy and secure installation.
It complies with RoHS and international standards including ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007.
The coil resistance is approximately 7kΩ.
It is suitable for industrial, electrical automation, and control applications.
Yes, it is equipped with a test button, LED indicator, and a mechanical flag for status indication.
