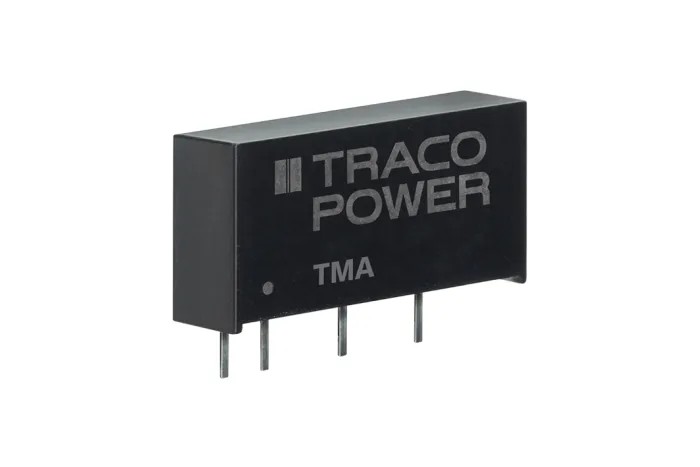

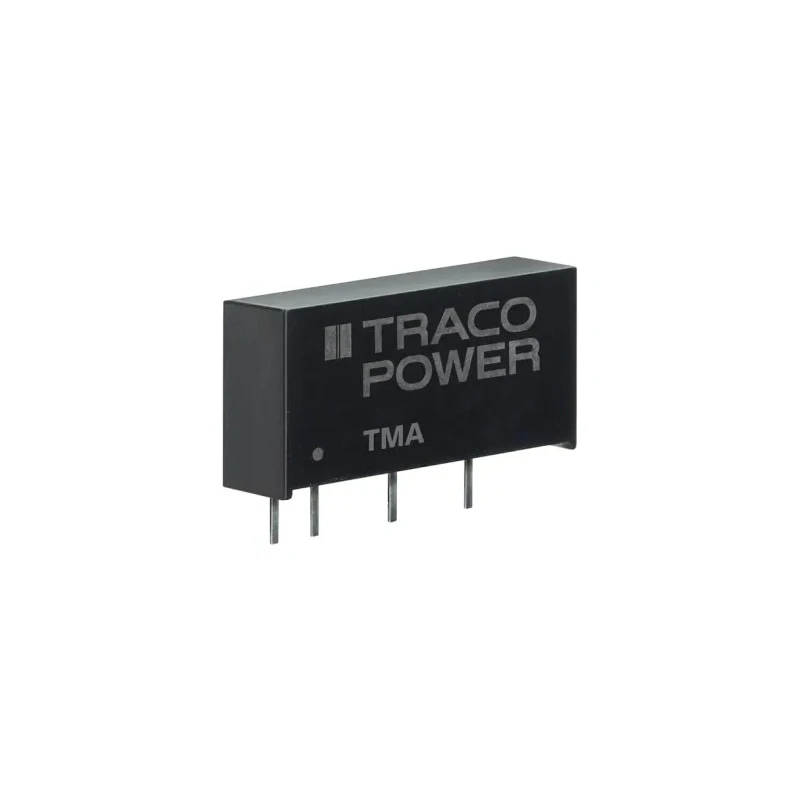

TRACOPOWER 1W SIP DC/DC Converter Through Hole 15V 67mA Input 10.8V to 13.2V TMA 1215S

TRACOPOWER TMA 1215S is a 1 Watt SIP series DC/DC converter designed for isolated power conversion in compact electronic systems. This converter outputs 15V at 67mA with input voltages ranging between 10.8V and 13.2V, housed in a through-hole DIP (dual in-line package) format.

The device features a robust operating temperature range from -40°C to +85°C, suitable for industrial and harsh environment applications. With a high isolation voltage rating of 1000 VDC, it provides effective electrical separation between input and output circuits enhancing circuit protection.

Thanks to its small footprint (19.5 mm length and 10.2 mm depth), it is ideal for space-critical printed circuit board power distribution. The converter achieves up to 80% efficiency, minimizing heat generation and power wastage, thus optimizing system performance.

The TMA series offers a solid Mean Time Between Failures (MTBF) rating of 2.3 million hours, reflecting reliable long-term operation. It complies with RoHS lead-free standards, supporting environmental sustainability requirements.

Compact single-in-line (SIP) package for minimal PCB space use. High isolation voltage of 1000 VDC for safety. Wide temperature range ensures reliability in varied conditions. High efficiency optimizes power usage. Single output DC/DC converter delivering stable power.

Through-hole mounting allows secure PCB attachment. Industrial applications including embedded power supplies and isolated power rails. Lead-free and RoHS compliant manufacturing standards. Long MTBF ensures dependable operation over time.

This DC/DC converter is ideally suited for industrial, electronic component manufacturing, power and connector assemblies, and embedded system applications where miniature isolated power sources are required.
