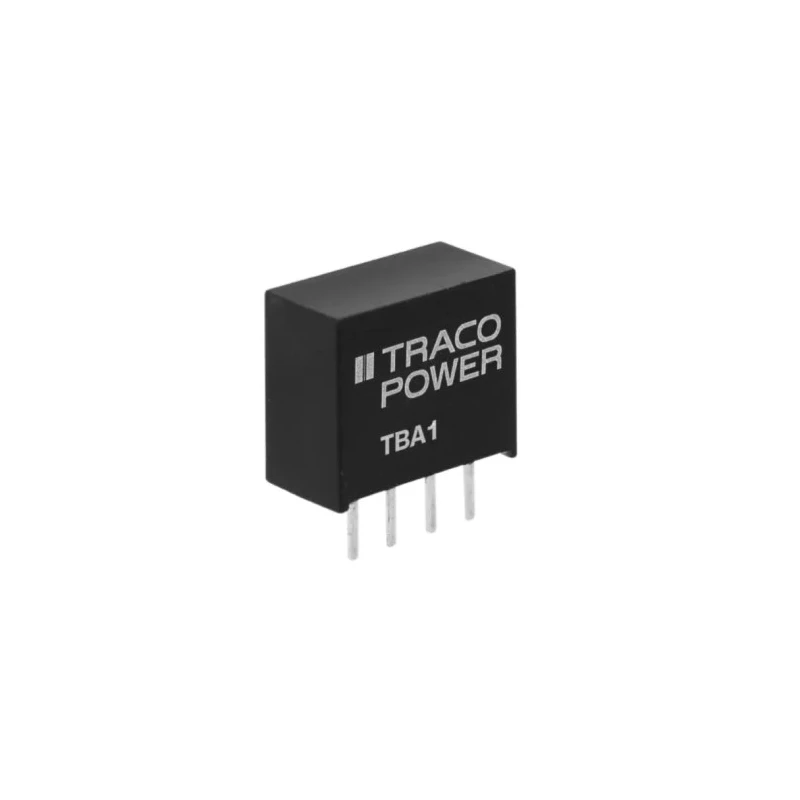

TRACOPOWER 1 Watt SIP-4 DC/DC Converter 9V DC Output 110mA 21.6-26.4V DC Input TBA 1-2419
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TBA 1 DC/DC Converter, 9V dc/ 110 mA, 2 |
| Brand | TRACOPOWER |
| Efficiency | 80% |
| Length | 11.68mm |
| Model | TBA 1-2419 |
| Depth | 9.7mm |
| Width | 6mm |
| Mount Type | PCB |
| Series | TBA 1 |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP-4 |
| Minimum Operating Temperature | -40°C |
| MTBF | 2000000h |
| Number of outputs | 1 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 26.4V dc |
| Minimum Input Voltage | 21.6V |
| Output Voltage 1 | 9V dc |
| Output Current 1 | 110mA |
| Isolation Voltage | 1.5kV dc |
| I/O isolation | 1500 VDC |
Key Features
- This converter operates with an input voltage range from 21.6V to 26.4V DC.
- It features an isolation voltage of 1.5kV DC for enhanced safety.
- The device supports a wide operating temperature range from -40°C to +85°C without derating.
- High efficiency of approximately 80% ensures low power loss.
- The package type is SIP-4, with compact dimensions of 11.68mm length, 9.7mm depth, and 6mm width.
- Continuous short circuit protection is integrated into the design.
- MTBF (Mean Time Between Failures) is rated at 2,000,000 hours ensuring reliability.
- Designed primarily for PCB mounting in space and cost critical applications.
Product Description
TRACOPOWER TBA 1-2419 is a 1 Watt DC/DC converter designed for efficient and reliable voltage conversion in industrial and electronic applications.
It provides a 9V DC output at 110mA current with operation over an input voltage range of 21.6V to 26.4V DC. The device’s SIP-4 package offers a compact footprint, with dimensions measuring 11.68mm in length, 9.7mm in depth, and 6mm in width, ideal for PCB mounting.
This converter has an isolation voltage of 1.5kV DC, ensuring safe electrical separation between input and output circuits, critical in many industrial environments.
TRACOPOWER’s TBA 1-2419 operates efficiently with an approximate efficiency of 80% and supports a robust operating temperature range from -40°C to +85°C without output derating, making it suitable for harsh conditions.
Integrated continuous short circuit protection enhances device safety and longevity. The high MTBF of 2,000,000 hours demonstrates its reliability for long-term use. This DC/DC converter is ideal for power supply circuits in industrial, laboratory, instrumentation, and electronic control systems.
Its unregulated output is suitable for applications requiring low-noise, isolated power conversion on printed circuit boards. The SIP-4 form factor facilitates space-saving design in compact electronics. The product is manufactured in China and meets industry standards for basic safety and performance, although it does not list specific certifications.
Environmentally, the converter is RoHS compliant, contributing towards reduced hazardous substance usage in electrical and electronic equipment. For component engineers and designers, the TBA 1-2419 represents a cost-effective, durable solution for powering low current DC circuits with isolation and compact size.
Browse more options for DC/DC Converters and power supply components on EnvMart for your next industrial or electronic project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 21.6V to 26.4V DC.
It provides an output voltage of 9V DC at a current of 110mA.
The efficiency of this converter is approximately 80%.
The dimensions of the SIP-4 package are 11.68mm in length, 9.7mm in depth, and 6mm in width.
The isolation voltage is rated at 1.5kV DC, providing safe electrical separation between input and output circuits.
This converter operates over a temperature range from -40°C to +85°C without derating.
It is designed for PCB mounting, making it suitable for space-constrained applications.
The MTBF is rated at 2,000,000 hours, indicating its reliability for long-term use.
Yes, it features integrated continuous short circuit protection for enhanced safety.
This model is suitable for industrial, laboratory, instrumentation, and electronic control systems requiring low-noise, isolated power conversion.
Yes, it is RoHS compliant, contributing to reduced hazardous substance usage in electrical and electronic equipment.
The maximum output power of this model is 1 Watt.
