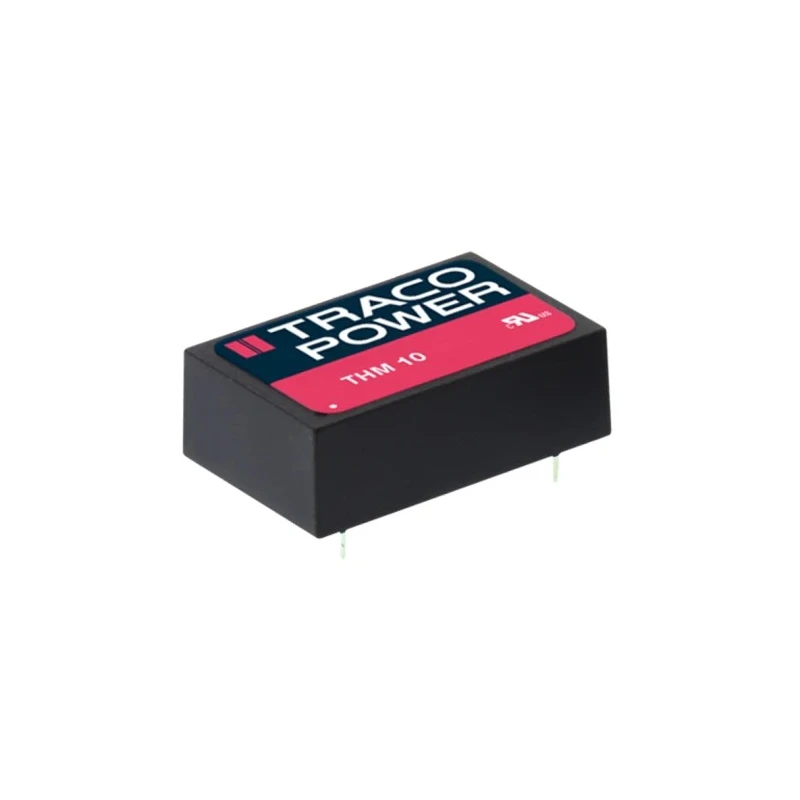

TRACOPOWER 10 Watt Medical Grade DC/DC Converter 24V DC Output, 416mA, 9-18V Input, PCB Mount THM 10-1215

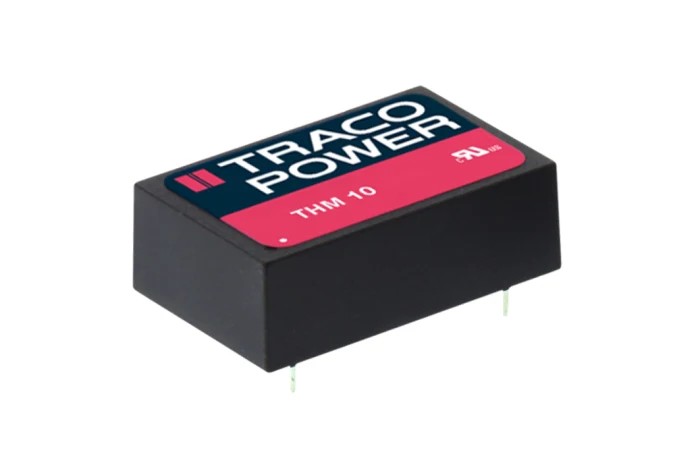

TRACOPOWER THM 10-1215 is a specialized 10 Watt DC/DC converter designed for medical and industrial applications requiring high safety and reliability standards. It features a 24 Volt DC output with a stable output current of 416mA and supports a flexible input voltage range from 9 to 18 Volts DC, making it versatile for various power supply environments. The unit is housed in a DIP plastic package optimized for printed circuit board mounting.

The converter provides reinforced galvanic isolation of 5000 VAC RMS to ensure patient protection and meet stringent medical safety requirements, certified according to IEC/EN/ES 60601-1 3rd edition for 2x MOPP (Means of Patient Protection). The device's low leakage current, less than 2 µA, further enhances safety for sensitive electronic and medical devices.

Its operational durability includes a wide ambient temperature range from -40°C up to 90°C, allowing reliable performance in harsh environmental conditions and altitudes up to 5000 meters. The compact form factor with dimensions 31.8 mm (length) x 20.3 mm (width) x 10.2 mm (depth) facilitates easy integration into compact system designs.

With an efficiency of up to 89%, the converter minimizes energy loss and heat generation, contributing to overall system reliability and efficiency. The product complies with ISO 13485 quality management system standards and includes an ISO 14971 risk management file, ensuring comprehensive development and manufacturing quality control.

This converter is ideal for medical equipment, transportation systems, control and measurement instruments, and IGBT driver applications, providing stable power conversion with high safety margins. The output voltage is adjustable over a range from -10% to +20% of nominal output voltage, offering design flexibility for varied application requirements.

The TRACOPOWER THM 10-1215 is backed by a 5-year warranty, assuring long-term reliability and performance. The converter provides reinforced isolation rated at 5000 VAC RMS for safety. It operates efficiently with up to 89% efficiency in a wide temperature range from -40 °C to 90 °C.

Designed to comply with IEC/EN/ES 60601-1 3rd edition standards for medical safety. It has a mean time between failure (MTBF) of approximately 3.85 million hours. The compact DIP package measures 31.8 mm in length, 20.3 mm in width, and 10.2 mm in depth.

The product is suitable for medical, transportation, control, measurement, and industrial applications. It features a low leakage current of less than 2 µA for patient safety. The output voltage range can be adjusted between -10% to +20% of the nominal 24V output.

The converter is rated for 1 output and offers a 2:1 input voltage ratio. It includes a 5-year product warranty for reliability assurance. Explore more products in the DC/DC Converter category at EnvMart for comprehensive solutions in power supply and voltage conversion needs.
