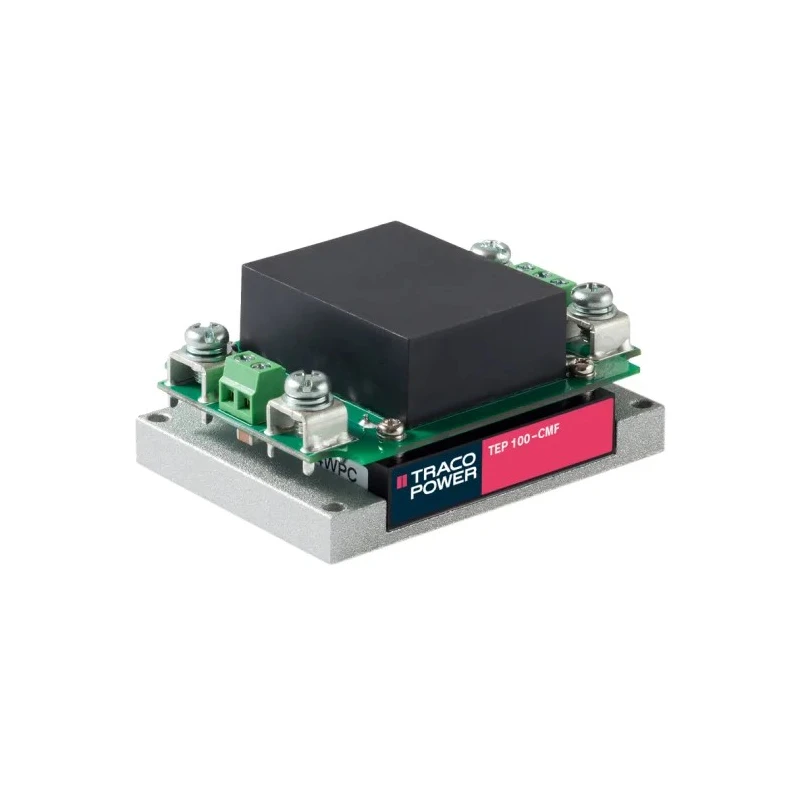

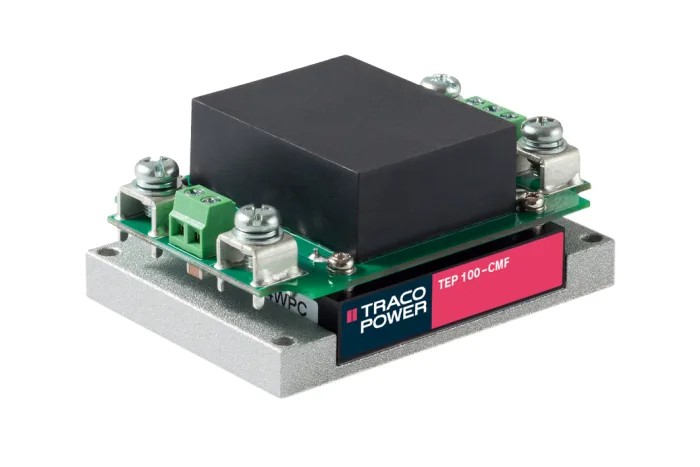

TRACOPOWER 100W Single Output Regulated Isolated DC/DC Converter 36V Input 2.1A, 18V Min Input, 38.4V TEP 100-2418-CMF

TRACOPOWER TEP 100-2418-CMF is a 100W single output regulated isolated DC/DC converter designed for reliable power supply with high performance in industrial and commercial electronics applications.

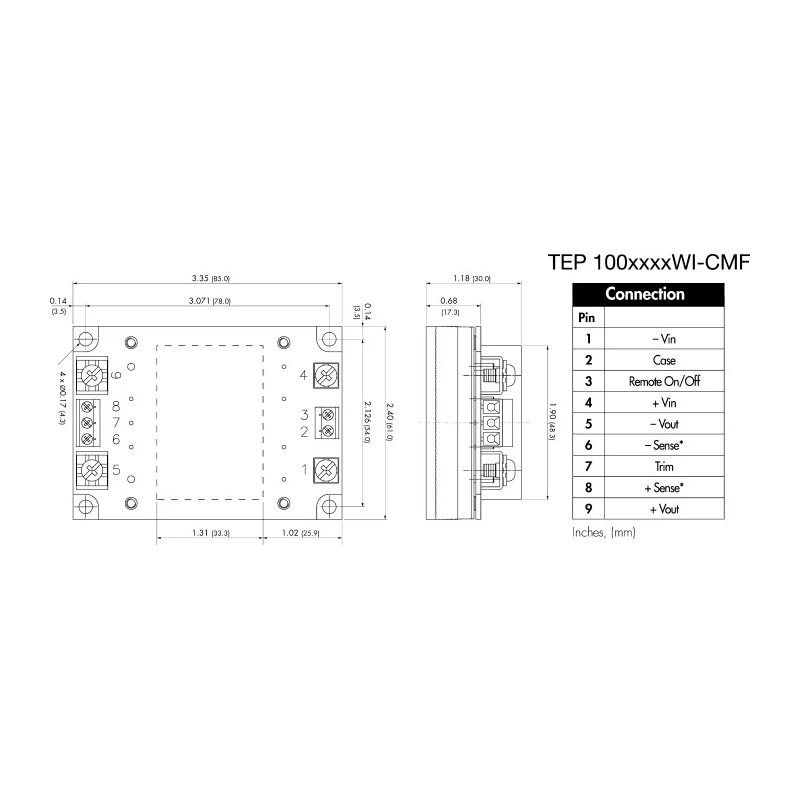

This converter operates within a wide input voltage range of 18V to 36V with a 2:1 input ratio, delivering a steady 38.4V output at 2.1A current. Its rugged sealed metal enclosure equipped with a chassis mount adaptor and EMI filter ensures robust installation and minimal interference.

The device supports output voltage trimming and remote On/Off capability, providing flexibility in various system integrations. It offers comprehensive protection features including over temperature, over voltage, short circuit, reverse input voltage protection, and under voltage lockout, ensuring safe and stable operation.

Its high 92% efficiency enables natural convection cooling up to 60°C without power derating, making it suitable for demanding industrial environments with operating temperatures from -40°C to 75°C. The product also complies with UL 60950-1, IEC 60950-1, and EN 60950-1 standards for safety.

Typical applications include industrial systems where mounting on PCB is impractical, requiring a chassis mount solution with reliable isolation voltage of 2.25kV and five output outputs. MTBF is rated at 331,000 hours per MIL-HDBK-217F at 25°C.

This DC/DC converter supports a wide 2:1 input voltage range from 18V to 36V. It provides a regulated output voltage of 38.4V with 2.1A output current capacity. The unit features a rugged sealed metal case with chassis mount adaptor and EMI filter for industrial use.

Operating temperature range is from -40°C to +75°C, suitable for harsh environments. Over temperature, over voltage, short circuit, and reverse polarity protections enhance reliability. High efficiency of 92% allows natural convection cooling without derating power up to 60°C.

Output voltage can be trimmed and remote On/Off control is supported. Ideal for industrial applications where PCB mounting is not feasible. The product is manufactured in Taiwan, Province of China.

This robust converter from TRACOPOWER is suitable for power supply tasks in industrial, manufacturing, telecommunications, and automation systems. Explore EnvMart’s comprehensive range of DC/DC Converters for efficient electrical power management and system integration.
