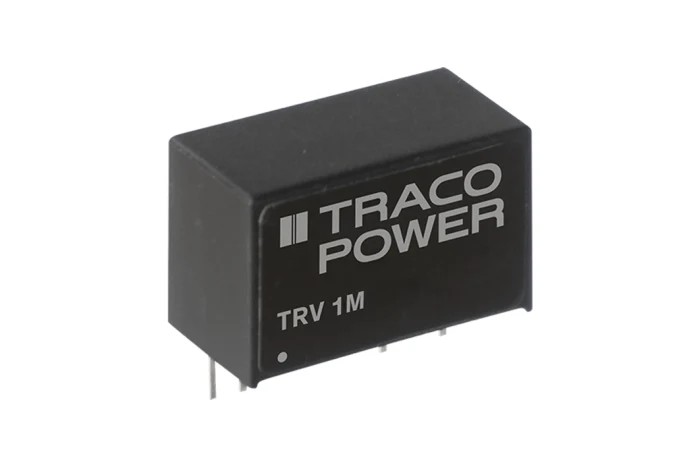

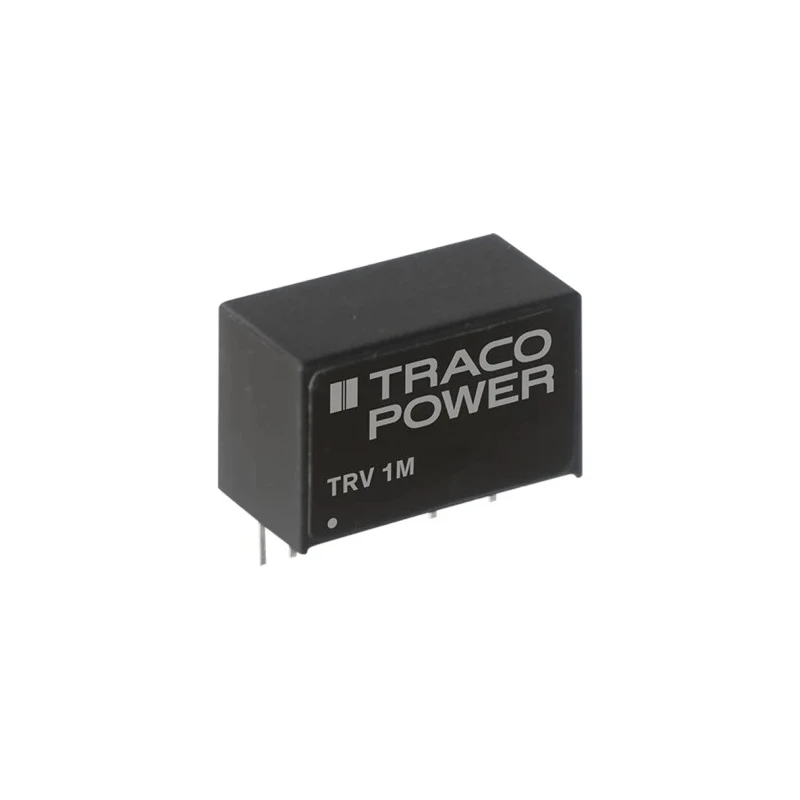

TRACOPOWER 1 Watt SIP-9 DC/DC Converter 12V dc Output 83mA, 12-18V dc Input Through Hole Package TRV 1-1512M
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TRV DC/DC Converter, 12V dc/ 83 mA, 18V |
| Brand | TRACOPOWER |
| Efficiency | 0.84% |
| Length | 19.6mm |
| Model | TRV 1-1512M |
| Depth | 12.5mm |
| Gross Weight | 4.8g |
| Width | 9.8mm |
| Mount Type | Through Hole |
| Series | TRV |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 19360000h |
| Number of outputs | 1 |
| Ripple and Noise | 100mV Pk-Pk |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 18V dc |
| Standards/Approvals | IEC, REACH, RoHS, UL, EN |
| Minimum Input Voltage | 12V dc |
| Number of Pins | 5 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 83mA |
| Output Voltage Adjustment Range | 12 V dc |
| Isolation Voltage | 5kV |
Key Features
- Provides reinforced isolation voltage of 5000 VAC for safety.
- Semi-regulated output ensures good voltage stability.
- Low leakage current under 2 μA suitable for medical and industrial use.
- Operating temperature range from -40 °C to 85 °C without derating.
- Continuous short circuit protection enhances reliability.
- Compact size with dimensions 19.6mm length, 12.5mm depth, and 9.8mm width.
- Achieves efficiency up to 84% for energy savings.
- Complies with IEC, REACH, RoHS, UL, and EN standards.
Product Description
TRACOPOWER TRV 1-1512M is a 1 Watt DC/DC converter designed in a SIP-9 through-hole package providing 12V dc output at 83 mA. It operates with an input voltage range of 12V to 18V dc, featuring reinforced isolation voltage of 5000 VAC that meets stringent medical and industrial safety standards.
This converter is semi-regulated with a ripple and noise specification of 100mV peak-to-peak, ensuring stable voltage output for sensitive electronics. Its low leakage current of less than 2 microamperes makes it particularly suitable for medical device circuits and other applications requiring minimal interference.
The TRV 1-1512M supports continuous short circuit protection to prevent damage under fault conditions. It is designed to operate reliably in harsh environments, with an operating temperature range from -40 degrees Celsius to 85 degrees Celsius without any derating of performance.
Physical dimensions include a length of 19.6 mm, depth of 12.5 mm, and width of 9.8 mm, making it suitable for compact circuit board designs. The converter achieves up to 84% efficiency, supporting energy-saving measures in industrial and instrumentation systems.
Compliance to IEC, REACH, RoHS, UL, and EN standards ensures high quality and safety certification compliance. The product is manufactured in Taiwan, Province Of China, and comes with a 5-year warranty for dependable long-term operation.
Reinforced 5000 VAC isolation voltage. Semi-regulated output voltage with stable operation. Low leakage current less than 2 microamps. Short circuit protection for enhanced safety. Compact SIP-9 package through-hole mount.
Wide operating temperature range -40°C to 85°C. Compliance with IEC, RoHS, UL, REACH, and EN standards. Efficiency of approximately 84%. Ideal for medical, industrial, and instrumentation applications.
This TRACOPOWER TRV DC/DC Converter is an excellent choice for those seeking a reliable, low-power isolated converter in demanding industrial, medical, and electronic instrumentation environments. Explore more DC/DC Converters to find components tailored to your power supply needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TRACOPOWER TRV 1-1512M provides a 12V dc output at 83 mA.
It operates with an input voltage range of 12V to 18V dc.
The physical dimensions of this model are 19.6 mm in length, 12.5 mm in depth, and 9.8 mm in width.
This DC/DC converter achieves an efficiency of up to 84%.
It complies with IEC, REACH, RoHS, UL, and EN standards.
The TRV 1-1512M features a reinforced isolation voltage of 5000 VAC.
It can operate reliably in temperatures ranging from -40 °C to 85 °C without derating.
Yes, it includes continuous short circuit protection to enhance reliability.
The ripple and noise specification is 100 mV peak-to-peak.
It is designed for through-hole mounting.
This model has one output.
The gross weight of this unit is 4.8 grams.
