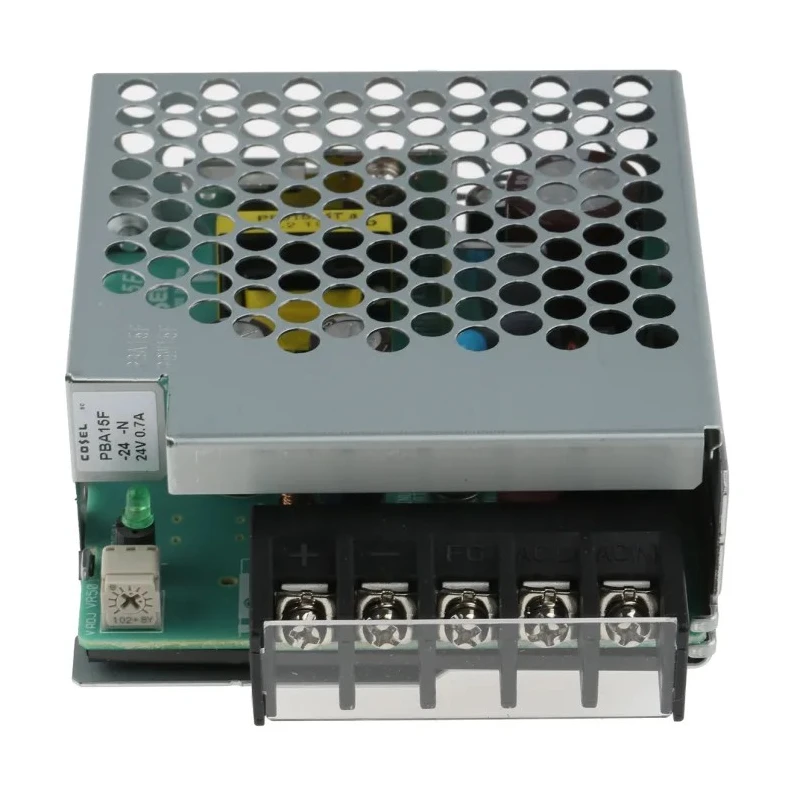

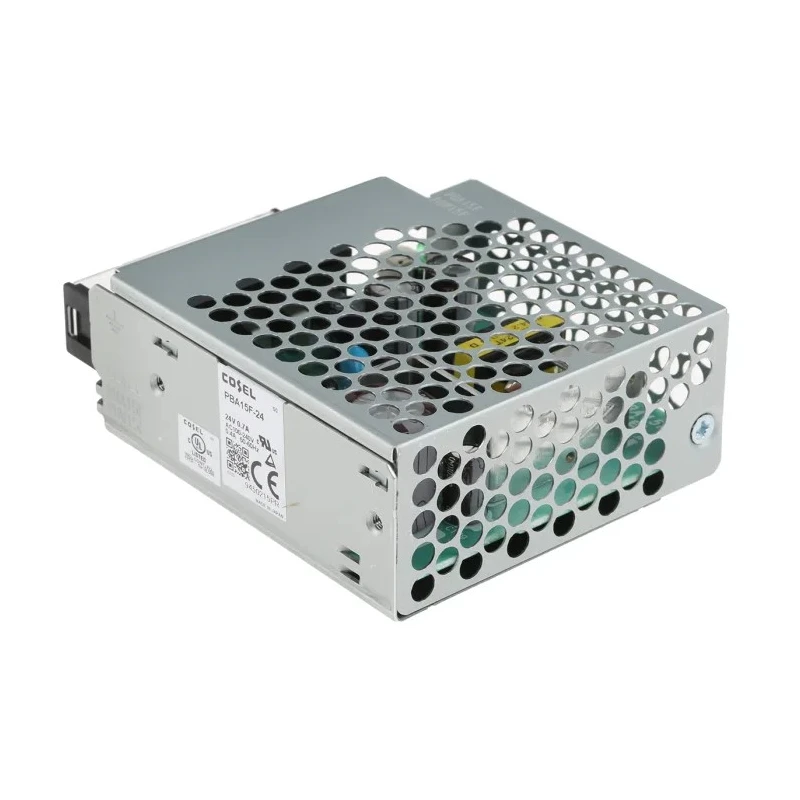

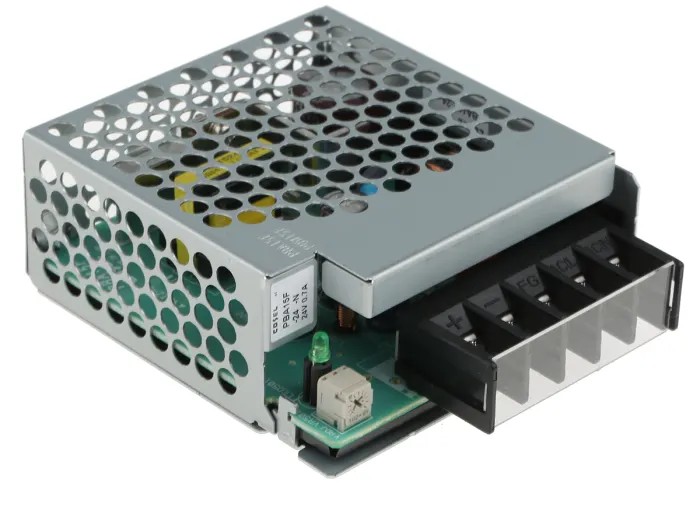

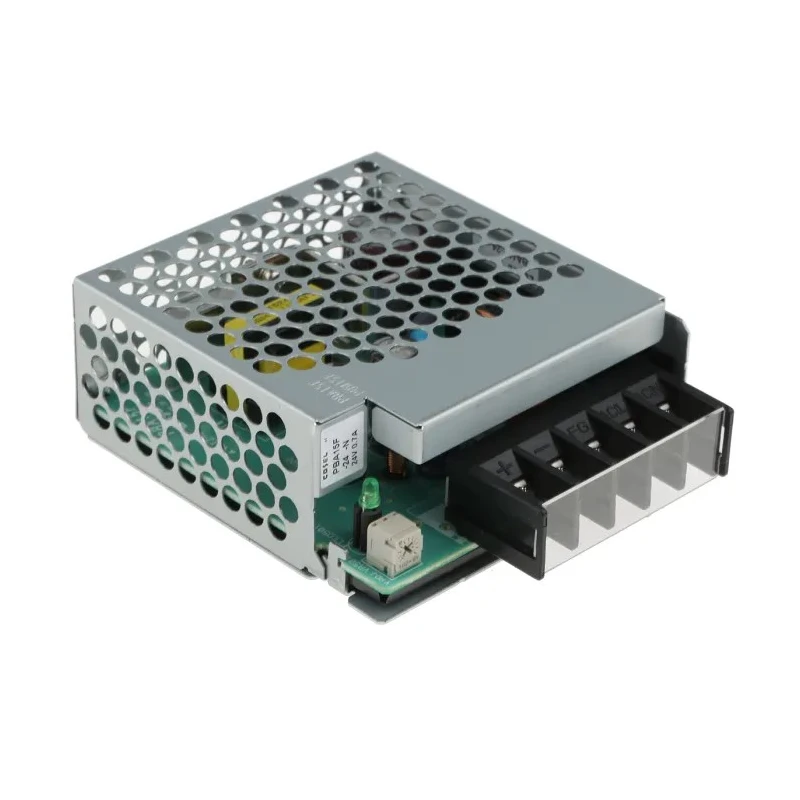

Cosel Chassis Mount Switching Power Supply 24V DC 16.8W 700mA 85-264VAC Input PBA15F-24-N

Free Delivery in India | Lowest Global Shipping Charges

Cosel Chassis Mount Switching Power Supply 24V DC 16.8W 700mA 85-264VAC Input PBA15F-24-N

Name: Cosel Chassis Mount Switching Power Supply 24V DC 16.8W 700mA 85-264VAC Input PBA15F-24-N
Brand: Cosel
SKU: 197641



Category Power Supplies Brand Cosel Condition New

Specifications

Country of Origin	Japan
Brand	Cosel
Power	16.8W
Efficiency	78%
Length	101.5mm
Model	PBA15F-24-N
Depth	78mm
Gross Weight	200g
Width	34.5mm
Mount Type	Chassis
Series	PBA15F
Maximum Operating Temperature	71°C
Minimum Operating Temperature	-10°C
Number of outputs	1
Maximum Input Voltage	370V dc
Standards/Approvals	RoHS, UL, CE
Maximum Output Voltage	24V dc
SMPS Output Current	700mA
Minimum Input Voltage	110, 85V dc

Key Features

Compact and lightweight design suitable for embedded applications.
Universal input voltage range from 85VAC to 264VAC and 120VDC to 370VDC.
Provides a stable output current of 700mA at 24V DC.
Features overcurrent and overvoltage protection for safety and reliability.
Convection cooled with ventilated cover for efficient heat dissipation.
Meets RoHS, UL, and CE standards ensuring quality and compliance.
Operating temperature range from -10°C to 71°C for versatile environments.
Designed for industrial use including automated machinery and semiconductor equipment.

Product Description

Cosel PBA15F-24-N is a high-efficiency chassis-mounted switching power supply providing a 24V DC output with 16.8W power and up to 700mA current. Engineered for compact embedded switch-mode power applications, it offers a universal input rating from 85VAC to 264VAC and 120VDC to 370VDC, facilitating flexible power source connectivity.

This power supply is 35% to 65% smaller in volume compared to similar products, making it suitable for automated machinery, semiconductor equipment, and other industrial or laboratory settings. Its compact chassis mount design includes a ventilated cover to promote convection cooling, enhancing the reliability during continuous operation.

Equipped with protective features including overcurrent and overvoltage protection, the unit ensures operational safety. It complies with various standards such as RoHS, UL 60950-1, CE, and FCC Part 15 Class B (with additional EMI filters for some models) that support its use in manufacturing and commercial environments.

Operating effectively between -10°C and 71°C, the PBA15F-24-N supports reliable functionality across diverse temperature ranges. Its efficiency rating of 78% contributes to energy-saving performance.

Compact and lightweight switch mode power supply for embedded applications. Universal input voltage range ensuring wide compatibility. Reliable single 24V DC output at 16.8W and 700mA current. Overcurrent and overvoltage protection enhance device security.

Convection cooling with ventilated cover reduces thermal stress. RoHS, UL, CE certifications ascertain compliance and safety. Supports industrial environments including semiconductor and automation equipment.

Cosel power supplies are designed for demanding conditions in industrial, laboratory, and manufacturing sectors, making the PBA15F-24-N a dependable component in power management systems. Explore EnvMart's comprehensive range of Power Supplies for compatible equipment solutions and accessories.
