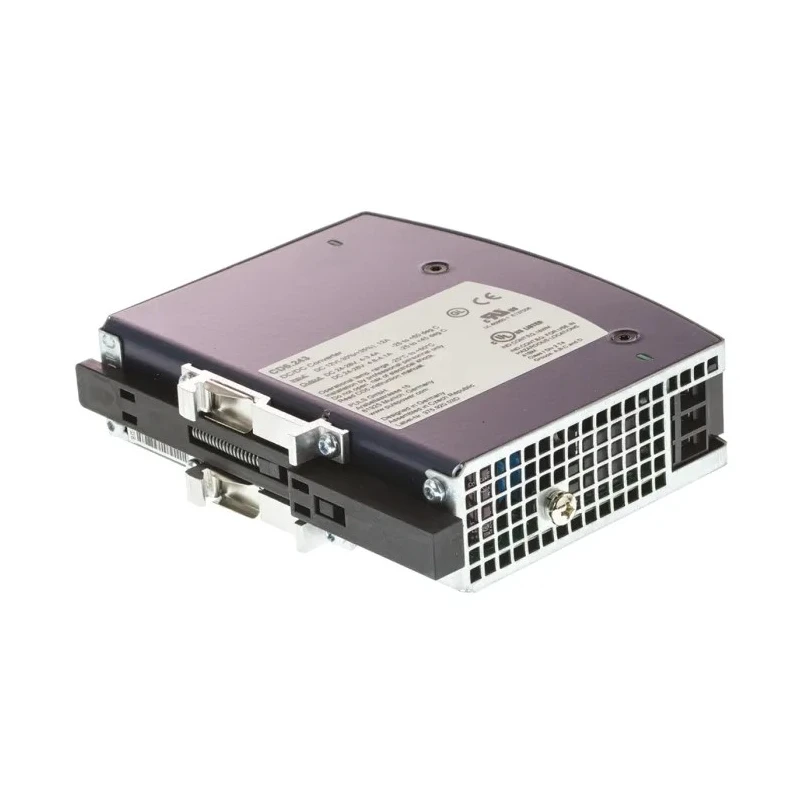

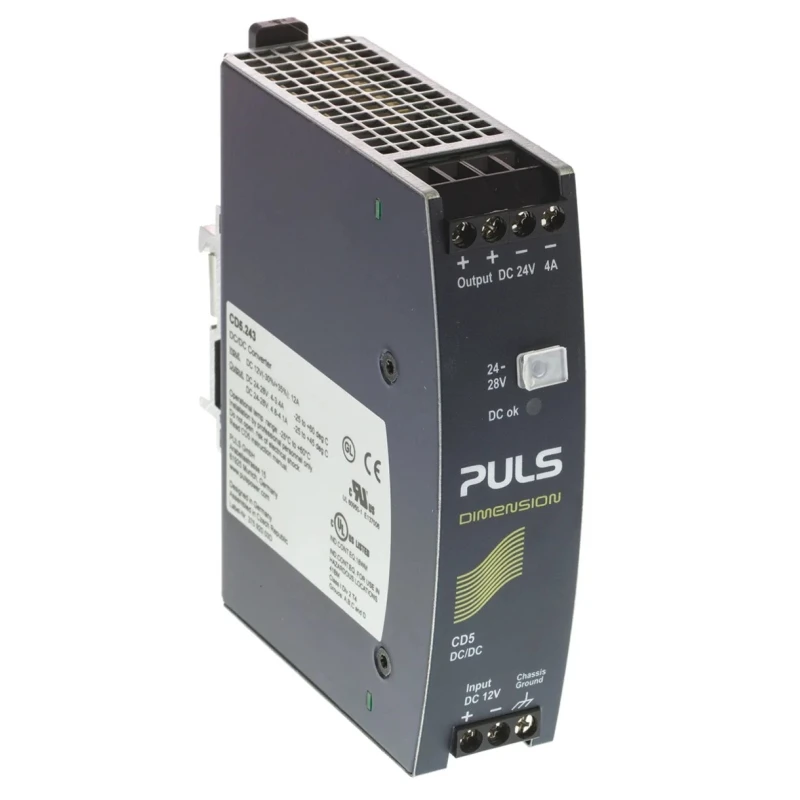

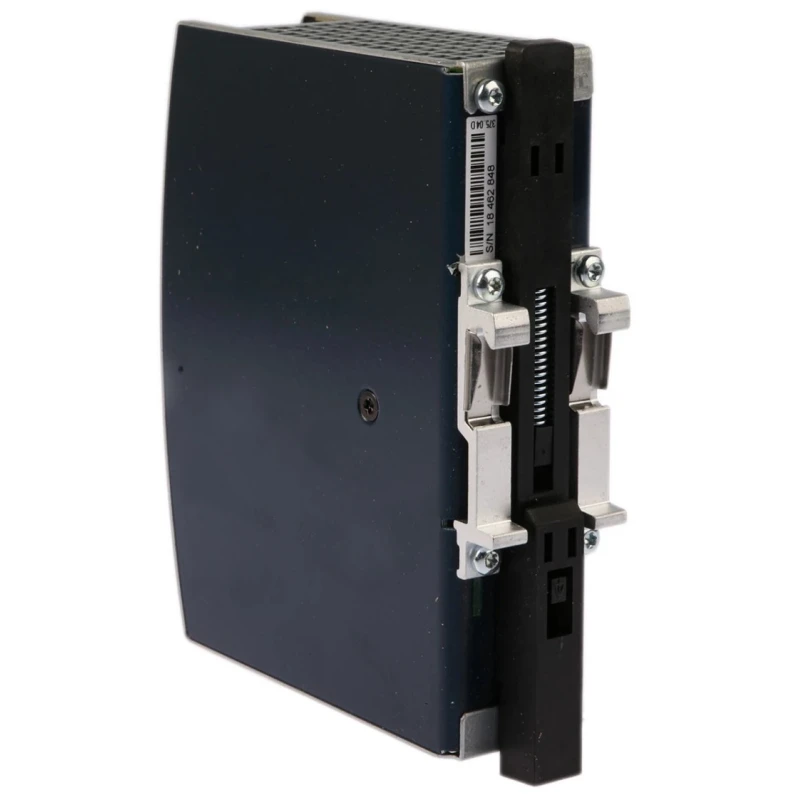

PULS DIMENSION-CD DC/DC Converter 24V DC 4A 16.2V/12V DC Input DIN Rail Mount 96W CD5.243
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters PULS DIMENSION-CD DC/DC Converter, 24V dc/ 4 A, 16 |
| Brand | PULS |
| Efficiency | 87.7% |
| Length | 124mm |
| Model | CD5.243 |
| Depth | 102mm |
| Gross Weight | 435g |
| Width | 32mm |
| Mount Type | DIN Rail |
| Series | DIMENSION-CD |
| Maximum Operating Temperature | 70°C |
| Number of outputs | 1 |
| Ripple and Noise | 50mV Pk-Pk |
| Maximum Output Power | 96W |
| Maximum Input Voltage | 16.2V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 12V dc |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 4A |
| Output Voltage Adjustment Range | 24 to 28 V |
| Isolation Voltage | 1.5kV dc |
Key Features
- Compact design with 96W maximum output power.
- Supports 24 to 28V output voltage adjustment range.
- High efficiency of 87.7% ensuring low power loss.
- Includes isolation voltage of 1.5kV DC for safe operation.
- Ripple and noise is limited to 50mV peak-to-peak.
- Operates reliably between minimum and maximum temperatures of 70°C.
- Equipped with protection against reversed polarity and soft start function.
- Suitable for automotive, machine building, material handling, and building automation.
Product Description
PULS CD5.243 is a DIMENSION-CD series DC/DC Converter designed for industrial and commercial applications requiring 24V DC output at 4A current. It accepts input voltages ranging from 12V DC to 16.2V DC, and features a compact DIN rail mount housing measuring 124 mm length, 32 mm width, and 102 mm depth.
This converter delivers a maximum output power of 96W with an electrical isolation of 1.5kV DC between input and output, ensuring enhanced safety and noise immunity. The output voltage can be adjusted between 24V and 28V to meet specific system requirements.
The unit operates with an efficiency of 87.7%, minimizing power loss and heat generation, and supports a maximum operating temperature of 70°C. Ripple and noise are tightly controlled at 50mV peak-to-peak, providing stable and clean output voltage for sensitive electronics.
The converter includes built-in features such as reversed voltage protection and soft start to prolong device and battery life. It is ideal for demanding industrial environments including automotive systems, machine building, material handling, and building automation tasks.
DIMENSION-CD converters are designed to be robust and compact, making them suitable for confined installation spaces while maintaining excellent performance and reliability. Compact design with 96W maximum output power. Supports 24 to 28V output voltage adjustment range.
High efficiency of 87.7% ensuring low power loss. Includes isolation voltage of 1.5kV DC for safe operation. Ripple and noise is limited to 50mV peak-to-peak. Operates reliably between minimum and maximum temperatures of 70°C.
Equipped with protection against reversed polarity and soft start function. Suitable for automotive, machine building, material handling, and building automation. Robust construction with DIN Rail mount dimensions of 124 x 32 x 102 mm.
It is a new condition product made in China. Explore more DC/DC Converters and power supply products on EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 96W.
It accepts input voltages ranging from 12V DC to 16.2V DC.
The output voltage can be adjusted between 24V and 28V.
This converter operates with an efficiency of 87.7%.
The dimensions are 124 mm in length, 32 mm in width, and 102 mm in depth.
It features an isolation voltage of 1.5kV DC between input and output.
The maximum operating temperature is 70°C.
Ripple and noise are limited to 50mV peak-to-peak.
Yes, it includes protection against reversed polarity and a soft start function.
The gross weight of this model is 435g.
It is designed for DIN rail mounting.
It is suitable for automotive, machine building, material handling, and building automation applications.
