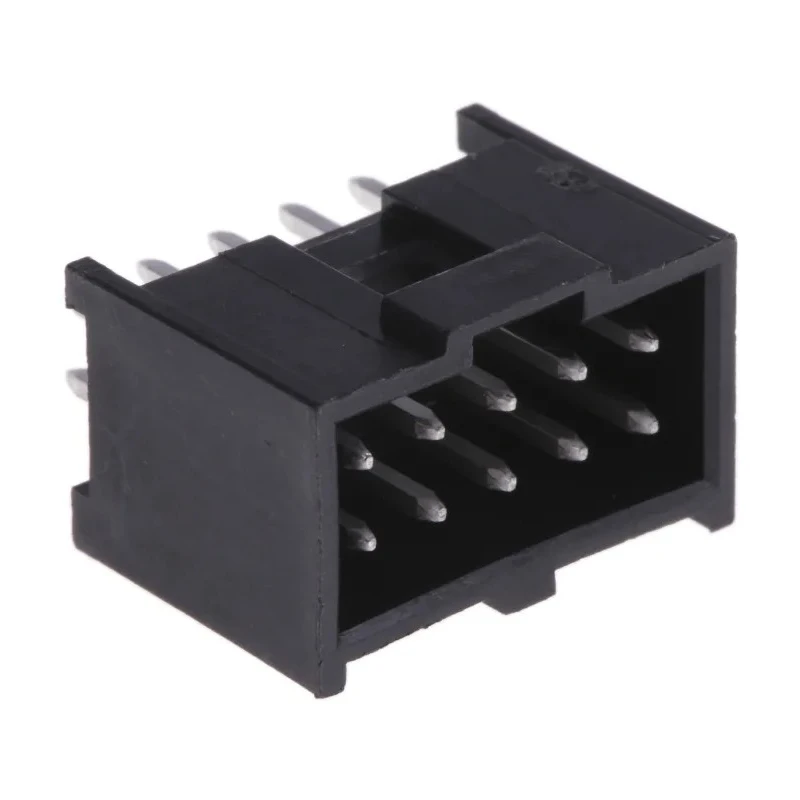

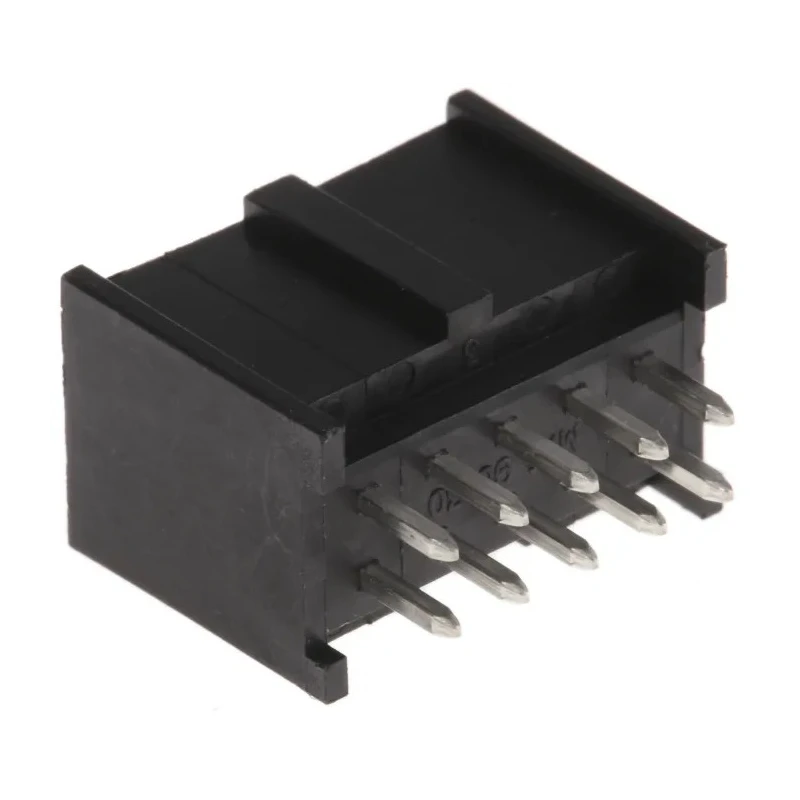

Molex C-Grid III Series Straight Through Hole PCB Header, 10 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 90130-1110
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Molex |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Contact Material | Brass |
| Series | C-Grid III |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.9mm |
Key Features
- Supports a current rating of 3A for efficient power handling.
- Brass contact material with tin plating ensures durability and corrosion resistance.
- Through hole mount type provides strong PCB attachment.
- Operates within -55°C to 125°C temperature range for versatile use.
- Includes a 2.9 mm tail pin length for secure solder connections.
- Rated for 350V voltage providing safe electrical performance.
- Shrouded connector enhances protection and alignment during mating.
- Male contact gender, suitable for locking housings in C-Grid III range.
Product Description
Molex 90130-1110 C-Grid III Series Straight Through Hole PCB Header is a professional-grade connector with 10 contacts arranged in 2 straight rows, featuring a 2.54 mm pitch and shrouded design. Manufactured from brass contacts with tin plating, it supports wire-to-board connections in demanding industrial environments with up to 3A current and 350V voltage.
The through hole mounting style ensures robust PCB attachment, while the male contact gender and 2.9 mm tail pin length facilitate secure soldering. Operating reliably in temperature ranges from -55°C to 125°C, this connector is suited for harsh working conditions.
This product is ideal for electronic, manufacturing, automation, and industrial applications requiring secure, efficient electrical connections and locking housings compatible within the Molex C-Grid III range.
Supports a current rating of 3A for efficient power handling. Brass contact material with tin plating ensures durability and corrosion resistance. Through hole mount type provides strong PCB attachment. Operates within -55°C to 125°C temperature range for versatile use.
Includes a 2.9 mm tail pin length for secure solder connections. Rated for 350V voltage providing safe electrical performance. Shrouded connector enhances protection and alignment during mating. Male contact gender, suitable for locking housings in C-Grid III range.
Designed for high-efficiency electronics manufacturing processes.
This Molex PCB header fulfills the needs of professionals in electronics assembly, power distribution, and connector system design. It supports accurate, reliable wire-to-board connections essential for industrial, laboratory, and commercial electronics applications. Browse our range of Molex connectors and PCB Headers at EnvMart for quality-assured components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 3A for efficient power handling.
It is rated for a voltage of 350V, providing safe electrical performance.
The contacts are arranged with a pitch of 2.54 mm.
This unit features 10 contacts arranged in 2 rows.
It operates reliably within a temperature range of -55°C to 125°C.
The tail pin length is 2.9 mm, facilitating secure solder connections.
It utilizes a through hole mount type, ensuring strong PCB attachment.
The contacts are made of brass with tin plating, ensuring durability and corrosion resistance.
This model has a straight orientation.
It features a male contact gender, suitable for locking housings in the C-Grid III range.
This connector is shrouded, enhancing protection and alignment during mating.
It is ideal for electronic, manufacturing, automation, and industrial applications requiring secure wire-to-board connections.
