| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Model | SN74AHC1G14DCKR |
| Mount Type | Surface |
| Output type | Schmitt Trigger |
| Series | SN74AHC1G14 |
| Input Type | Schmitt Trigger |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-SC70 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Number of Elements per Chip | 1 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | 74AHC |
| Logic Function | Inverter |
| Minimum Supply Voltage | 2V |
| Maximum High Level Output Current | -8mA |
| Maximum Propagation Delay Time @ CL | 19.5ns |
| Maximum Low Level Output Current | 8mA |

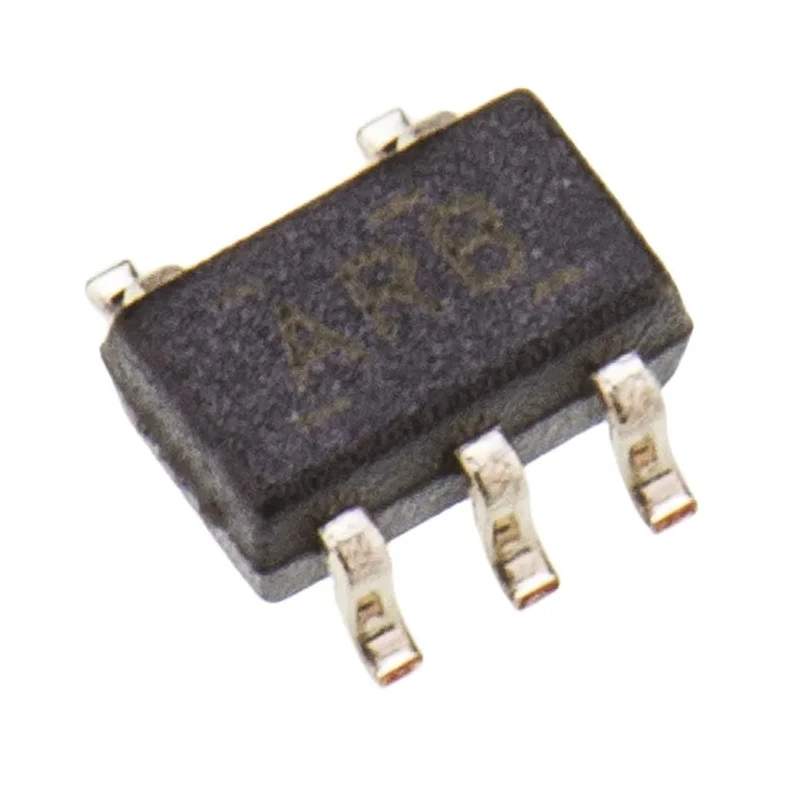

Texas Instruments SN74AHC1G14DCKR is a high-performance Schmitt Trigger Inverter Logic IC designed for applications requiring precise signal conditioning and fast switching speeds. This component features a single inverter element with both input and output featuring Schmitt trigger characteristics, which improves noise immunity and signal stability in digital circuits.
The device operates over a wide supply voltage range of 2V to 5.5V, and supports a broad operating temperature range from -40°C to 125°C, making it ideal for demanding industrial, electronic, and embedded system environments. Its compact 5-pin SOT-SC70 surface mount package supports efficient space-saving PCB layouts.
With a maximum propagation delay time of 19.5 nanoseconds, this inverter IC offers rapid response times necessary for high-speed logic applications. The maximum high-level and low-level output currents are ±8mA, facilitating robust logic signal drive capacity while maintaining energy efficiency.
The SN74AHC1G14DCKR complies with RoHS environmental standards, ensuring the component adheres to strict substance regulations.
This logic IC is commonly employed in industrial automation, telecommunications, instrumentation, and digital signal processing circuits where stable inverter operation coupled with noise immunity is critical.
Single inverter with Schmitt trigger input/output for stable logic signals. Wide supply voltage (2 - 5.5V) supports various digital logic levels. Compact 5-pin SOT-SC70 package for optimized PCB real estate. Fast switching with 19.5 ns maximum propagation delay.
Wide temperature range (-40°C to 125°C) for harsh environments. Output current ±8mA to drive subsequent stages effectively. RoHS compliant for environmental safety. Part of the 74AHC logic family for broad compatibility.
