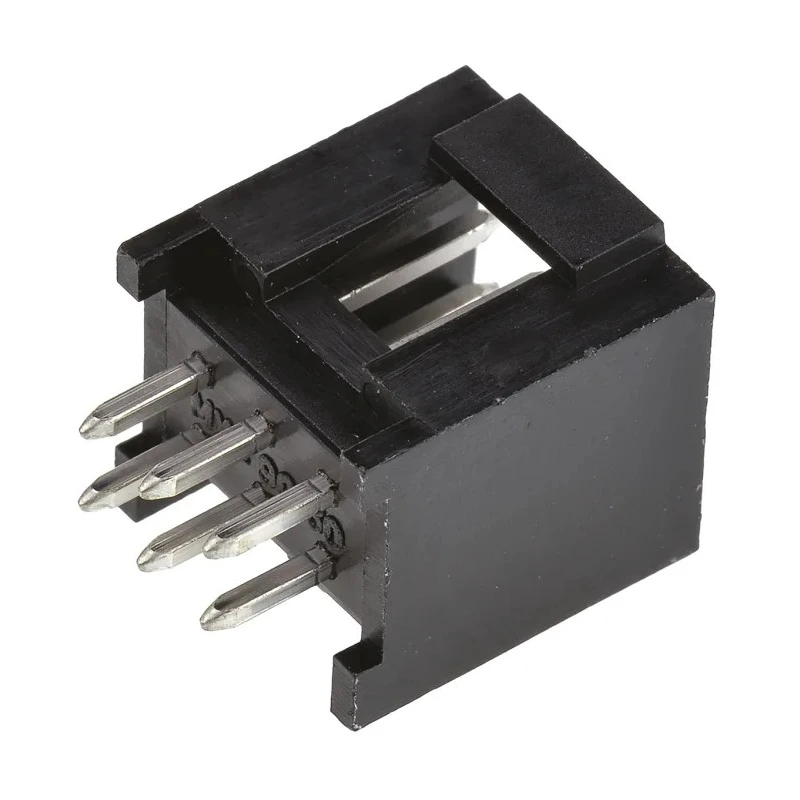

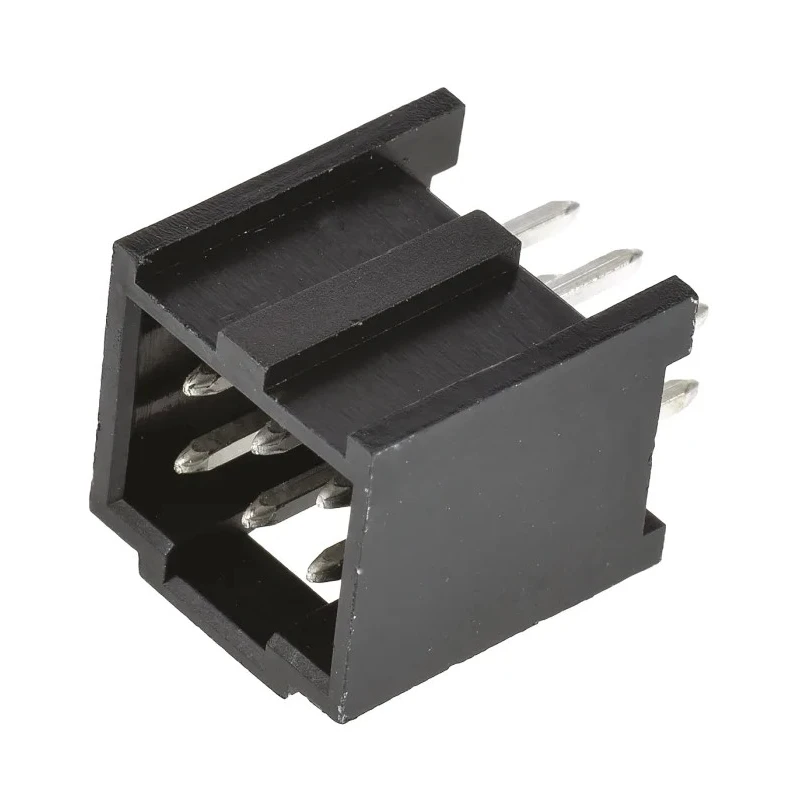

Molex C-Grid III Series Straight Through Hole PCB Header, 6 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 90130-1106
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Molex |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Contact Material | Brass |
| Series | C-Grid III |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.9mm |
Key Features
- The connector is designed for through-hole mounting on PCBs.
- Contact material is brass with tin plating for reliable electrical performance.
- Suitable for wire-to-board connector system applications.
- Rated for a maximum current of 3A and voltage of 350V.
- Operates in temperatures from -55°C to 125°C ensuring durability.
- Includes a tail pin length of 2.9 mm for secure soldering.
- This header is a straight male contact type with shrouded housing to prevent misalignment.
- Compatible with locking housings in the Molex C-Grid III range.
Product Description
Molex 90130-1106 is a C-Grid III series straight through hole PCB header with 6 contacts arranged in 2 rows, featuring a 2.54 mm pitch. This shrouded male connector is suitable for wire-to-board applications requiring secure and reliable electrical connections in industrial and commercial electronics.
The component is constructed with brass contacts plated with tin, providing excellent conductivity and corrosion resistance. The straight locking header design is compatible with Molex locking housings and suited for applications requiring durable and precise mating connectors.
Operating temperature ranges from -55°C to 125°C accommodate harsh environmental conditions, while electrical ratings include a 3A current capacity and 350V voltage rating. The tail pin length of 2.9 mm facilitates robust solder termination to printed circuit boards.
This PCB header is ideal for use in manufacturing, industrial controls, electronic instrumentation, and other demanding electrical assemblies where reliable connectivity is essential.
The connector supports a wire-to-board connection system ensuring easy assembly. Brass contacts with tin plating ensure corrosion resistance and conductivity. Shrouded design prevents connector damage and alignment errors.
Through-hole mount type allows mechanical strength and stable board attachment. Meets industrial grade standards for temperature and electrical ratings. Available as a pack to aid efficient production processes and reduce assembly time in electronics manufacturing.
Explore more Molex electronic connectors and PCB Headers in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this PCB header is 3A.
This connector has a voltage rating of 350V.
The pitch of the contacts is 2.54 mm.
It operates within a temperature range of -55°C to 125°C.
This header features 6 contacts arranged in 2 rows.
This connector is designed for through-hole mounting on PCBs.
The contacts are made of brass with tin plating.
The tail pin length is 2.9 mm, facilitating secure soldering.
Yes, it is compatible with locking housings in the Molex C-Grid III range.
It supports a wire-to-board connector system.
The orientation of this connector is straight.
The country of origin for this product is India.
