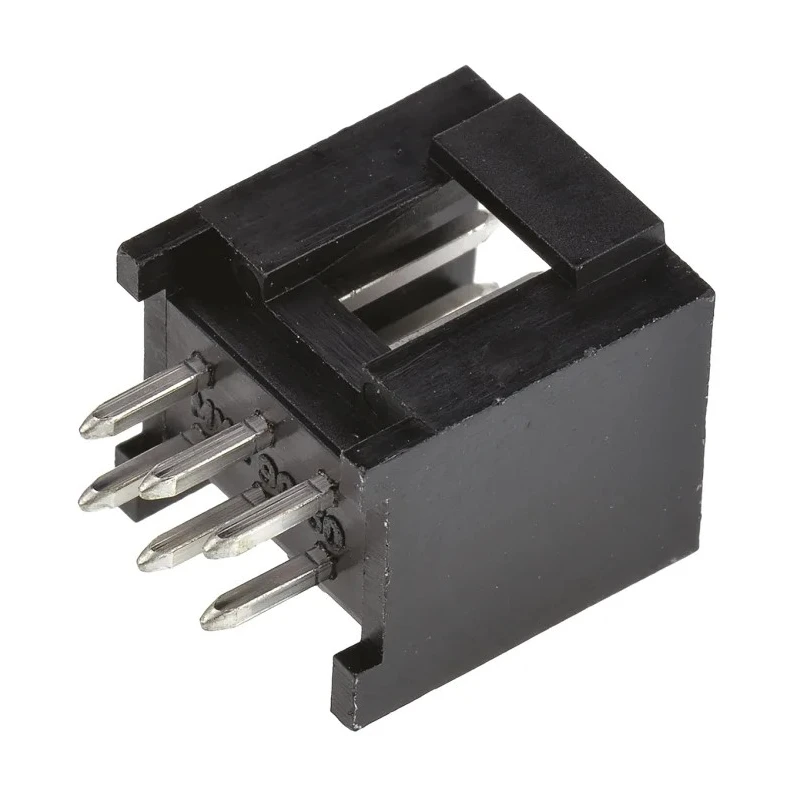

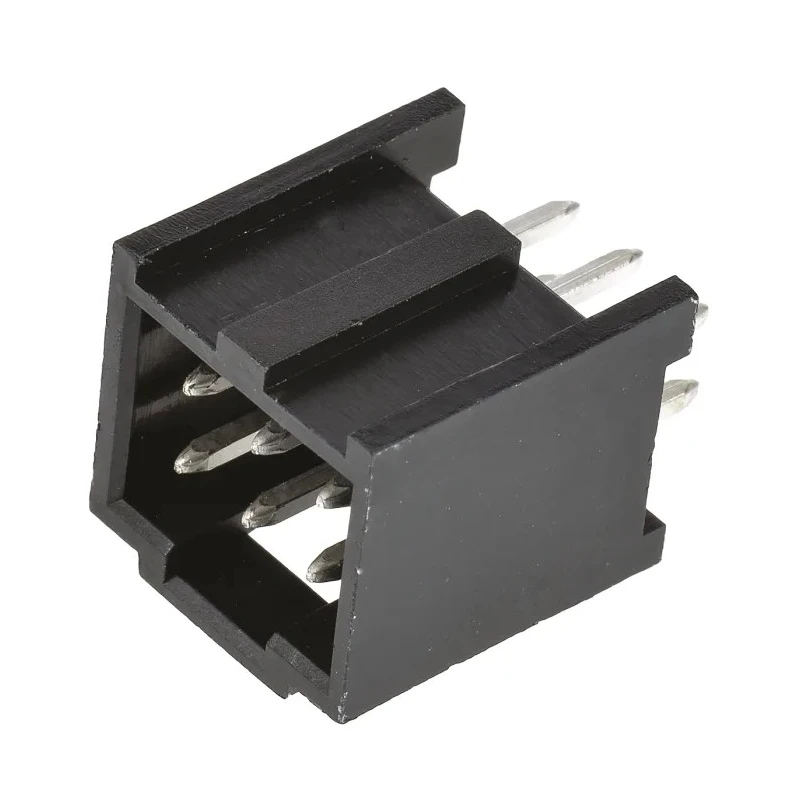

Molex C-Grid III Series Straight Through Hole PCB Header, 6 Contact(s), 2.54 mm Pitch, 2 Row, Shrouded 90130-1106
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Molex |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Contact Material | Brass |
| Series | C-Grid III |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.9mm |
Key Features
- Constructed with brass contacts plated with tin for reliable conductivity.
- Designed for through-hole mount type with straight orientation.
- Operates within a temperature range of -55°C to 125°C.
- Rated for a voltage of 350V and current of 3A.
- Termination type is solder with male contact gender and 2.9 mm tail pin length.
- Shrouded header enhances connector safety and stability.
- Compatible with wire-to-board connector systems.
- Ideal for reliable PCB connections in electronic applications.
Product Description
Molex 90130-1106 C-Grid III Series Straight Through Hole PCB Header is designed for high reliability in electronic assemblies requiring 6 contacts arranged in 2 rows with a 2.54 mm pitch. This shrouded connector supports secure connections in a wire-to-board system and features a brass contact material with tin plating to ensure optimal conductivity.
Operating voltage is rated up to 350V with a current capacity of 3A, suitable for diverse electronics applications. The header's straight orientation and through-hole mounting type facilitate easy PCB integration while maintaining mechanical stability.
It withstands operating temperatures from -55°C to 125°C, suitable for both industrial and commercial environments. The solder termination and male contact gender enable reliable solder connections with a tail pin length of 2.9 mm, contributing to assembly robustness.
The shrouded design protects the contacts from accidental damage and improves connector locking when mated with corresponding housings, enhancing durability and safety in demanding applications.
Constructed with brass contacts plated with tin for reliable conductivity. Designed for through-hole mount type with straight orientation. Operates within a temperature range of -55°C to 125°C. Rated for a voltage of 350V and current of 3A.
Termination type is solder with male contact gender and 2.9 mm tail pin length. Shrouded header enhances connector safety and stability. Compatible with wire-to-board connector systems. Ideal for reliable PCB connections in electronic applications.
This Molex header is commonly used in electronics manufacturing, industrial equipment, automation systems, and various PCB assemblies requiring durable and precise connector solutions. Choose this model for assured performance and compliance with industry standards.
Explore more PCB Header products from Molex and related connector components at EnvMart to meet your electronic assembly needs.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this PCB header is 350V.
This model has a current capacity of 3A.
The contacts in this header are arranged with a pitch of 2.54 mm.
It operates within a temperature range of -55°C to 125°C.
This PCB header features 6 contacts arranged in 2 rows.
The termination type of this model is solder with male contact gender.
The header is constructed with brass contacts plated with tin for reliable conductivity.
Yes, it is compatible with wire-to-board connector systems.
The tail pin length is 2.9 mm.
This model supports through-hole mounting.
The design orientation of this header is straight.
The country of origin for this product is India.
